Ruud rxbh-1724a10j-b Electric Heater Kit 10kw 208-240V

Product Description

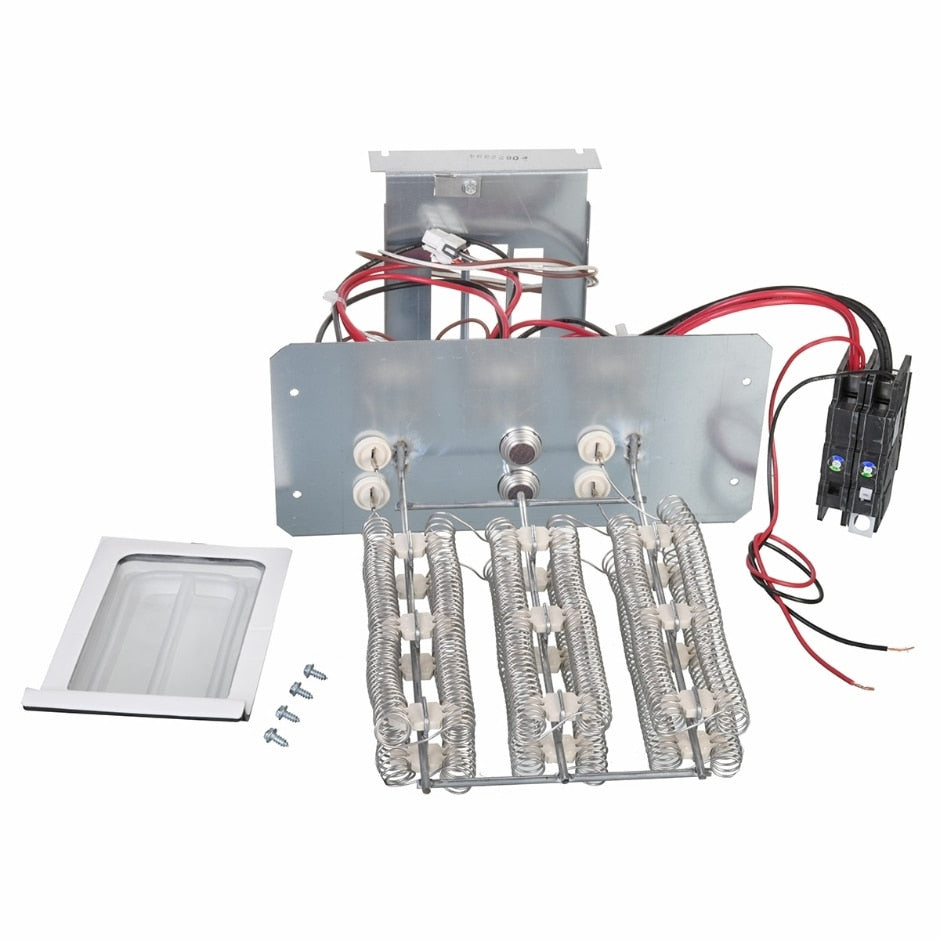

The RUUD rxbh-1724a10j-b is an electric heater kit rated at 10 kilowatts for use in residential and light commercial air handling units. It operates on 208-240 volts, single phase, 60 Hz power and includes a built-in breaker for over-current protection, eliminating the need for a separate disconnect in many installations. The kit also ships with a Smart Plug, which simplifies field wiring connections. Nickel chromium heat elements deliver consistent, long-service heating output. This kit is part of the RXBH series, engineered for direct integration into compatible air handlers as a factory-style add-on or field-installed electric heat section.

The rxbh-1724a10j-b is suited for residential and light commercial forced-air systems where electric supplemental or primary heat is required inside an air handling unit. It is a typical installation for HVAC technicians adding electric heat capacity to an existing air handler or replacing a failed heater kit in the field. The RXBH series was designed specifically for Rheem and Ruud OEM equipment as well as other compatible HVAC brand air handlers. The included Smart Plug connection simplifies termination during installation.

Key Features

• 10 kW heat output on 208-240 volt, single-phase, 60 Hz supply
• Built-in breaker provides integrated over-current protection
• Nickel chromium heat elements for long-service durability and consistent performance
• Includes Smart Plug for simplified field wiring connections
• RXBH series design engineered for OEM-style fitment in compatible air handlers

Compatibility

Designed as an OEM-style replacement and field-installed heater kit for Rheem and Ruud air handling units and other compatible HVAC brand equipment within the RXBH series application range.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all electrical power to the air handler before beginning any work on the heater kit. Verify that the supply circuit voltage, amperage, and wire gauge match the kit requirements before energizing. Do not bypass or remove the built-in breaker.

Technical Specifications

• Capacity: 10 kW
• Voltage: 208-240 volts
• Phase: Single phase
• Frequency: 60 Hz
• Over-Current Protection: Built-in breaker
• Element Material: Nickel chromium
• Includes: Smart Plug

Standard Information

• Brand: RUUD
• Manufacturer Part Number: rxbh-1724a10j-b
