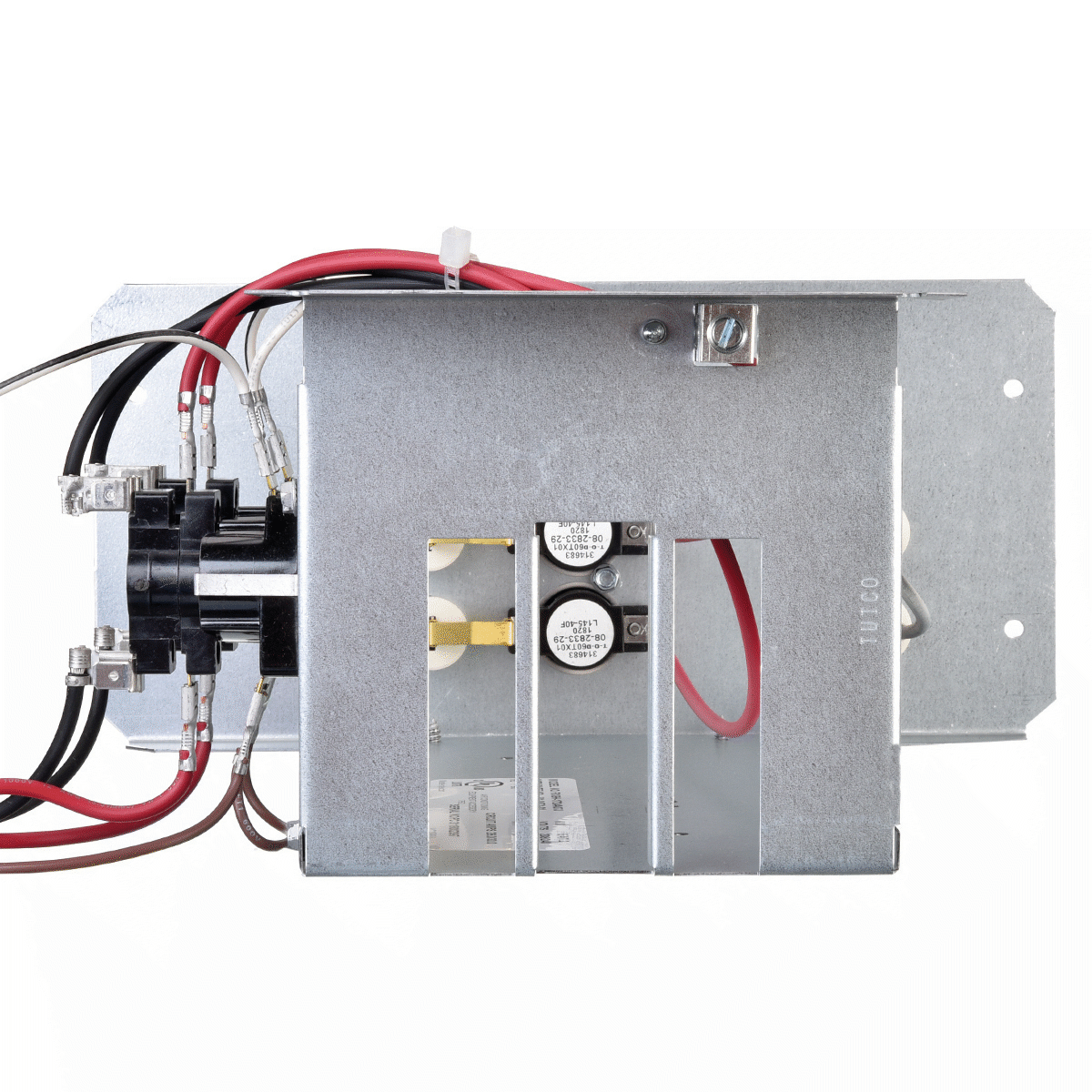

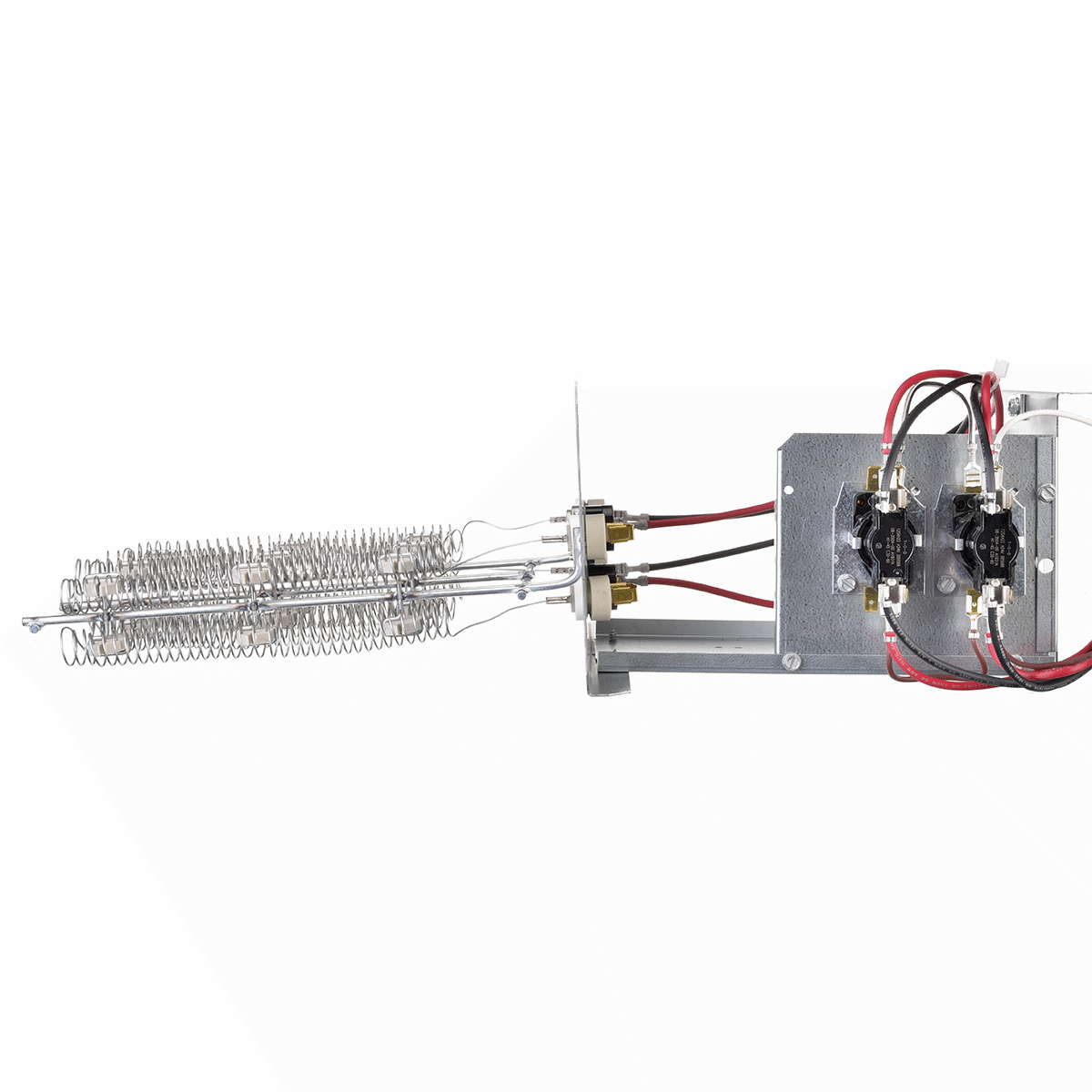

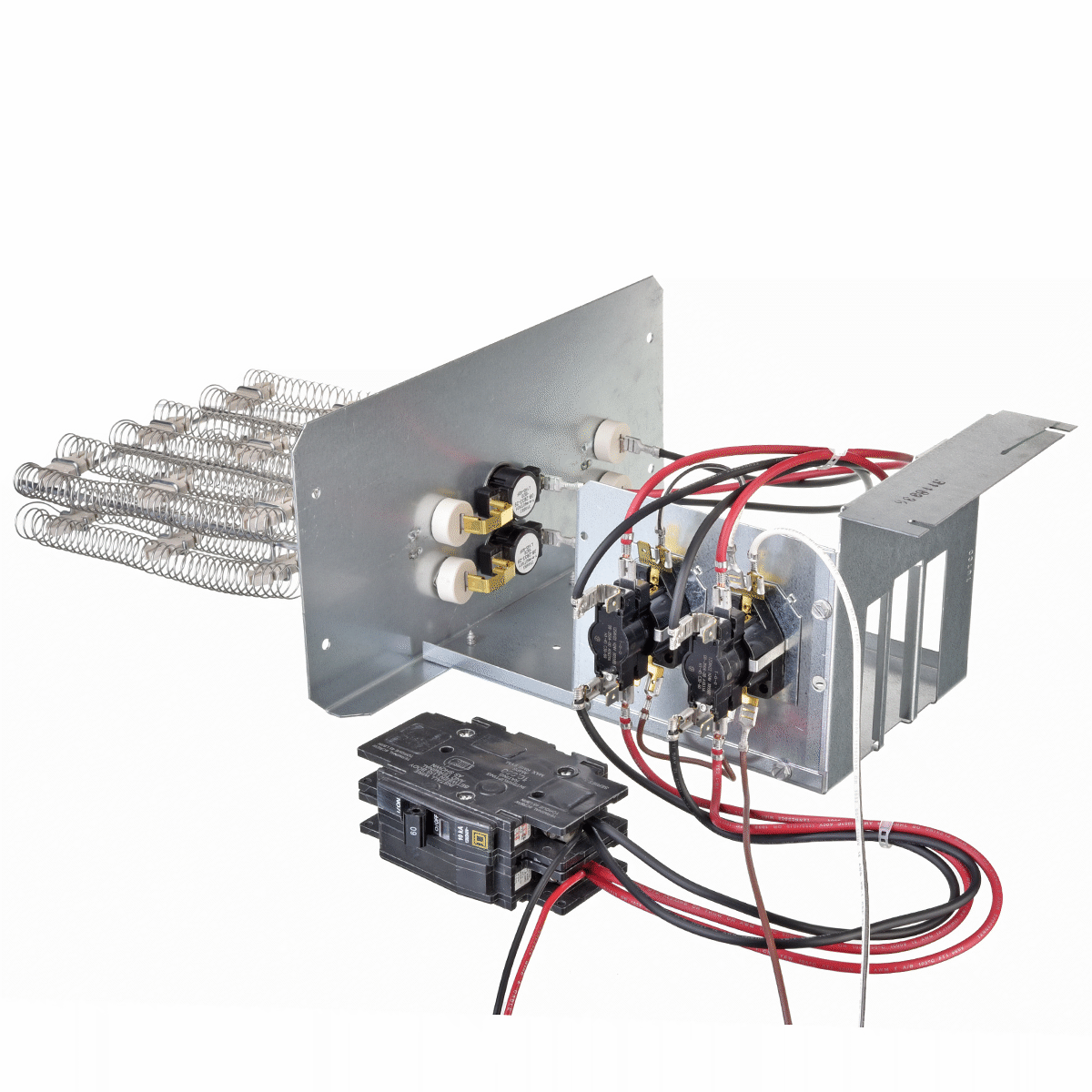

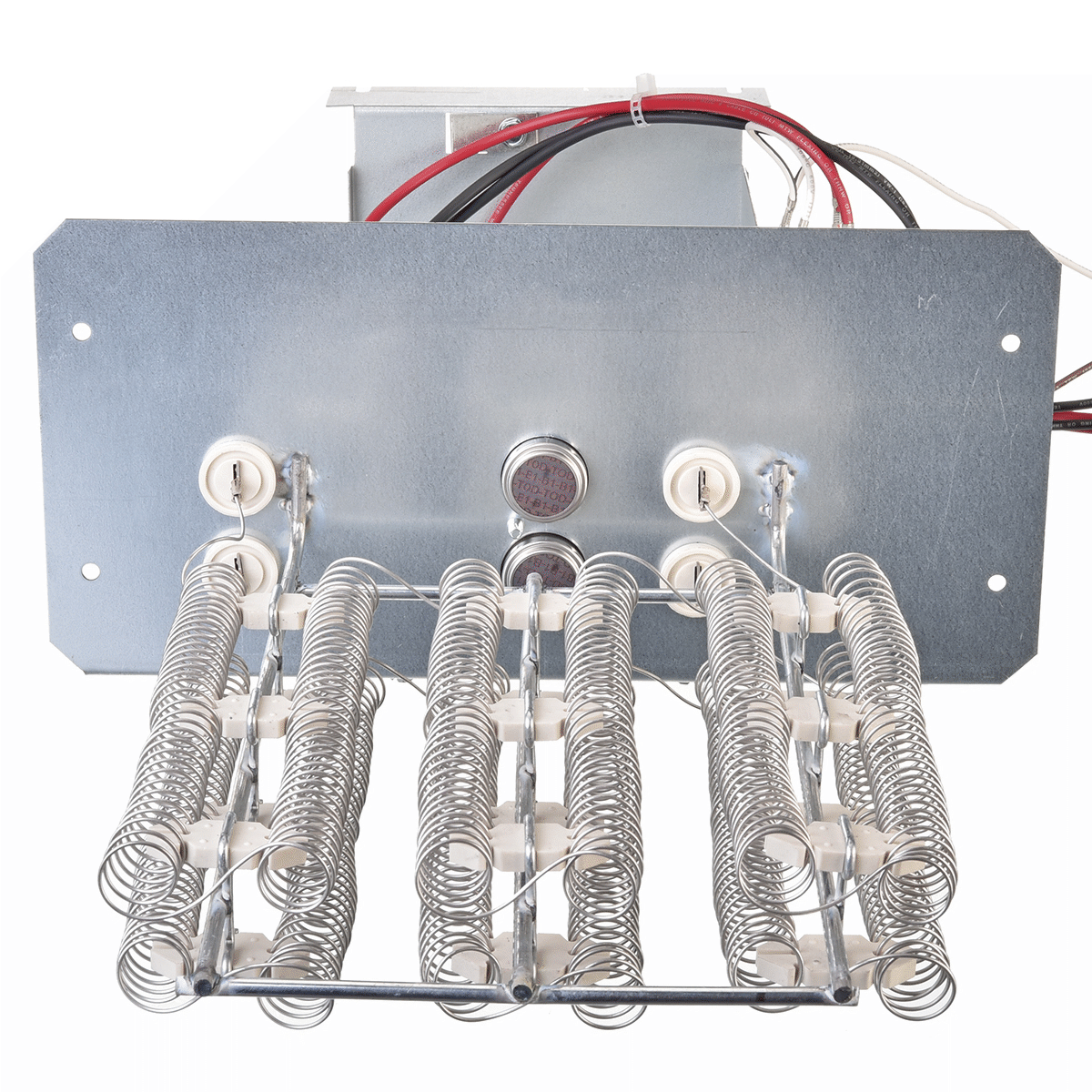

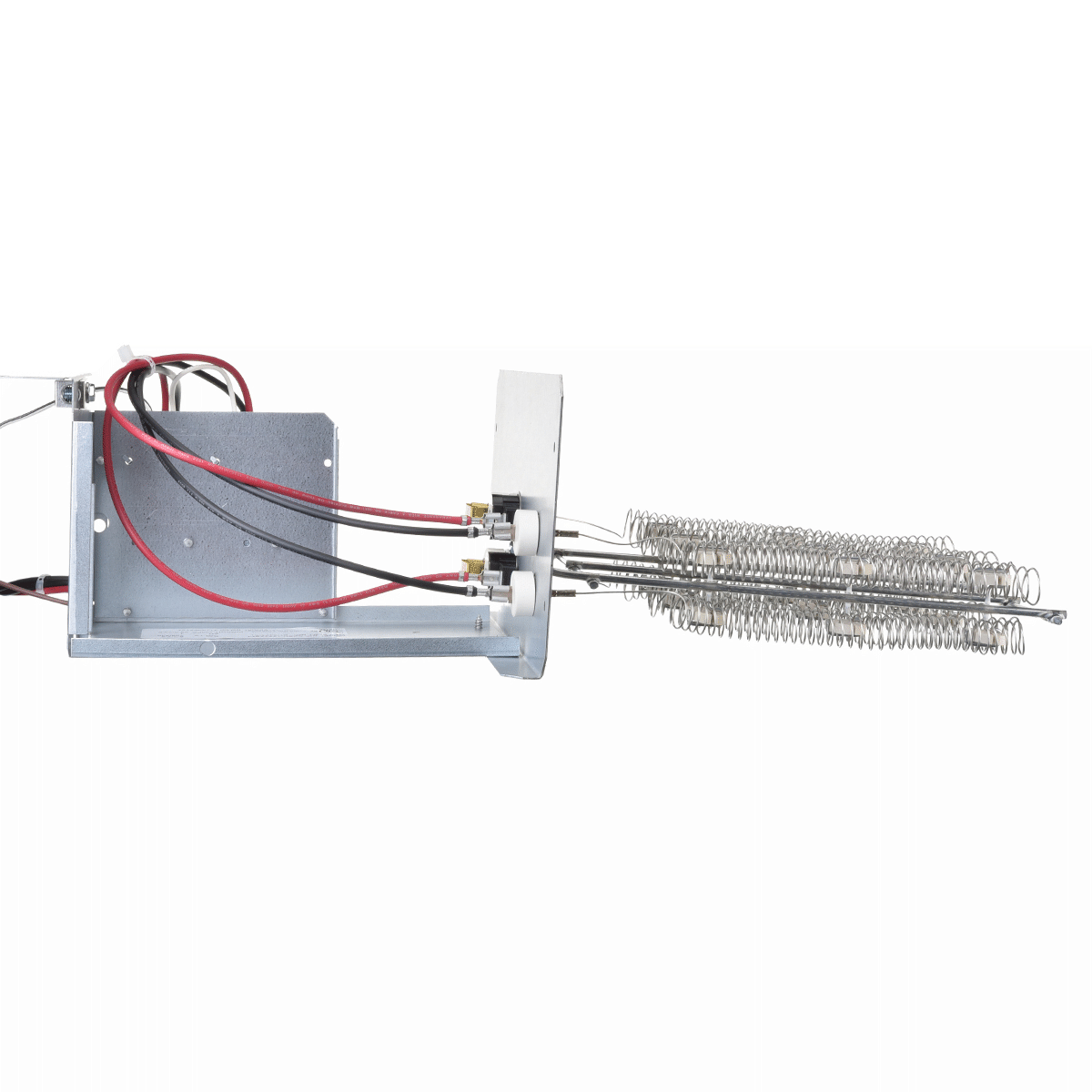

Ruud RXBH-1724A07J Heater Kit, 208-230 V 7 kW

Product Description

The RUUD RXBH-1724A07J Heater Kit operates on 208-230 V and 60 Hz, delivering 7 kW of power. It is a single-phase heater designed for use with RH1P air handlers. This electric heater kit provides supplemental heat for residential or commercial HVAC systems.

• Operates on 208-230 V, 60 Hz
• Delivers 7 kW of heating power
• Designed for use with RH1P air handlers

Product Highlights

The RUUD RXBH-1724A07J is a 7kW electric heater kit designed for use with RUUD RH1P air handlers.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RXBH-1724A07J-1

Technical Specifications

• Brand Name: RUUD®
• MPN: RXBH-1724A07J
• IPN: 6953947
• Approximate Height (inches): 6.00
• Approximate Length (inches): 23.10
• Approximate Weight (pounds): 5.51
• Approximate Width (inches): 12.05
