Ruud RP15AZ60AJ2NA Heat Pump 5 Ton 15 SEER2

Product Description

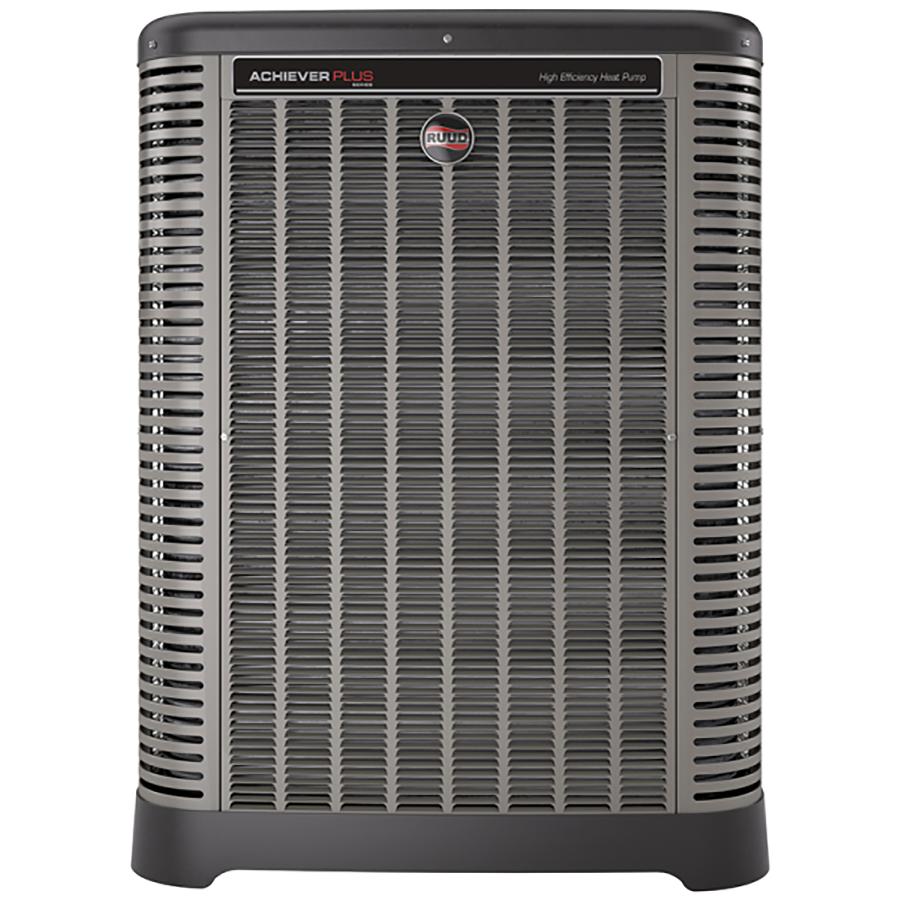

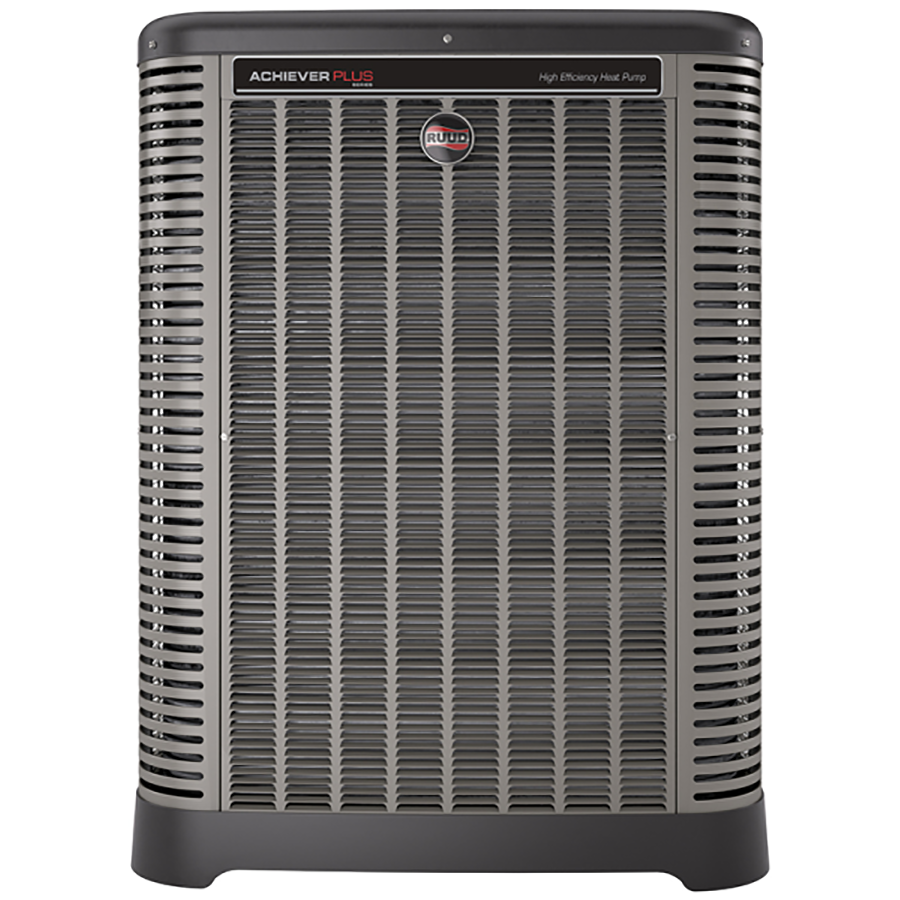

The RUUD RP15AZ60AJ2NA is a 5-ton, 15 SEER2 heat pump outdoor unit rated at 60,000 BTU/h cooling and 57,000 BTU/h heating. Part of the Achiever Plus Series M1 line, this unit runs on 208/230 volts, single-phase, 60 Hz power and is designed for residential split-system applications. It features a two-stage scroll compressor that operates at high and low speeds to deliver tighter temperature control and lower humidity levels compared to single-stage equipment. A 7mm condenser copper coil reduces refrigerant charge requirements, contributing to a lighter cabinet footprint and improved long-term reliability. HVAC technicians will find the service access design significantly reduces time on the job.

The RP15AZ60AJ2NA is suited for residential heating and cooling installations where mid-efficiency performance and serviceability are priorities. The PlusOne Expanded Valve Space provides a minimum 27-square-inch working area using 3-inch, 4-inch, and 5-inch service valve spacing, giving technicians room to work without contorting around the cabinet. The PlusOne Triple Service Access features 15-inch-wide corner access panels with a two-fastener, removable corner and individual louver panels. An inverted reversing valve assists heat transfer with gravity-aided shifting, reducing joint stress and improving reliability over the system life.

Key Features

• Two-stage scroll compressor operates at high and low capacity for precise temperature control and improved dehumidification
• 7mm condenser copper coil reduces refrigerant volume requirements and supports a compact, lighter cabinet
• Inverted reversing valve uses gravity-assist shifting for faster heat transfer and reduced joint stress
• PlusOne Expanded Valve Space delivers a minimum 27-square-inch service area for easier valve access
• PlusOne Triple Service Access with 15-inch-wide corner panels and two-fastener removable louvers for faster servicing
• Rated HSPF 7.8 for heating season efficiency

Compatibility

Designed as an OEM-style residential split-system heat pump outdoor unit intended for use with a compatible indoor air handler or coil cabinet in a ducted forced-air system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect all power at the electrical disconnect before servicing refrigerant circuits, electrical connections, or reversing valve components. Refrigerant handling requires EPA Section 608 certification. Verify that the indoor unit, refrigerant line set, and electrical supply are properly sized and compatible before startup.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: 57,000 BTU/h
• Nominal Tonnage: 5 tons
• SEER2: 15
• HSPF: 7.8
• Voltage / Hz / Phase: 208/230 volts, 60 Hz, 1-phase
• Height: 51 inches
• Width: 37.75 inches
• Depth: 35.75 inches
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RP15AZ60AJ2NA
