Ruud RHPBYB030AJT000NA Packaged Heat Pump 2.5 Ton 13.4 SEER2

Product Description

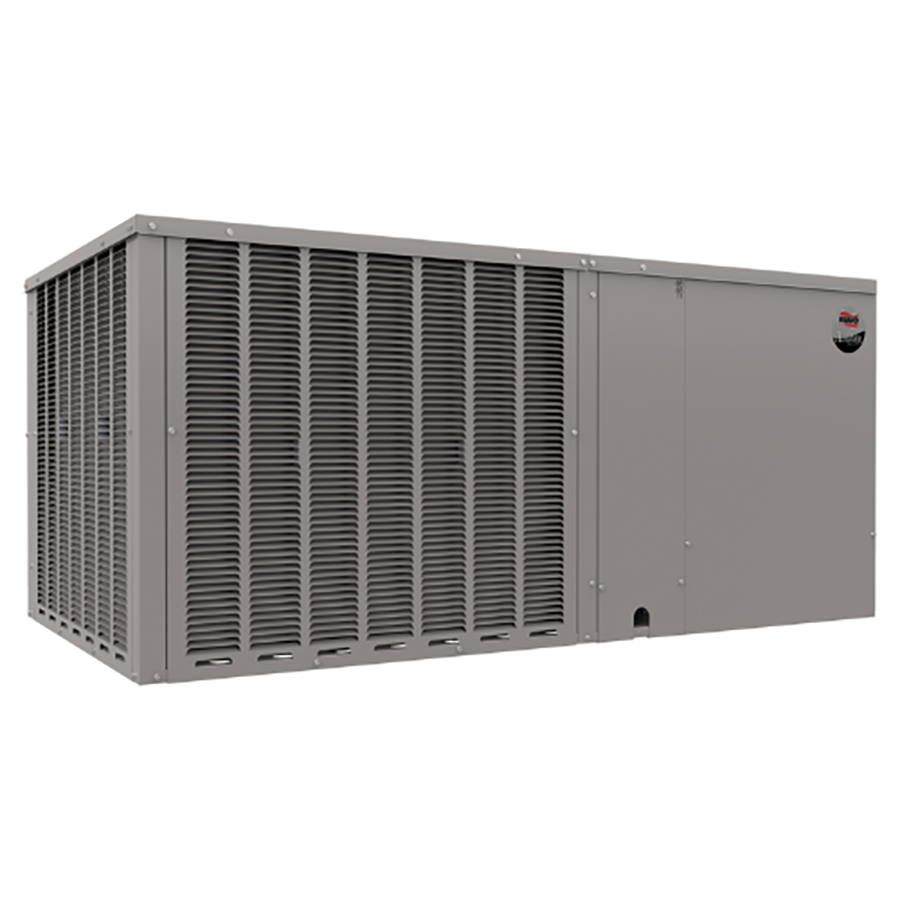

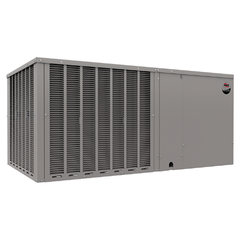

The RUUD RHPBYB030AJT000NA is a horizontal-discharge packaged heat pump unit from the M1 Series, rated at 2.5 nominal tons (30,000 BTU/h) with a 13.4 SEER2 efficiency rating. It operates on R454B refrigerant, a lower-GWP A2L alternative that complies with evolving EPA refrigerant regulations. Packaged units combine heating and cooling into a single cabinet, making them the standard choice for slab or rooftop installations where indoor air-handler space is limited. This unit is installed by licensed HVAC technicians working on residential and light-commercial applications that require a self-contained system in a horizontal configuration.

The RHPBYB030AJT000NA is designed for horizontal installation, typically mounted on a rooftop curb or ground slab alongside the structure. Its all-in-one construction delivers both cooling and heat-pump heating through a single refrigerant circuit, simplifying service access. The M1 Series targets residential and small commercial buildings requiring a code-compliant, efficiency-rated packaged solution. This unit suits replacement or new-construction projects where R454B-compatible equipment is required to meet current refrigerant transition standards.

Key Features

• 2.5 nominal tons (30,000 BTU/h) cooling and heating capacity
• 13.4 SEER2 efficiency rating meets current DOE minimum efficiency standards
• R454B refrigerant — lower-GWP A2L refrigerant compliant with current EPA transition requirements
• Horizontal discharge orientation for rooftop curb or slab side-discharge installations
• All-in-one packaged design eliminates the need for a separate indoor air handler
• M1 Series platform designed for residential and light-commercial applications

Compatibility

Designed as an OEM packaged heat pump unit within the RUUD M1 Series. Consult system documentation and equipment schedules to confirm ducting, electrical supply, and thermostat compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants, as R454B carries a mild flammability classification requiring adherence to applicable safety codes and manufacturer guidelines. Disconnect and lock out all electrical power to the unit before making any electrical or refrigerant connections. Ensure the mounting curb or slab pad is level and structurally rated for the unit weight prior to setting the cabinet. Refer to local mechanical codes and the current edition of ASHRAE 15 for refrigerant safety requirements specific to A2L systems.

Technical Specifications

• Nominal Cooling Capacity: 30,000 BTU/h
• Nominal Tonnage: 2.5 tons
• Efficiency Rating: 13.4 SEER2
• Refrigerant: R454B
• Orientation: Horizontal
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHPBYB030AJT000NA
