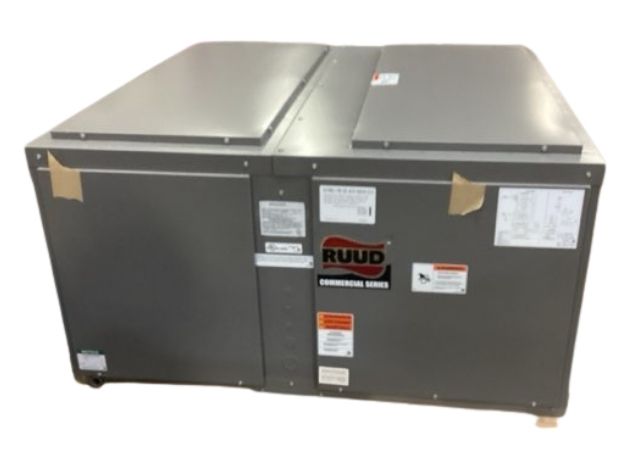

Ruud RHGN-H120CR Air Handler Indoor Unit 10 Ton

Product Description

The RUUD RHGN-H120CR is an air handler indoor unit designed for HVAC systems. This 2-stage unit operates at 208/230 Volt AC and 60 Hertz, with a cooling capacity of 10 tons. Constructed with a sheet metal enclosure and galvanized, pre-painted finish, it supports vertical or horizontal installation. It is also UL (Canada and US) approved.

• Features a 2-stage operation for efficient performance.
• Designed for vertical or horizontal installation.
• Constructed with a durable sheet metal enclosure.

Product Highlights

The RUUD RHGN-H120CR air handler offers a robust solution for indoor climate control, suitable for various installation configurations.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHGN-H120CR

Technical Specifications

• Approval: UL (Canada and US)
• CATALOG NUMBER: RHGN-H120CR
• Category: HVAC/R & Fans
• Cooling Capacity: 10 Ton
• Current Rating: 47 Amp (Locked Rotor);6.2 Amp
• Frequency Rating: 60 Hertz
• Installation: Vertical/Horizontal
• Manufacturer Name: Ruud
• Manufacturer Part Number: RHGN-H120CR
• Number Of Phases: 3
• Operating Temperature: 105 Deg F
• Power Rating: 2 HP
• Series/Model: RHGN-H120
• Type: 2-Stage
• UNSPSC Code: 40101709
• Voltage Rating: 208/230 Volt AC;208/230 Volt
• Drive Type: Standard
• Minimum Circuit Ampacity Rating: 15 Amp
• Energy Efficiency Ratio: 11.2 EER, 12.9 IEER
• Refrigerant Type: R410A
• Airflow Rate: 3735 CFM (Indoor)
• Speed Rating: 1725 RPM
• Applicable Standard: AHRI, ISO 9001
• Nominal Capacity: 10 Ton
• Thickness: 18 Gauge
• Circuit Phase: 3
• Circuit Voltage: 208-230
• Maximum Hertz: 60
• System Controls: NON-COMMUNICATING
