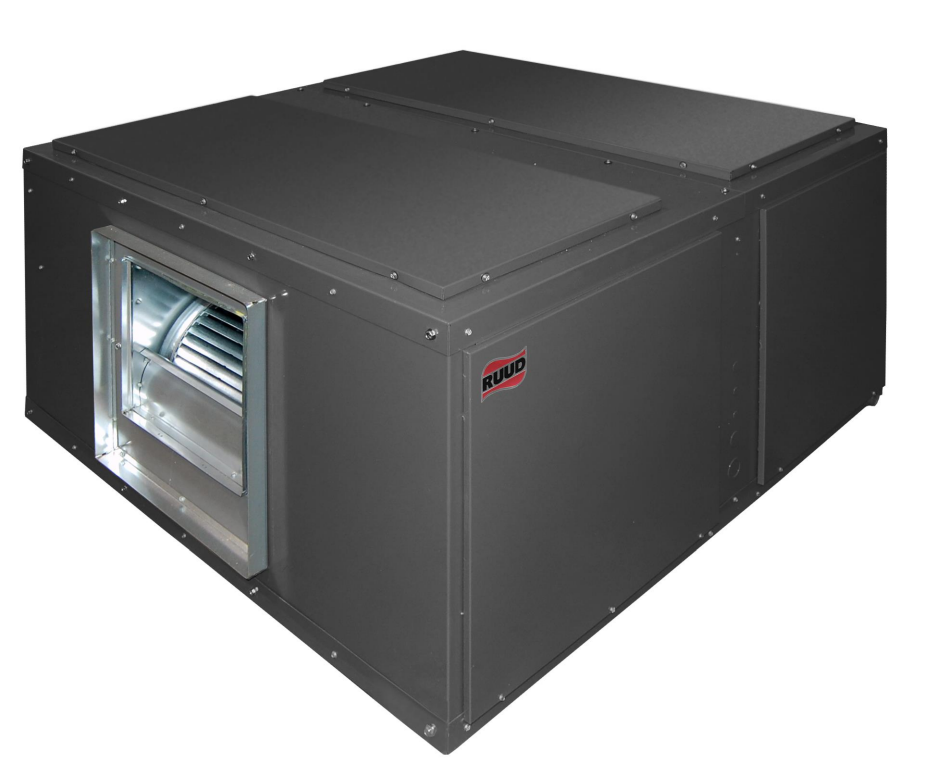

Ruud RHCLP2120CBS Commercial Achiever 10 Ton Multiposition Heat Pump Air Handler

Product Description

The Ruud RHCLP2120CBS Commercial Achiever air handler features industry standard R-410A refrigerant, powder coat painted cabinets and plenums, along with inherently protected motors. Designed for heat pump applications, it has two TX valves with internal check valves that allow reverse flow to occur, providing superior control during heating and cooling cycles. It has been rated and certified to operate with matching size RPCL heat pumps.

• Designed for heat pump applications with two TX valves and internal check valves.
• Pre-painted, sheet metal cabinet with powder coating tested to withstand a 500-hour salt spray.
• Can be installed in horizontal or vertical position.

Product Highlights

The Ruud RHCLP2120CBS air handler offers flexibility and accessibility for various field conditions, ensuring efficient operation and easy maintenance.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHCLP2120CBS

Technical Specifications

• Configuration: Multiposition
• Electrical Designation: 1-60-208/240
• Refrigerant: R410A
• Suction Line Size: 7/8 1-3/8
• Liquid Line Size: 1/2 5/8
• Building Type: Commercial
• Type: Heat Pump
• Series: DOE 2023 Compliant
• Cooling Capacity: 120 Kbtu/hr
• Nominal Capacity: 10 ton
• Voltage Rating: 208-240 VAC
• Phase: 3 ph
• Number of Stages: 2
• Drive: Medium Static
• Brand: RUUD®
• Manufacturer: Rheem Manufacturing
• Manufacturer Part Number: RHCLP2120CBS
