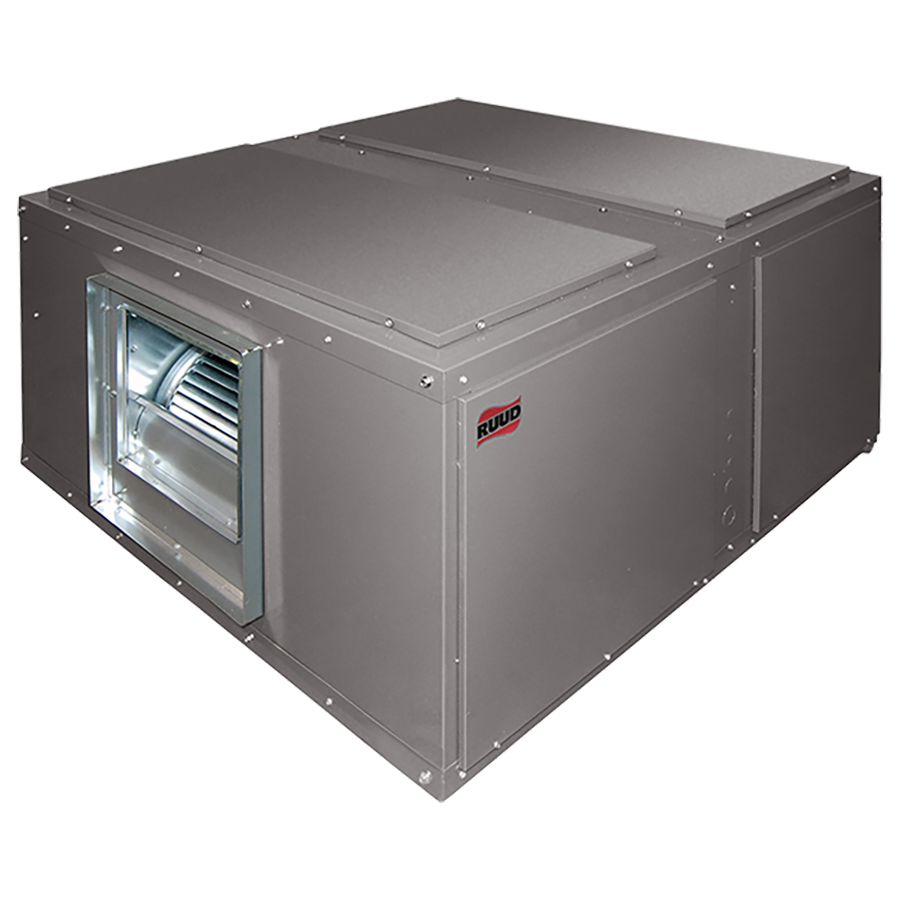

Ruud RHCLA2120DBS Air Handler 10 Ton 460V 3-phase

Product Description

The RUUD RHCLA2120DBS is a commercial-grade air handler rated at 10 nominal tons and configured for 460-volt, 3-phase power. Air handlers of this class circulate conditioned air across an evaporator coil, connecting to a matched condensing unit to form a split-system cooling or heat-pump assembly. The RHCLA2120DBS is designed for installations where 3-phase electrical service is available, which is standard in light commercial and larger commercial buildings. Licensed HVAC technicians and mechanical contractors handle procurement, installation, and startup for units in this capacity range.

This unit is intended for commercial split-system HVAC applications where a 10-ton air handler is required. It is engineered to match the RACL condenser series, making it appropriate for new commercial construction or direct equipment replacement in existing 10-ton split systems running on 460-volt, 3-phase electrical service. Typical installation environments include rooftop mechanical rooms, dedicated equipment closets, and utility spaces in commercial or light-industrial facilities.

Key Features

• 10 nominal ton capacity suited for medium to large commercial cooling loads
• 460-volt, 3-phase power configuration for commercial electrical service compatibility
• Designed to match RACL condenser units for paired split-system installation
• Commercial-class construction for demanding installation environments

Compatibility

Designed to match the RACL condenser series as a paired split-system air handler. Verify tonnage, voltage, and refrigerant circuit compatibility with the specific RACL condenser model prior to installation.

Installation Notes

Installation must be performed by a licensed HVAC contractor or mechanical engineer familiar with commercial split-system equipment. Disconnect and lock out all electrical power at the breaker panel before making any electrical or refrigerant connections. The 460-volt, 3-phase supply circuit must be sized and protected in accordance with NEC requirements and local mechanical codes. Do not operate the unit without confirming that the matched condensing unit is properly installed, charged, and wired.

Technical Specifications

• Item Type: Air Handler
• Nominal Capacity: 10 tons
• Voltage: 460 volts
• Phase: 3-phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHCLA2120DBS
