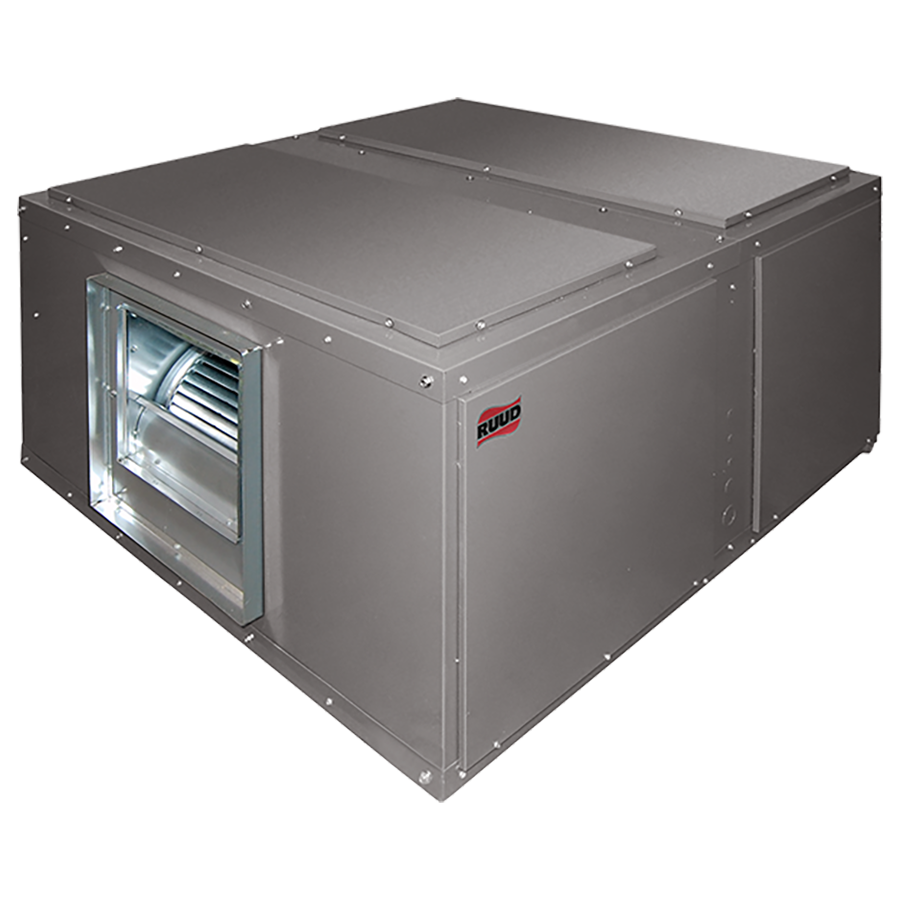

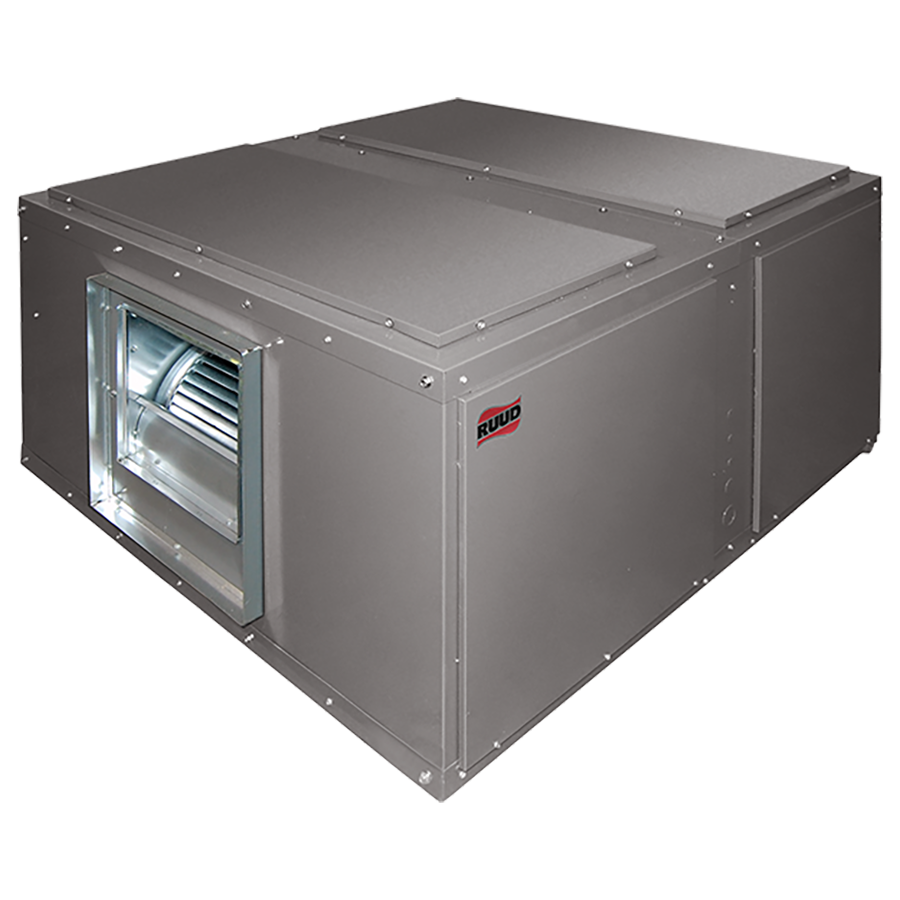

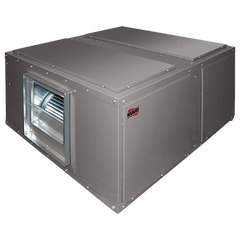

Ruud RHCLA2090DBS Air Handler 7.5 Ton 460V 3-phase

Product Description

The RUUD RHCLA2090DBS is a commercial air handler rated at 7.5 nominal tons and designed for 460-volt, 3-phase electrical service. Air handlers of this class circulate conditioned air through a duct system by housing the indoor coil, blower assembly, and associated components. This unit is designed to work in tandem with a matched condensing unit to complete a split-system cooling or heat-pump configuration. Installation is typically performed by licensed commercial HVAC contractors working on light commercial or rooftop split systems. The 460V 3-phase power requirement places this unit firmly in commercial applications where higher-voltage distribution panels are standard.

This air handler is intended for commercial split-system installations requiring a 7.5-ton indoor unit. It is matched to the RUUD RACL condenser series, making it a direct pairing option for new commercial system installations or indoor-unit replacements on existing RACL-based systems. Typical install scenarios include light commercial buildings, retail spaces, offices, and similar structures with 460V 3-phase power infrastructure and ducted air distribution.

Key Features

• 7.5 nominal ton capacity suited for larger commercial cooling loads
• 460-volt, 3-phase power configuration compatible with commercial electrical infrastructure
• Designed as a matched indoor unit for the RUUD RACL condensing unit series
• Split-system configuration allows independent indoor and outdoor unit service
• Commercial-grade construction appropriate for ducted light commercial applications

Compatibility

Designed to match the RUUD RACL condenser series as a paired indoor air handler in a commercial split-system configuration.

Installation Notes

Installation must be performed by a licensed commercial HVAC contractor. Disconnect and lock out all power at the 460V 3-phase supply before any service or installation work begins. Verify that the electrical supply circuit matches the unit voltage and phase requirements before connecting. Refrigerant line connections must be made in accordance with applicable EPA Section 608 regulations and local mechanical codes.

Technical Specifications

• Item Type: Air Handler
• Nominal Capacity: 7.5 tons
• Voltage: 460 volts
• Phase: 3-phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RHCLA2090DBS
