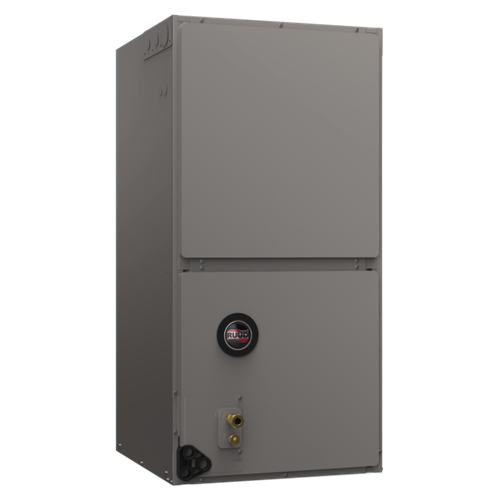

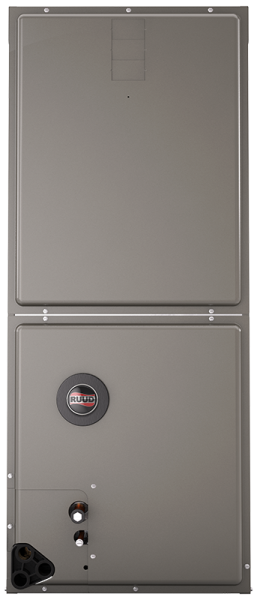

Ruud RH3VZ2417STACNJ Air Handler 2.0 Ton

Product Description

The Ruud RH3VZ2417STACNJ air handler is a 2.0 ton unit featuring a three-stage constant CFM motor. It is designed for multi-position installation, providing flexibility in various HVAC setups. This unit utilizes R-410A refrigerant and operates at a voltage of 208/240/1.

• Constant CFM motor ensures steady airflow.
• Compatible with multiple installation positions.
• Efficient cooling with R-410A refrigerant.

Product Highlights

This air handler is suitable for residential and commercial applications, delivering reliable climate control as part of a heating, ventilation, and air conditioning (HVAC) system.

Product Information

Standard Information

• Type: Air Conditioning
• Brand: Ruud

Technical Specifications

• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Electrical: 208/240/1
• Motor Type: Constant CFM
• Nominal Size: 2.0 Ton
• Refrigerant Type: R-410A
• Width: 17.5 inches
• Wireless: Yes
• SEER: 16
• Cooling BTU: 24,000
• Compressor Stage: Three
• Decibel Level (dB): 72
• Blower: Variable Speed
• Indoor Unit Height: 42.5 inches
• Indoor Unit Depth: 21.69 inches
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
• Unit Weight: 92 pounds
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 3/4 inches
• Filter Size: 16 x 20 inches
• HP Rating: 1/3 hp
• Wattage: 249 W
