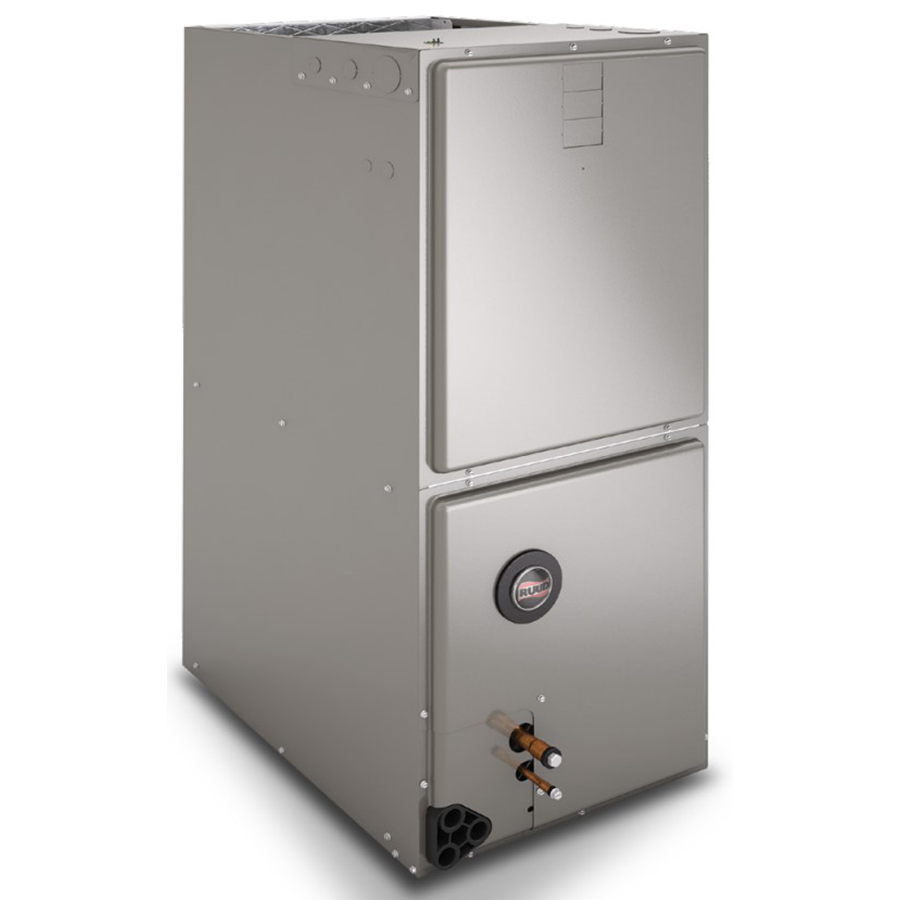

Ruud RH2VY2417STACNJ Air Handler 2 Ton R454B

Product Description

The RUUD RH2VY2417STACNJ is a 2-ton, two-stage variable-speed air handler designed for residential split-system HVAC installations. Rated at 24,000 BTU/h nominal cooling capacity and configured for R454B refrigerant, this unit pairs with a compatible outdoor condensing unit to deliver conditioned air throughout the structure. The two-stage operation allows the blower and coil assembly to match output to actual load demand, reducing short-cycling and improving humidity control. The variable-speed motor further refines airflow across a range of static pressure conditions. Licensed HVAC technicians install and commission this equipment.

This air handler is built for multi-position installation, meaning it can be oriented for upflow, downflow, or horizontal application depending on the mechanical room or closet layout. At 17.5 inches wide, it fits into space-constrained installations where a compact footprint is required. It is suited for new residential construction and system retrofits where R454B refrigerant compatibility is required. The unit is appropriate for light-commercial applications where a 2-ton split system meets the load calculation.

Key Features

• 24,000 BTU/h nominal capacity at 2 tons
• R454B refrigerant compatible — meets current low-GWP refrigerant requirements
• Two-stage operation for improved humidity control and reduced short-cycling
• Variable-speed blower motor for precise airflow management across varying static pressure
• Multi-position design supports upflow, downflow, and horizontal orientations
• 17.5-inch width fits space-constrained mechanical rooms and closets

Compatibility

Designed as an OEM-style air handler for use in residential and light-commercial split-system installations requiring R454B refrigerant and two-stage variable-speed operation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power to the system before beginning work on the air handler, coil, or blower assembly. Verify that the refrigerant line set, electrical supply, and drain configuration are compatible with the selected installation orientation before mounting. All refrigerant work must be performed by EPA Section 608 certified technicians using equipment rated for R454B.

Technical Specifications

• Nominal Capacity: 24,000 BTU/h (2 Tons)
• Refrigerant: R454B
• Stages: Two Stage
• Blower Motor Type: Variable Speed
• Orientation: Multi-Position
• Width: 17.5 inches

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RH2VY2417STACNJ
