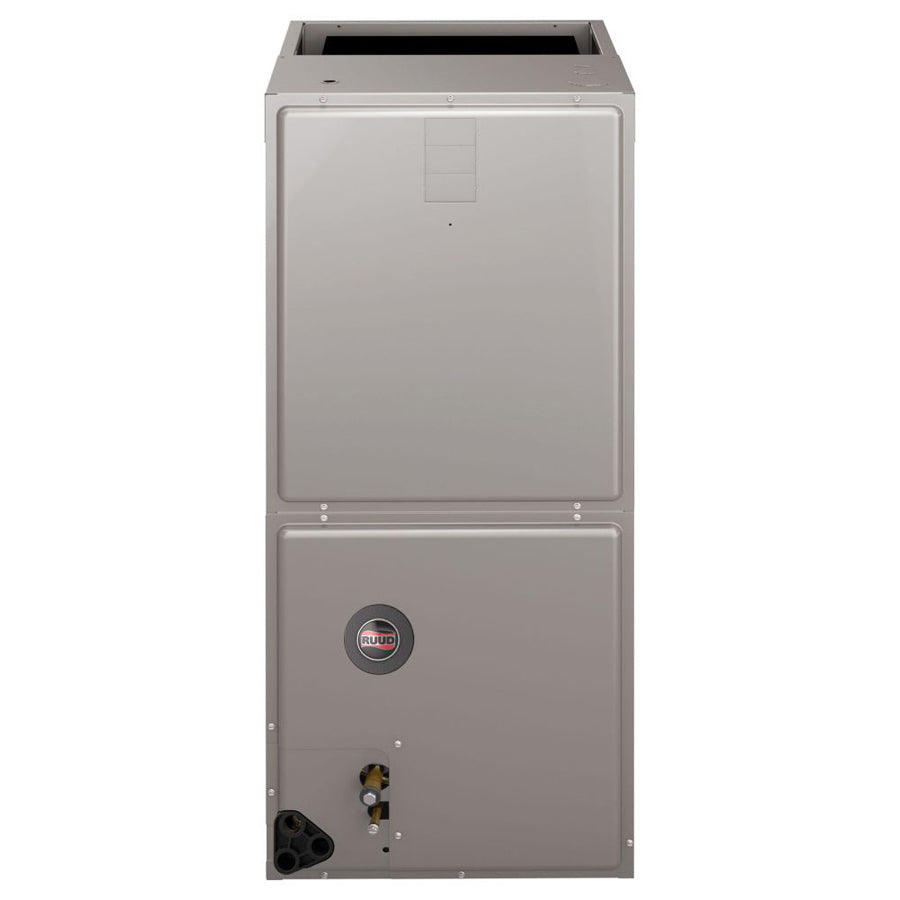

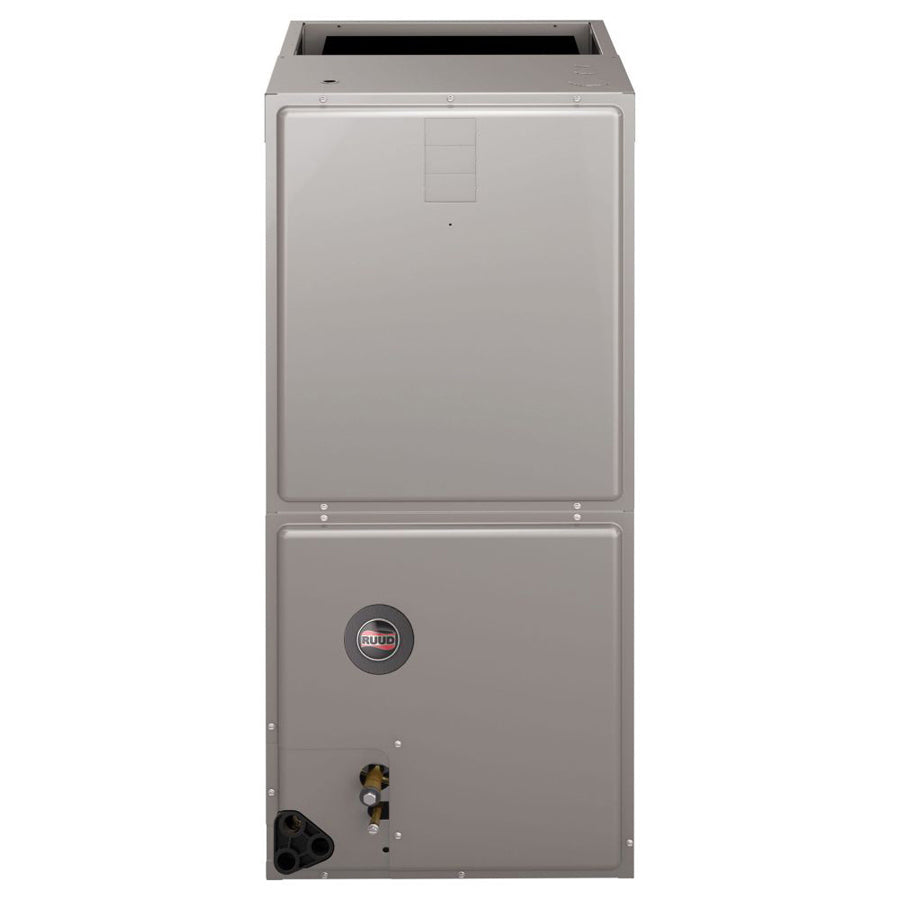

Ruud RH2V6024STANJA Air Handler 5 Ton 2-stage Ecm

Product Description

The RUUD RH2V6024STANJA is a 5-ton, 2-stage cased air handler built for residential and light commercial forced-air systems. It delivers 60000 BTU/h of cooling capacity and runs on 208 to 240 VAC, 60 Hz, single-phase power. The unit features an ECM variable-speed blower motor, which adjusts airflow to match system demand and improves overall efficiency. A 16 SEER rating supports high-efficiency system configurations. The cabinet is constructed of pre-painted rugged steel and is fully lined with 5/8-inch foil-faced insulation to minimize air leakage. Installation is handled by licensed HVAC technicians and typically pairs with a matched outdoor condensing unit.

This air handler is suited for residential and light commercial split-system applications requiring a 5-ton capacity. The cased coil cabinet includes dual 3/4-inch FPT condensate drains located on both the front-left and front-right sides of the drain pan, supporting flexible installation orientations. Non-captive refrigerant lines with long stubs simplify connection to the outdoor unit. The unit is compatible with both R-22 and R-410A refrigerants, and piston options include an externally accessible body that allows piston changeout or TXV installation without removing the coil assembly. Copper refrigerant connections support brazing on both copper and aluminum slab coil models.

Key Features

• 60000 BTU/h cooling capacity at 16 SEER efficiency rating
• ECM variable-speed blower motor reduces energy consumption and improves humidity control
• 2-stage operation for better comfort management across varying load conditions
• Microban antimicrobial additive in the drain pan inhibits mold and mildew growth
• UV-resistant drain pan molded from high-temperature engineered polymer rated to 450 degrees F
• Intertek lab-tested cabinet air leakage of 1 percent or less for improved system efficiency
• Enhanced refrigerant pipe grommets and copper distributor tube assembly with brass-to-brass TXV threads for reliable field service

Compatibility

Compatible with R-22 and R-410A refrigerant systems. Supports AC and heat pump configurations. Piston and TXV installation options allow compatibility with a range of matched outdoor condensing units in 5-ton split-system applications.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer instructions. Disconnect and lock out all electrical power before servicing or making any wiring connections. Shut off refrigerant supply and follow EPA Section 608 recovery procedures before opening the refrigerant circuit. Verify that the condensate drain lines are properly pitched and trapped per local plumbing code before startup.

Technical Specifications

• Cooling Capacity: 60000 BTU/h
• Nominal Tons: 5
• SEER: 16
• Voltage: 208 to 240 VAC, 60 Hz, 1-Phase
• Minimum Circuit Ampacity (MCA): 7 amps
• Maximum Overcurrent Protection (MOP): 15 amps
• Full Load Amps: 4.9 amps
• Motor Type: ECM Variable Speed
• Refrigerant Compatibility: R-22, R-410A
• Line Set Size: 7/8 inches x 3/8 inches
• Width: 24.5 inches
• Height: 55.5 inches
• Depth: 21.75 inches
• Weight: 176 pounds
• Cabinet Material: Pre-Painted Rugged Steel
• Insulation: 5/8-inch foil-faced lining
• Country of Origin: USA

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RH2V6024STANJA
