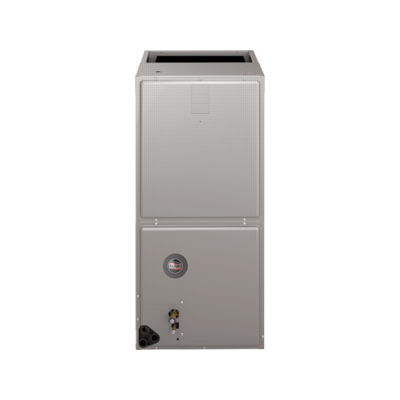

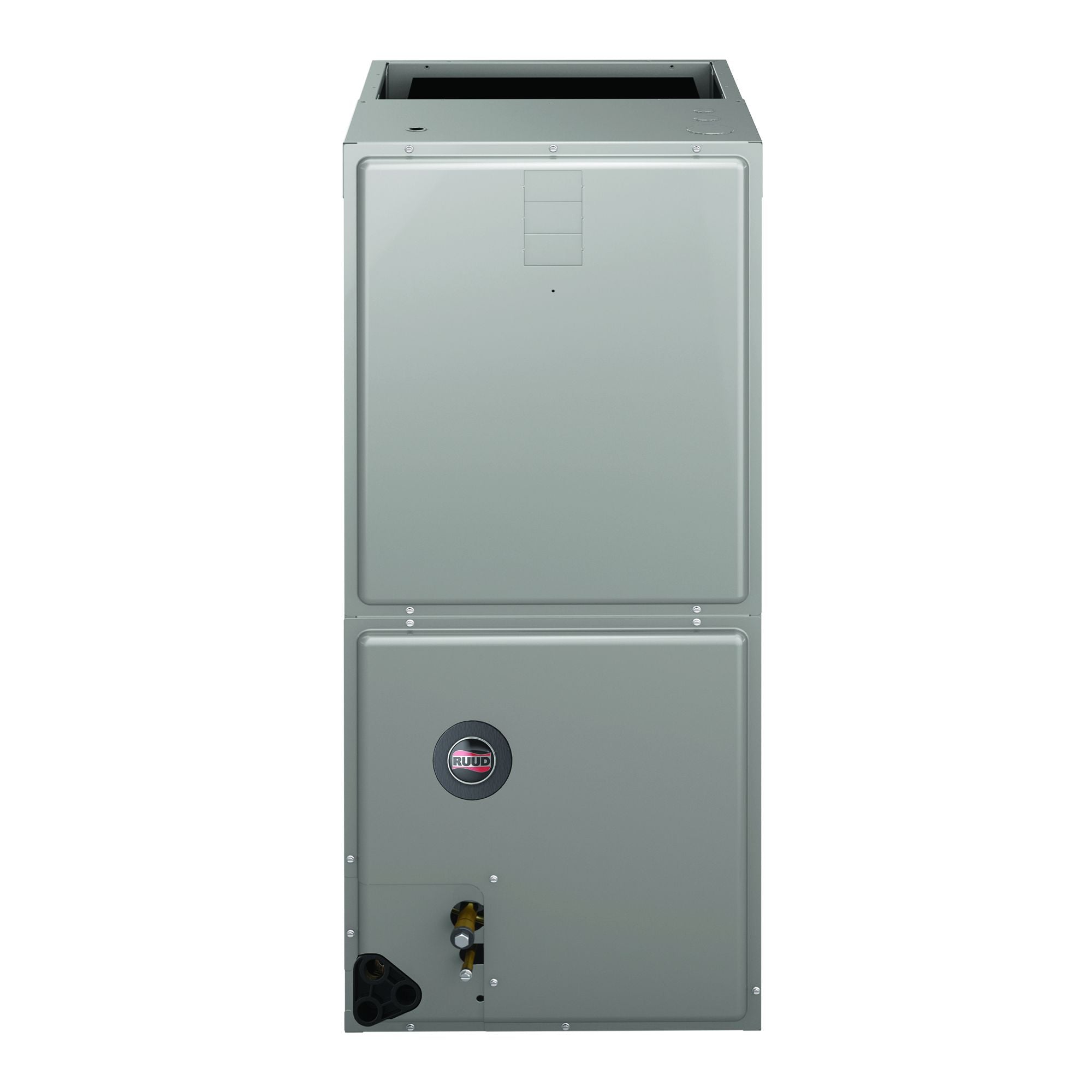

Ruud RH2V3621MTANJA Air Handler 3 Ton 21-11/16 inches

Product Description

The Ruud RH2V3621MTANJA is a multi-position air handler designed for various installation types. This unit features an aluminum evaporator coil with aluminum fins. It is built for durability with a steel cabinet and includes insulation for efficiency.

• Versatile 4-way convertible design supporting upflow, downflow, horizontal left, and horizontal right configurations.
• Rugged steel cabinet with one inch of foil-faced insulation for enhanced performance.
• Slide-out blower housing with integrated controls for easy maintenance.

Product Highlights

This air handler is suitable for a range of HVAC applications, making it ideal for both residential and commercial use.

Product Information

Standard Information

• Brand: Ruud
• Model Number: RH2V3621MTANJA

Technical Specifications

• Airflow: 825/1200 CFM
• Configuration: Multi-Poise
• Depth: 21-11/16 inches
• Dimensions: 50-1/2 inches x 21 inches x 21-11/16 inches
• Electrical: 208/240-1-60
• Frequency: 60Hz
• Height: 50-1/2 inches
• Motor Type: ECM
• Nominal BTUH Cool: 30,000 - 36,000
• Phase: Single
• Refrigerant: R-410A
• SEER: 16
• Tons: 3.0
• Voltage: 208/240V
• Width: 21 inches
• Amp: 15
• Blower: Variable Speed
• Maximum CFM: 1,200
• Total Shipping Weight: 135 pounds
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
• Series: RH2V Series
• Motor Speed: 1/2 HP
• AHRI Certificate: Yes
• AHRI Number: 201689893
