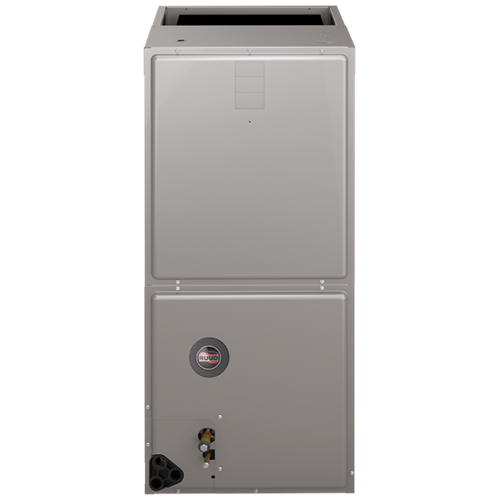

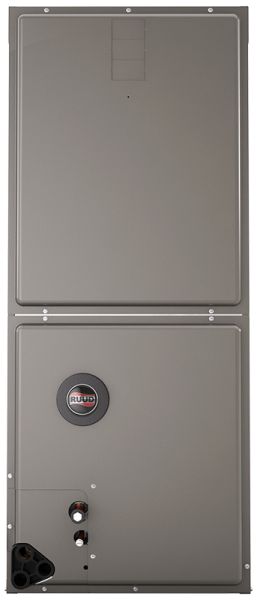

Ruud RH2TY2417STANNJ Endeavor Line Air Handler 24000 Btu/h

Product Description

The Ruud RH2TY2417STANNJ Endeavor Line Air Handler is designed for efficient air handling. It operates quietly thanks to its insulated cabinet. With a durable aluminum indoor coil, the unit resists corrosion for lasting performance. Its 4-way convertible design is suitable for various installations, including tight spaces.

• Quiet operation due to insulated cabinet construction.
• Corrosion-resistant aluminum coil design.
• 4-way convertible compact design for diverse applications.

Product Highlights

This air handler is ideal for contractors and HVAC technicians needing a reliable, efficient solution.

Product Information

Standard Information

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V

Technical Specifications

• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Refrigerant: R-454B
• Nominal Capacity: 24000 Btu/h
• Air Flow - Lo: 600 ft³/min
• Air Flow - Hi: 800 ft³/min
• Weight: 92 lb
• Shipping Weight: 106 lb
• Dimensions: 17.5W X 21.6D X 42.5H in
• Supply Duct: 16 in
• Refrigerant Connections Sweat ID - Liquid: 3/8 in
• Refrigerant Connections Sweat ID - Vapor: 3/4 in
• Motor Type: Constant Torque
• Motor Amps: 1.8 A
• Maximum Overcurrent Protection: 15 A
• SEER Rating: 13.4 to 16
