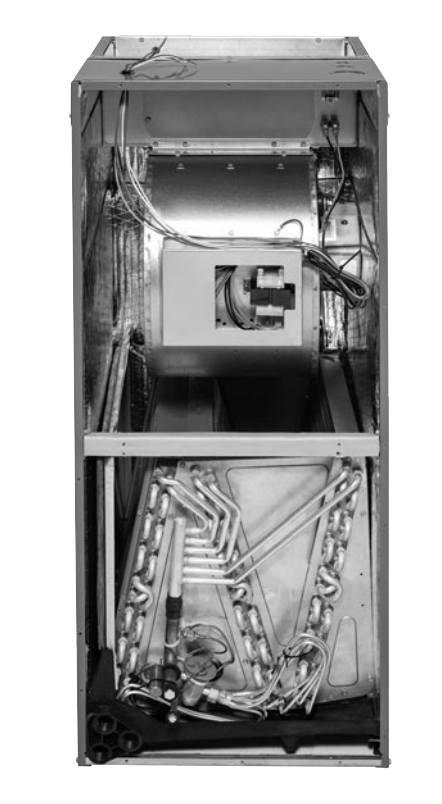

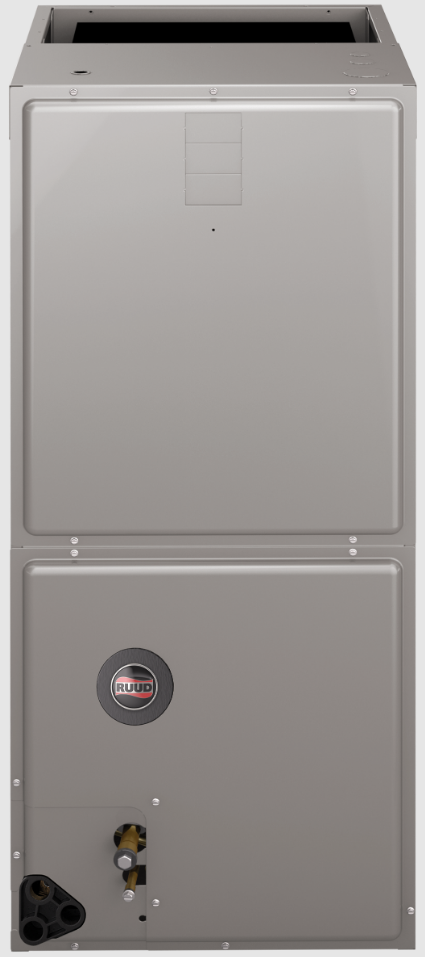

Ruud RH2T6021SEACJA 5 Ton 16 SEER 1 PH Two Stage Air Handler

Product Description

The Ruud RH2T6021SEACJA is a 5 Ton, 16 SEER, 1 PH two-stage air handler. The RH2T features a constant torque two-stage motor (ECM) which provides enhanced SEER performance with most Ruud outdoor units. It is EcoNet Enabled, allowing direct communication with the EcoNet Smart Home System. Suitable for mobile home applications.

• EcoNet Enabled (EEV Option) for smart home system connectivity
• Constant torque two-stage motor (ECM) enhances SEER performance
• Versatile 4-way convertible design for upflow, downflow, horizontal applications

Product Highlights

This Ruud air handler offers efficient and versatile air handling with smart home integration capabilities.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RH2T6021SEACJA

Technical Specifications

• Type: Horizontal Air Handlers
• BTU: 48K
• Efficiency: 16 SEER
• Seer: 16
• Ton: 5
• Voltage: 208/240 Volts
• Configuration: Multiposition
• Nominal Capacity (Tons): 60000
• Electrical Designation: 1-60-208/240
• Refrigerant: R410A
• Heating: None
• Suction Line Size: 7/8
• Liquid Line Size: 3/8
• Motor Type: ECM
• Building Type: Residential
• Model: RH2T6021SEACJA
• Product: Air Handler
