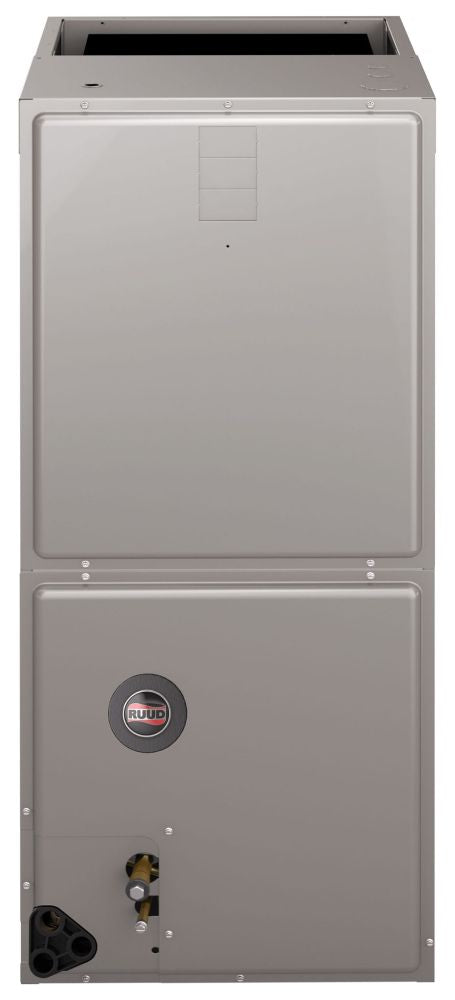

Ruud RH2T4821MEACJA R-410A A/H Constant Torque

Product Description

The RUUD RH2T4821MEACJA is an air conditioner handler designed for outdoor installation. This 2-stage, 4-way, medium efficiency unit operates at 208/240 Volt and 60 Hertz, delivering a cooling capacity of 42000 BTU/Hour with a power rating of 14.06 Kilowatt. It features a constant torque ECM motor and electronic expansion valve for metering. The unit's rugged steel enclosure is pre-painted and measures 21 inches in width.

• Features a rugged steel cabinet construction for added strength and versatility.
• Equipped with 1 Inch foil faced insulation for thermal and sound performance.
• Indoor coil design provides low air side pressure drop and high performance.

Product Highlights

The RUUD RH2T4821MEACJA air conditioner handler combines efficient cooling with a durable design, suitable for wall installation and compliant with AHRI and ISO 9001 standards.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RH2T4821MEACJA

Technical Specifications

• Approval: UL (Canada and US)
• CATALOG NUMBER: RH2T4821MEACJA
• Category: HVAC/R & Fans
• Connection Type: Lug
• Cooling Capacity: 42000 BTU/Hour
• Enclosure Finish: Pre-Painted
• Enclosure Material: Rugged Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Manufacturer Name: Ruud
• Manufacturer Part Number: RH2T4821MEACJA
• Number Of Phases: 1
• Power Rating: 14.06 Kilowatt
• Series/Model: RH2T
• Size: 21 Inch Width
• Type: 2-Stage, 4-Way, Medium Efficiency, Outdoor
• UNSPSC Code: 40101709
• Voltage Rating: 208/240 Volt
• Energy Efficiency Ratio: 16 SEER
• Airflow Rating: 800 to 1600 CFM
• Motor Type: Constant Torque ECM
