Product Description

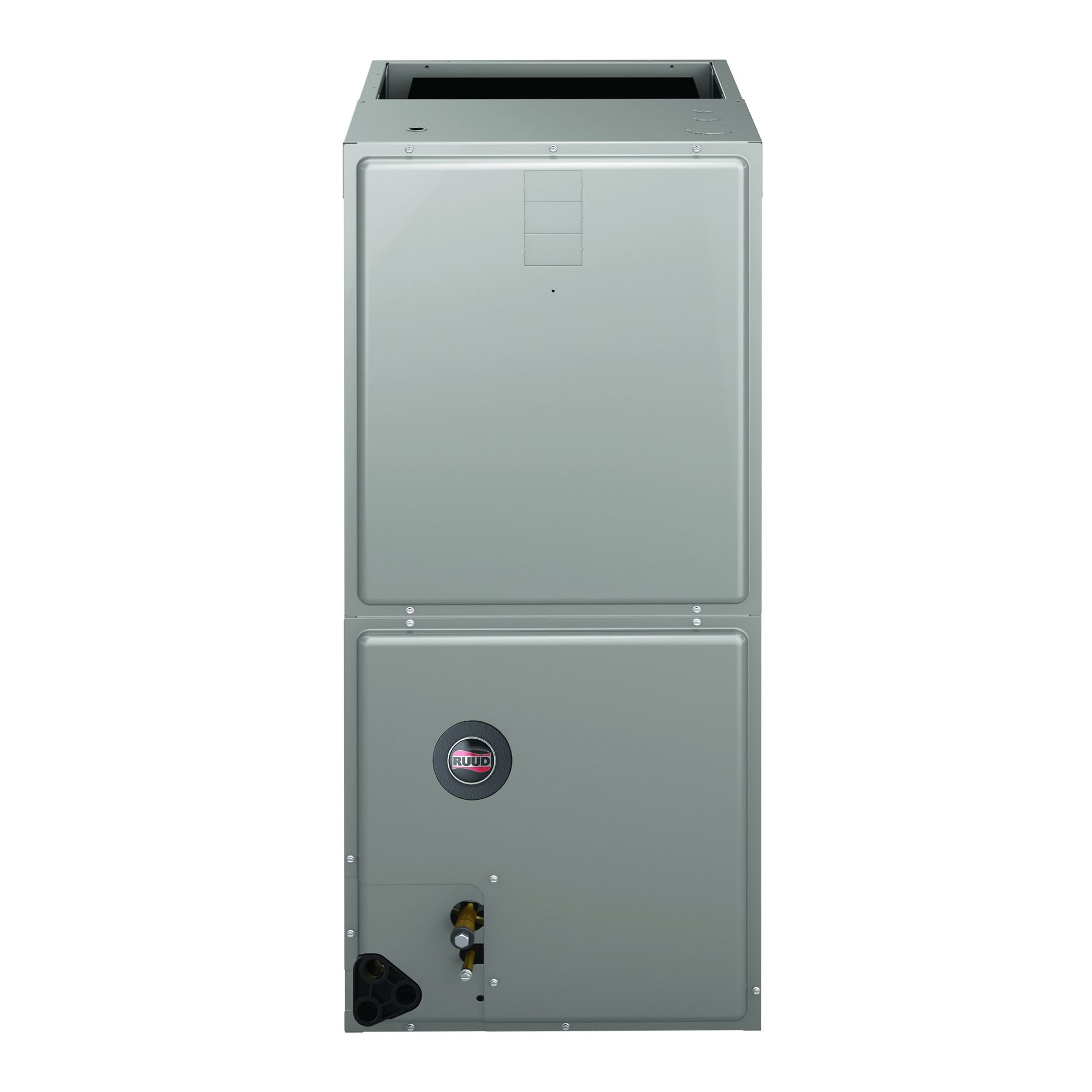

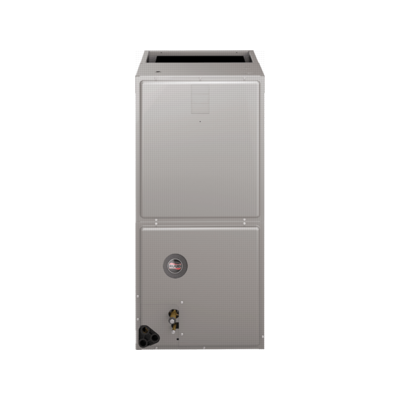

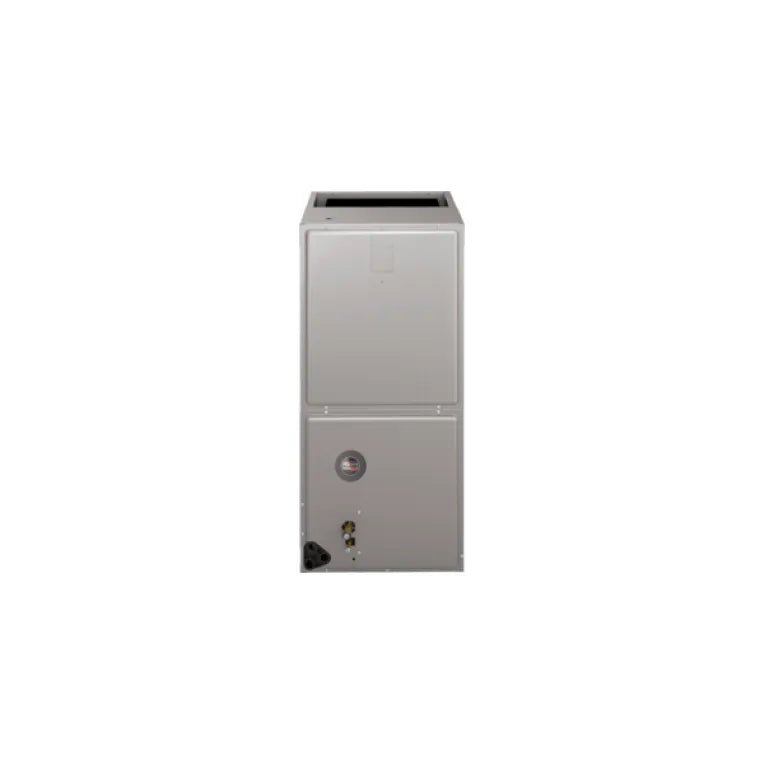

The Ruud RH1T2417STANJA is an aluminum multi-position air handler designed for efficient cooling. It features an evaporator coil made from aluminum fins bonded to internally grooved aluminum tubing, ensuring reliable performance. This model supports a versatile 4-way convertible design, making it adaptable for various installation needs.
- Evaporator coil with aluminum construction for optimal heat transfer
- Multi-position design for upflow, downflow, horizontal left, and horizontal right applications
- Durable steel cabinet with one inch of foil-faced insulation
Product Highlights
This air handler is suitable for use in residential and mobile home applications, offering efficient airflow and flexibility in installation.
Product Information
Standard Information
-
Brand: Ruud
-
MPN: RH1T2417STANJA
Technical Specifications
-
Airflow: 600/800 CFM
-
Approximate Shipping Weight: 106 lbs
-
Configuration: Multi-Poise
-
Depth: 21-11/16 inches
-
Electrical: 208/240-1-60
-
Frequency: 60Hz
-
Height: 42-1/2 inches
-
Liquid Line Size: 3/8 inches
-
Motor Type: ECM
-
Nominal BTUH Cool: 18,000 - 24,000
-
Phase: Single
-
Refrigerant: R-410A
-
SEER: 16
-
Suction Line Size: 3/4 inches
-
Tons: 2.0
-
Voltage: 208/240V
-
Width: 17-1/2 inches
-
Electrical Phase(s): 1-Phase
-
Amp(s): 15
-
Blower: Multi-Speed
-
Maximum CFM: 800
