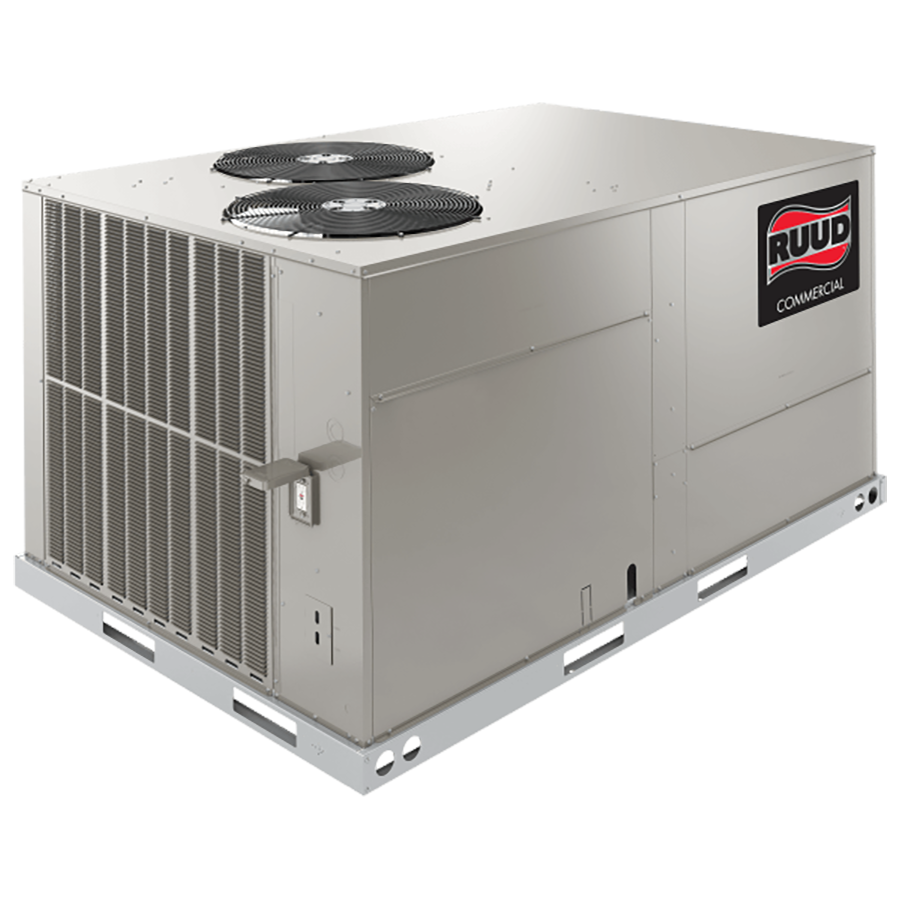

Ruud RGEDZT090ACG202AAAA0 Gas Pack 7.5T 200K Btu

Product Description

The RUUD RGEDZT090ACG202AAAA0 is a commercial gas pack unit rated at 200,000 BTU/h gross heating capacity with a 7.5-ton cooling classification. This self-contained packaged system integrates gas heating and electric cooling into a single rooftop cabinet, eliminating the need for separate indoor air handling equipment. Operating on 208/230-volt, 3-phase power, it is sized for light commercial and larger commercial applications where three-phase electrical service is available. Licensed HVAC technicians handle installation, commissioning, and service on units of this class.

Gas pack units of this size are typically installed on rooftop curb mounts or ground-level pads serving light commercial buildings such as retail spaces, offices, warehouses, and similar structures. The 7.5-ton cooling capacity and 200,000 BTU/h gas heat output make it appropriate for spaces with significant conditioning loads. Three-phase power supply is required at the unit disconnect. All gas piping, electrical connections, and ductwork must be sized and installed in accordance with local mechanical and electrical codes.

Key Features

• 200,000 BTU/h gross gas heating capacity for high-demand commercial applications
• 7.5-ton nominal cooling classification in a single packaged cabinet
• 208/230-volt, 3-phase power configuration reduces amperage draw versus single-phase equivalents
• Packaged design combines heating and cooling in one rooftop-ready unit
• Eliminates need for a separate indoor furnace or air handler

Compatibility

Designed as an OEM gas pack unit for light commercial rooftop or ground-level installations requiring 208/230-volt 3-phase electrical service and a 7.5-ton cooling capacity with high-capacity gas heat.

Installation Notes

Installation must be performed by a licensed HVAC contractor in compliance with local mechanical codes, the IFGC, and NEC requirements for commercial packaged equipment. Shut off all gas supply and de-energize the unit at the main disconnect before any service work. The unit requires a properly sized rooftop curb or ground pad, dedicated 3-phase electrical service, and code-compliant gas piping at the inlet connection. Duct connections and refrigerant circuit commissioning must be completed before startup.

Technical Specifications

• Item Type: Gas Pack
• Nominal Cooling Capacity: 7.5 tons
• Gross Heating Capacity: 200,000 BTU/h
• Voltage: 208/230 volts
• Phase: 3-phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RGEDZT090ACG202AAAA0
