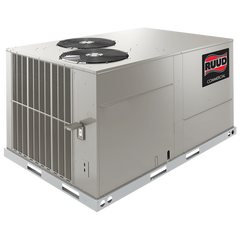

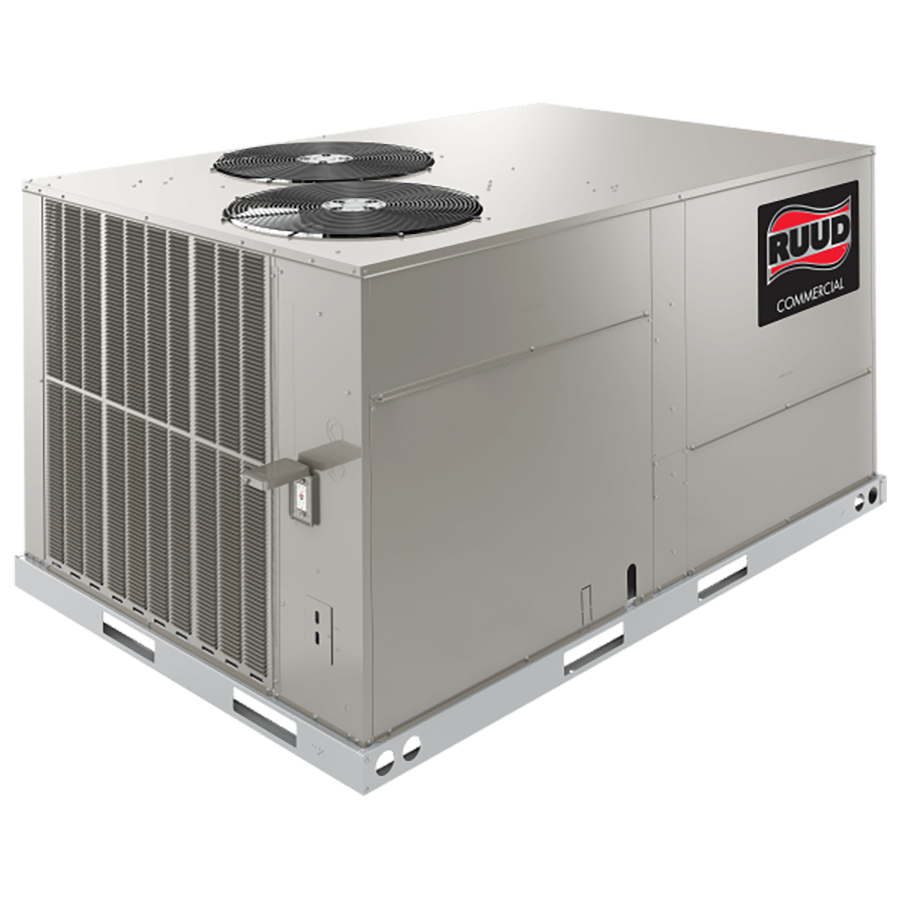

Ruud RGEDZT090ACG152AAAA0 Gas Pack 7.5T 150K Btu

Product Description

The RUUD RGEDZT090ACG152AAAA0 is a commercial gas pack unit rated at 150,000 BTU/h gross heating capacity and 7.5 nominal tons of cooling. A gas pack combines a gas-fired furnace and a refrigerant-based cooling system into a single rooftop or ground-level cabinet, making it a common choice for light commercial applications where indoor mechanical space is limited. This unit operates on 208/230-volt, three-phase power, which is standard for commercial construction. Installation and commissioning are performed by licensed HVAC mechanical contractors holding appropriate refrigerant and gas certifications.

This gas pack is suited for light commercial applications such as retail buildings, small offices, restaurants, and similar structures that require packaged heating and cooling in a single outdoor unit. The three-phase electrical configuration aligns with standard commercial power distribution, and the 7.5-ton cooling capacity covers mid-range commercial load requirements. It is designed for rooftop or slab-mounted installation as a self-contained packaged unit, reducing the need for separate indoor air-handling equipment.

Key Features

• 150,000 BTU/h gross heating capacity from integrated gas-fired heat exchanger
• 7.5 nominal tons of cooling in a single packaged cabinet
• 208/230-volt, three-phase power input for commercial electrical systems
• Self-contained design combines heating and cooling, eliminating the need for a separate indoor unit
• Rooftop or ground-level slab mounting options typical of this product class

Compatibility

Designed as an OEM packaged gas unit for light commercial heating and cooling applications requiring 7.5-ton capacity and three-phase power supply.

Installation Notes

Installation must be performed by a licensed HVAC contractor with applicable gas and refrigerant certifications. Disconnect all electrical power and close the gas supply valve before servicing or making any connections. Installations must comply with local mechanical codes, the International Fuel Gas Code (IFGC), and NEC requirements for commercial equipment. Verify that the supply voltage and phase configuration at the disconnect match the unit nameplate before startup.

Technical Specifications

• Item Type: Gas Pack
• Nominal Cooling Capacity: 7.5 tons
• Gross Heating Capacity: 150,000 BTU/h
• Voltage: 208/230 volts
• Phase: 3-Phase

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RGEDZT090ACG152AAAA0
