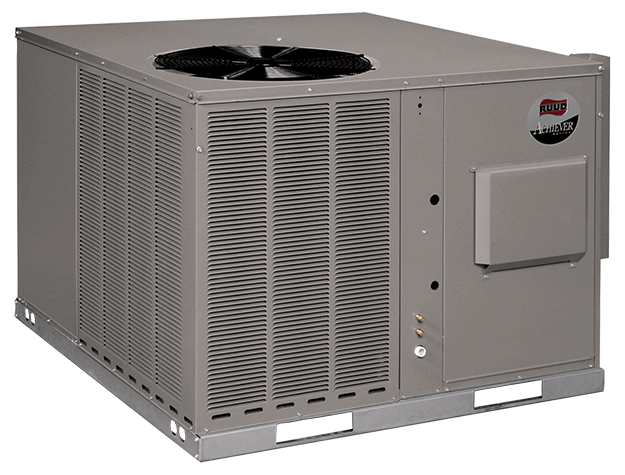

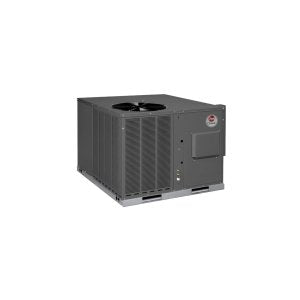

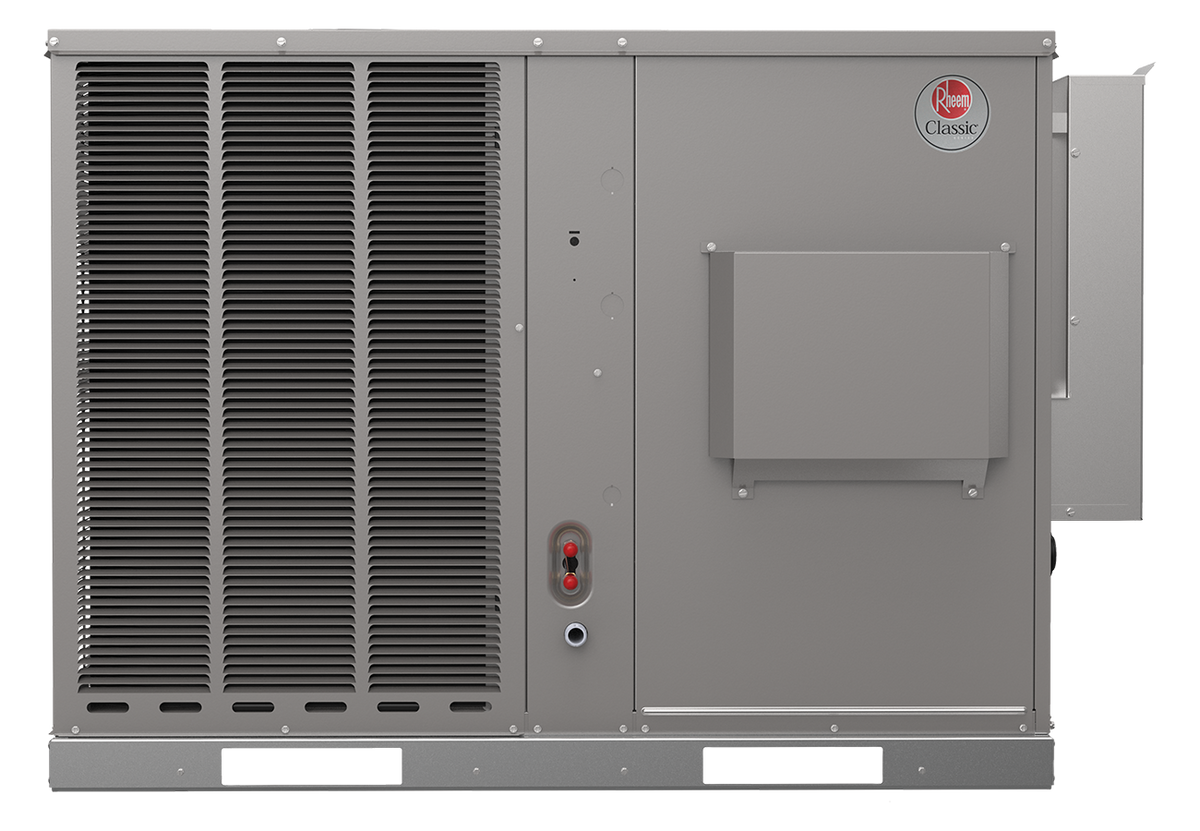

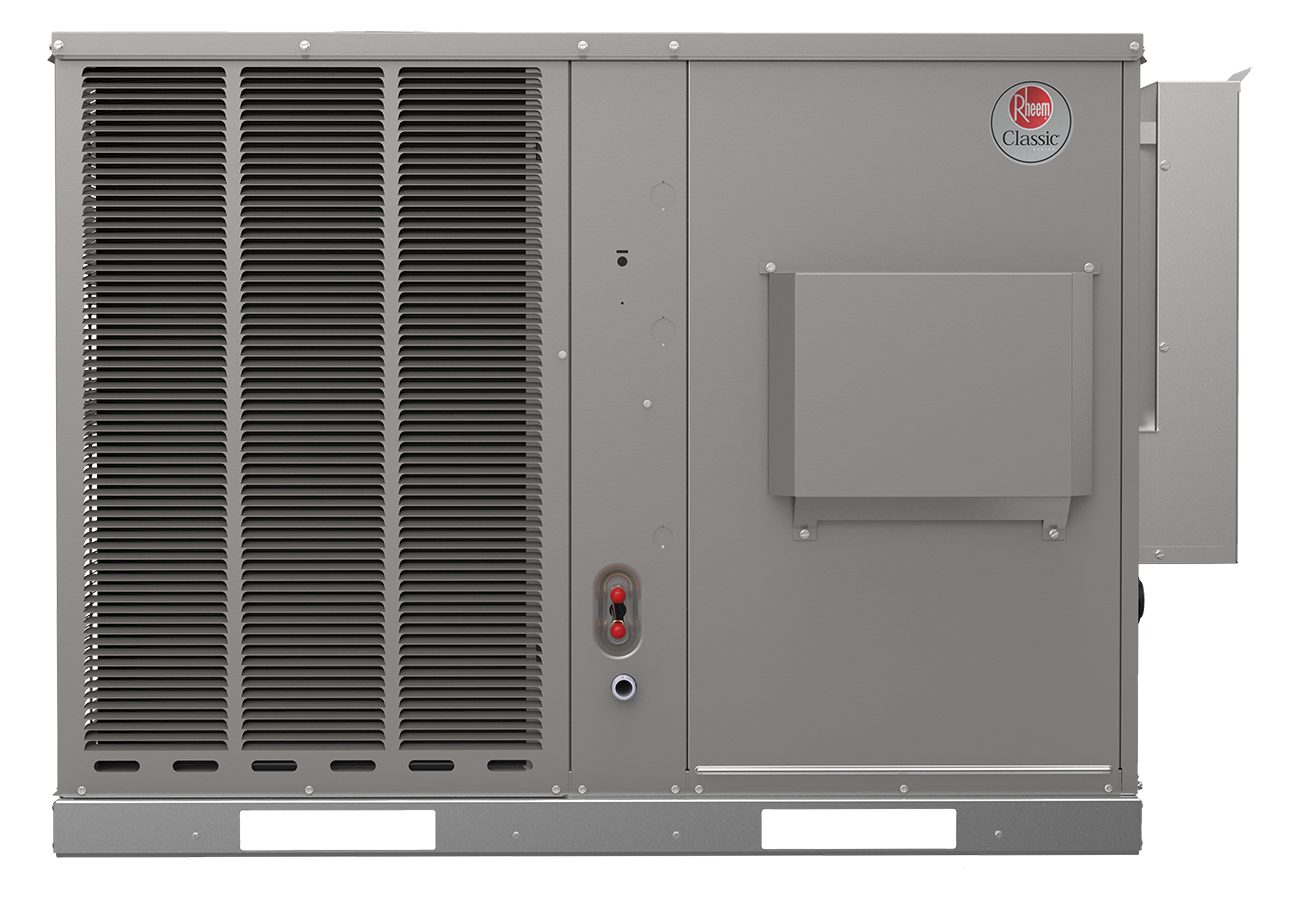

RUUD RGEAZR042AJT101NAAJA Endeavor Gas/Electric Packaged Unit 3.5 ton

Product Description

The RUUD RGEAZR042AJT101NAAJA Endeavor Gas/Electric Packaged Unit is designed for efficient HVAC performance. This unit provides a cooling capacity of three and a half tons and heating capacity of one hundred Kbtu/hr. It operates at two hundred eight to two hundred forty volts, single-phase, with energy efficiency ratings of 10.6 EER and 13.4 SEER. Featuring a micro-channel refrigerant system, it ensures effective heat exchange while allowing for simple installation via single-point wiring. This model is suitable for residential applications, combining gas heating with electric cooling.

• Micro-channel refrigerant system for optimized heat transfer.
• Convertible airflow offers versatility in installation configurations.
• Single-point wiring simplifies the setup process.

Product Highlights

This unit is ideal for residential spaces, offering flexibility and efficiency in both heating and cooling.

Product Information

Standard Information

• Type: Gas/Electric
• Brand: RUUD

Technical Specifications

• Nominal Capacity: 3.5 ton
• Heating Capacity: 100 Kbtu/hr
• Cooling Capacity: 42 Kbtu/hr
• SEER Rating: 13.4
• EER Rating: 10.6
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Width: 47.5625 inches
• Length: 52.4375 inches
• Height: 41 inches
• Manufacturer: Rheem Manufacturing
• MPN: RGEAZR042AJT101NAAJA
• CFM Rating: 1400/1510 cfm
• Compressor Type: Scroll
• Gross Weight: 481 pounds
• Refrigerant: R410A
