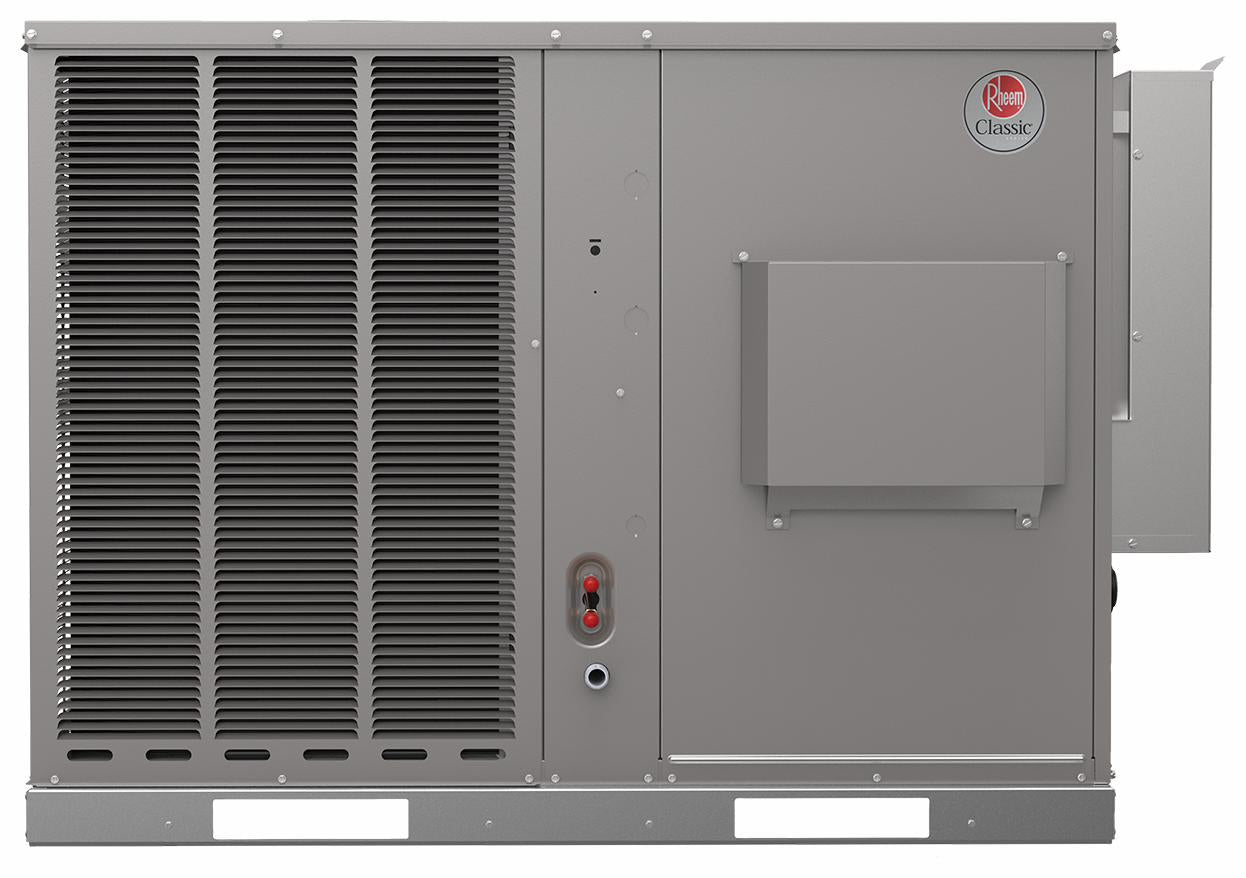

Ruud RGEAYB030AJT081NA Endeavor® Line Achiever® Series Residential Packaged Gas Electric Unit

Product Description

The RUUD RGEAYB030AJT081NA Endeavor® Line Achiever® Series Residential Packaged Gas Electric Unit features a PlusOne® Ignition System with Direct Spark Ignition (DSI) for reliability. Scroll compressors provide maximum efficiency and quiet operation. The unit has a MicroChannel evaporator and condenser coil. It operates at 208/230 V and 60 Hz with a 79 dB outdoor sound rating.

• Direct Spark Ignition (DSI) for reliability and longevity.
• Scroll Compressors provide maximum efficiency and quiet operation.
• MicroChannel Evaporator & Condenser Coil delivers superior performance.

Product Highlights

This packaged gas electric unit provides both heating and cooling in one outdoor unit, freeing up valuable space inside the home.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RGEAYB030AJT081NA

Technical Specifications

• Voltage: 208/230 V
• Frequency: 60 Hz
• Number of Phases: 1
• Outdoor Sound Rating: 79 dB
• Refrigerant Charge: 46.4 oz
• Minimum Circuit Ampacity: 22
• Minimum Overcurrent Protection Device Size: 25
• Maximum Overcurrent Protection Device Size: 30
• Gross Cooling Capacity: 29400 Btu/h
• EER2: 10.6
• SEER2: 13.4
• Nominal CFM: 1000 ft³/min
• AHRI Rated CFM: 980 ft³/min
• AHRI Net Cooling Capacity: 28400 Btu/h
• Net Sensible Cooling Capacity: 21100 Btu/h
• Net Latent Cooling Capacity: 7300 Btu/h
• Net System Power: 2.45 kW
• Heating Input: 80000 Btu/h
• Heating Output: 65000 Btu/h
• Temperature Rise Range: 35 - 65 ºF
• AFUE: 81 %
• Steady State Efficiency: 82 %
• No. Burners: 4
• No. Stages: 1
• Gas Connection Pipe Size: 1/2 in
• Type: Single-Stage Scroll
• Fin Type: Louvered
• Tube Type: MicroChannel
• MicroChannel Depth: 0.709 in
• Face Area: 7.06 ft²
• Rows: 1
• FPI: 23
• Refrigerant Control: TX Valves
• Drain Connection No.: 1
• Drain Connection Size: 0.75 in
• Type Outdoor Fan: Propeller
• No. Used Outdoor Fan: 1
• Diameter Outdoor Fan: 22 in
• Drive Type Outdoor Fan: Direct
• No. Speeds Outdoor Fan: 1
• CFM Outdoor Fan: 2400 ft³/min
• No. Motors Outdoor Fan: 1
• Horsepower Outdoor Fan: 1/3 hp
• Motor RPM Outdoor Fan: 825
• Type Indoor Fan: FC Centrifugal
• No. Used Indoor Fan: 1
• Diameter Indoor Fan: 10x9 in
• Drive Type Indoor Fan: Direct
• No. Speeds Indoor Fan: Multiple
• No. Motors Indoor Fan: 1
• Motor HP Indoor Fan: 1/2 hp
• Motor RPM Indoor Fan: 1050
• Motor Frame Size Indoor Fan: 48
• Type Filter: Disposable
• Furnished Filter: No
• No. Filters: 4
• Recommended Size Filter: 1x24x24 in
• Refrigerant Type: R-454B
