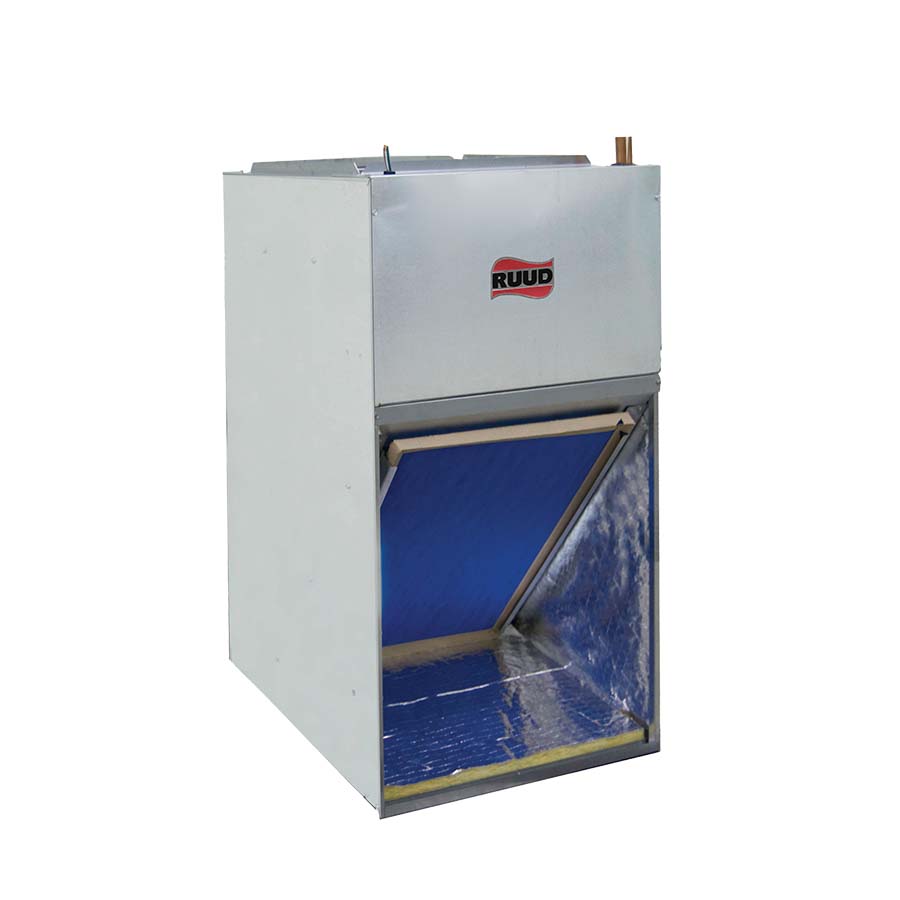

Ruud RF2TY2421STANSJB08 Air Handler 2 Ton R454B 8kw

Product Description

The RUUD RF2TY2421STANSJB08 is a wall-hung air handler designed for residential and light-commercial split systems using R454B refrigerant. Rated at 1.5 to 2 nominal tons with 24,000 BTU/h capacity, this unit operates on 208/230 volt single-phase power and includes an 8 kW electric heat strip. The front-return configuration and wall-hung orientation make it well suited for installations where floor or ceiling space is limited. Licensed HVAC technicians install this unit as the indoor section of a split-system heat pump or cooling-only system.

This air handler is intended for split-system applications requiring R454B refrigerant compatibility, a low-GWP alternative to R410A. The front-return design supports installations in utility closets, alcoves, or wall-recessed spaces where rear or bottom return access is not available. At 21 inches wide, the unit fits standard residential air handler openings. The 8 kW electric heat kit provides auxiliary or emergency heat capability without a separate field-installed heater kit.

Key Features

• R454B refrigerant compatible, a lower-GWP alternative to R410A
• 1.5 to 2 nominal ton capacity (24,000 BTU/h)
• 8 kW electric heat strip included
• 208/230 volt operation for standard residential and light-commercial electrical services
• Front-return orientation for space-constrained or closet installations
• Wall-hung design preserves floor and ceiling clearance

Compatibility

Designed as an OEM-style indoor air handler for residential split-system heat pump and cooling applications requiring R454B refrigerant and 1.5 to 2 ton matched outdoor equipment.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants, including R454B, in accordance with applicable local codes and ASHRAE 15 requirements. Disconnect and lock out all electrical power before servicing or making electrical connections. Ensure the wall mounting structure is rated to support the full operating weight of the unit before securing. Verify refrigerant line sizing, system charge, and electrical supply voltage match equipment nameplate requirements prior to startup.

Technical Specifications

• Nominal Capacity: 1.5 to 2 tons (24,000 BTU/h)
• Refrigerant: R454B
• Voltage: 208/230 volts
• Electric Heat: 8 kW
• Width: 21 inches
• Orientation: Front Return
• Mounting: Wall Hung

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RF2TY2421STANSJB08
