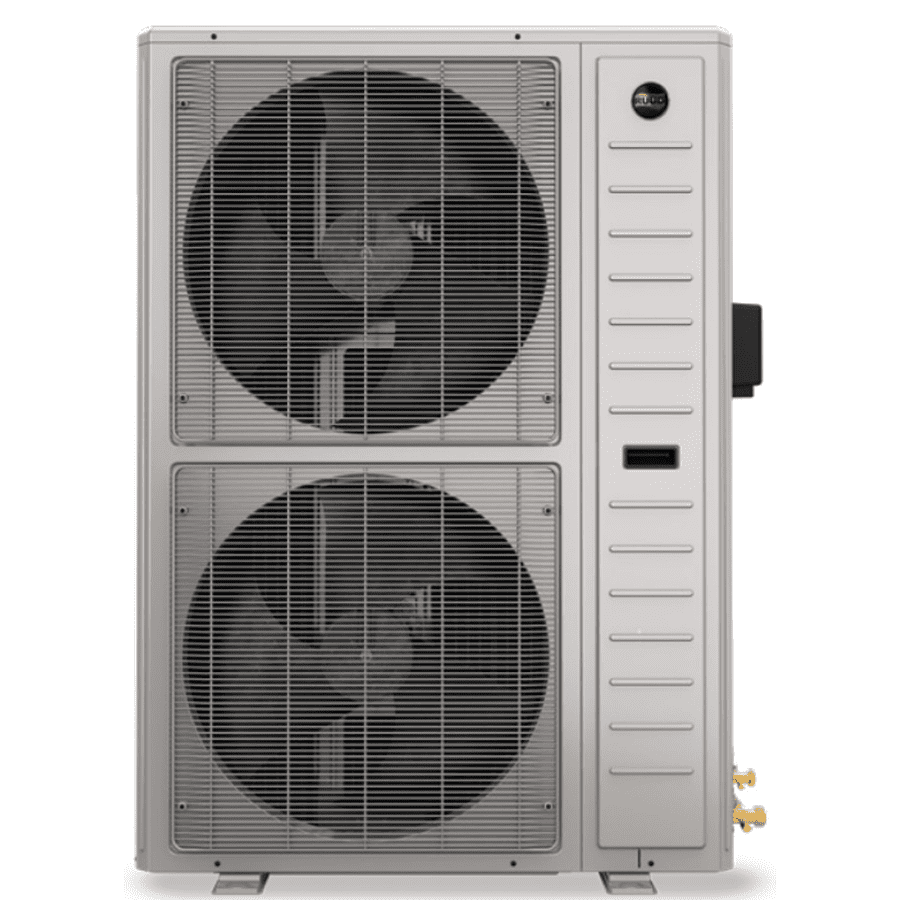

Ruud RD18AY48AJVCA Endeavor Line Prestige Series Universal Heat Pump 4 Ton

Product Description

The RUUD RD18AY48AJVCA is a 4 ton Endeavor Line Prestige Series universal heat pump. This heat pump features variable speed operation from 45 to 100% capacity and works with nearly any R-454B HVAC system. Bluetooth technology aids in quick and easy service. It operates between 50-125F for cooling and -22-70F for heating.

• Cooling & Heating Efficiency: 19 SEER2/13 EER2/10 HSPF2
• Compressor Type: Inverter Driven, Variable Speed Twin Rotary
• EcoNet Enabled for automatic system configuration and optimization

Product Highlights

The RD18AY48AJVCA heat pump offers efficient and streamlined performance with quiet operation and easy installation.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RD18AY48AJVCA

Technical Specifications

• Nominal Capacity: 48000 Btu/h
• Nominal Capacity kW: 14.07 kW
• Nominal Capacity TR: 4 TR
• Valve Connections - Liquid Line O.D.: 7/8 in
• Refrigerant (R-454B) furnished: 194 oz
• Refrigerant Type: R-454B
• Outdoor Coil - Net Face Area - Outer Coil: 17.2 ft²
• Outdoor Coil - Tube Diameter: 0.276 in
• Outdoor Coil - Number of rows: 3
• Outdoor Coil - Fins per inch: 16
• Outdoor Fan - Diameter: 24 in
• Outdoor Fan - Number of blades: 3
• Outdoor Fan - Motor hp: 1/3 hp
• Outdoor Fan - Nos: 2
• Outdoor Fan - CFM: 4350 ft³/min
• Outdoor Fan - Motor RPM: 550
• Outdoor Fan - Watts: 191 W
• Sound Level: 61 dB
• Operating Weight: 296 lb
• Voltage: 208 to 230 V
• Frequency: 60 Hz
• Number of Phases: 1
• Maximum Overcurrent Protection: 40.0 A
• Minimum Circuit Ampacity: 38.0 A
• Compressor - Rated Load Amps: 6.1 A
• Compressor - Locked Rotor Amps: 61 A
• Condenser Fan Motor - Full Load Amps: 2.5 A
• Condenser Fan Motor - Locked Rotor Amps: 4.1 A
• Height: 58 in
• Length: 40.4 in
• Width: 19.8 in
• Application: Heat Pump
• SEER2 (Up to): 18
• Tons: 4
• Brand: RUUD
• Model: RD18AY48AJVCA
• Category: Heat Pumps
• Refrigerant: R-454B
• Type: Fully Variable
