Ruud RCHZ6024STANVU Uncased Evaporator Coil 5 Ton

Product Description

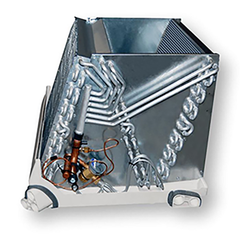

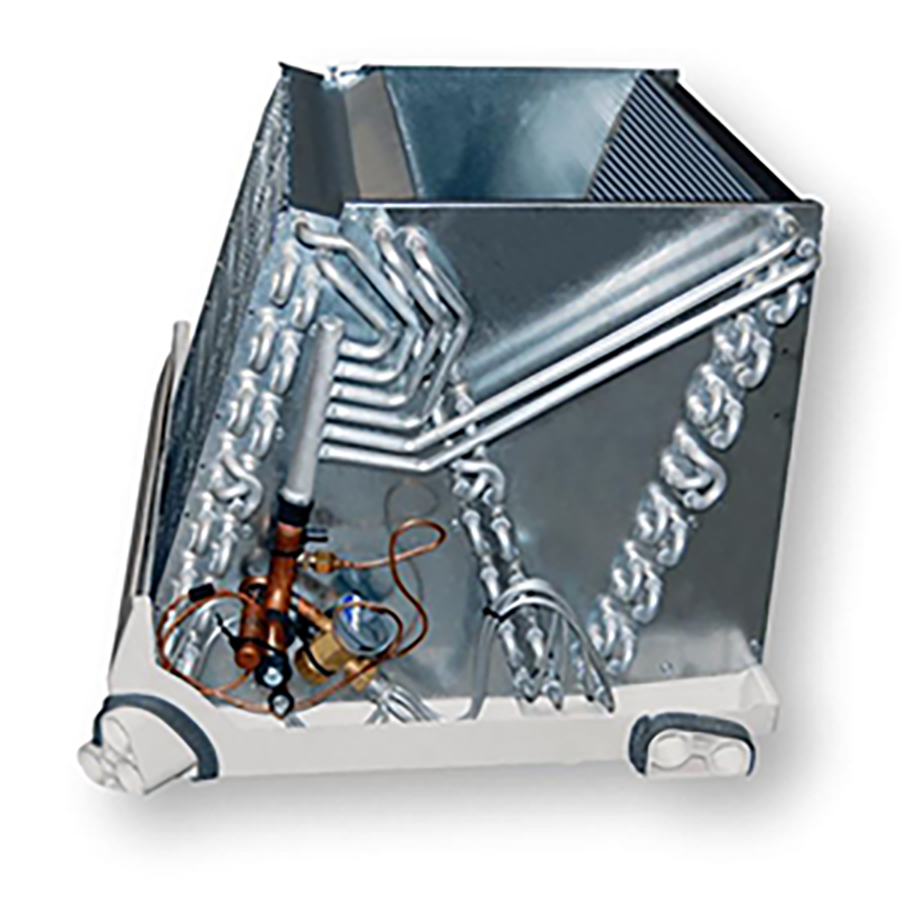

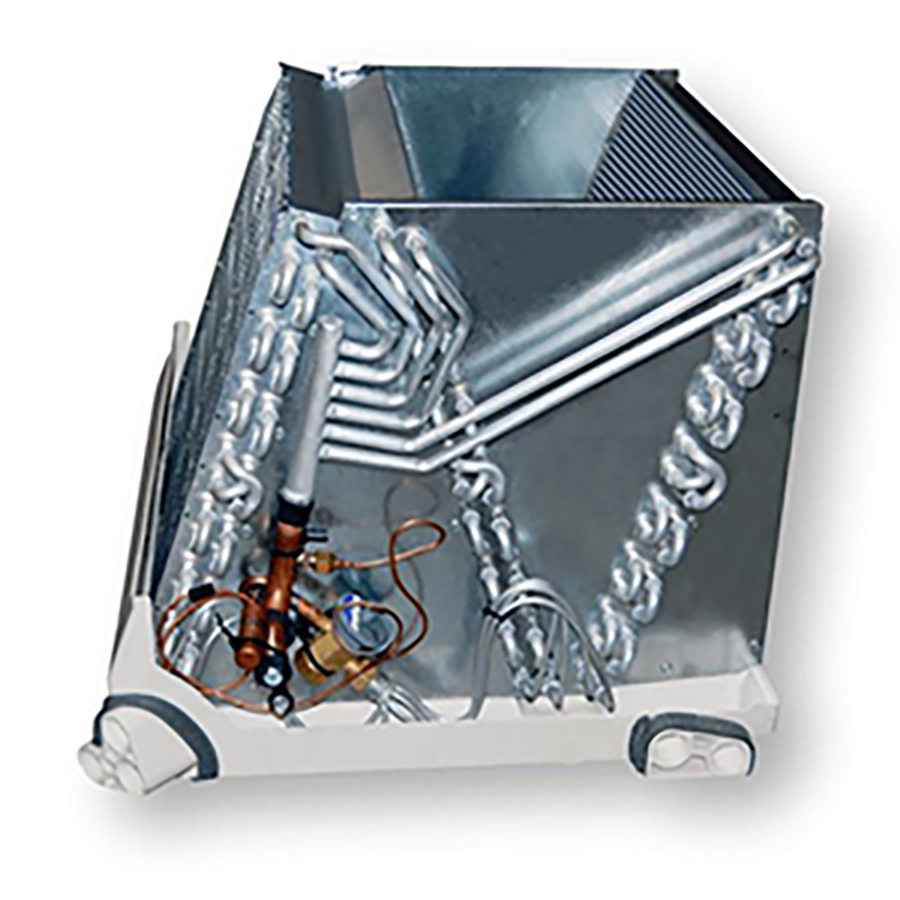

The RUUD RCHZ6024STANVU is an uncased vertical evaporator coil rated at 5 tons (60,000 BTU/h) for use in split-system air conditioning and heat pump applications. The uncased aluminum construction allows the coil to be installed inside a matching air handler cabinet or furnace casing, making it a common choice for retrofit and new-installation work where a cased coil is not required. At 24.5 inches wide, the coil is sized to fit standard residential and light commercial air handler configurations. Licensed HVAC technicians handle installation as part of a complete split-system assembly.

This coil is suited for residential and light commercial cooling systems where an uncased, multi-position evaporator coil is specified. The multi-position orientation means it can be configured for upflow, downflow, or horizontal installations depending on the air handler arrangement. It is intended to be used inside an existing or new cabinet, making it a practical option for equipment replacement or system upgrades where the original coil has failed or the system is being upsized. No specific compatible model numbers were provided in the product data.

Key Features

• 5-ton (60,000 BTU/h) cooling capacity for residential and light commercial applications
• Uncased design fits inside standard air handler or furnace cabinets
• Aluminum coil construction for corrosion resistance and efficient heat transfer
• 24.5-inch width fits standard residential cabinet configurations
• Multi-position orientation supports upflow, downflow, and horizontal installs
• Replacement coil designation supports direct swap in existing systems

Compatibility

Designed as an OEM-style replacement uncased evaporator coil for use in residential and light commercial split-system air conditioning and heat pump applications requiring a 5-ton, 24.5-inch wide coil.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect and lock out all electrical power and recover any refrigerant in the system before opening the refrigerant circuit, in accordance with EPA Section 608 regulations. The coil must be installed inside a properly sized cabinet to ensure an airtight seal and correct airflow across the coil face. Do not pressurize or charge the system until all connections have been leak-tested per standard industry practice.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h (5 Tons)
• Nominal Tons: 4 (nominal rating per supplier data)
• Orientation: Multi-position
• Casing: Uncased
• Width: 24.5 inches
• Material: Aluminum
• Replacement Coil: Yes

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCHZ6024STANVU
