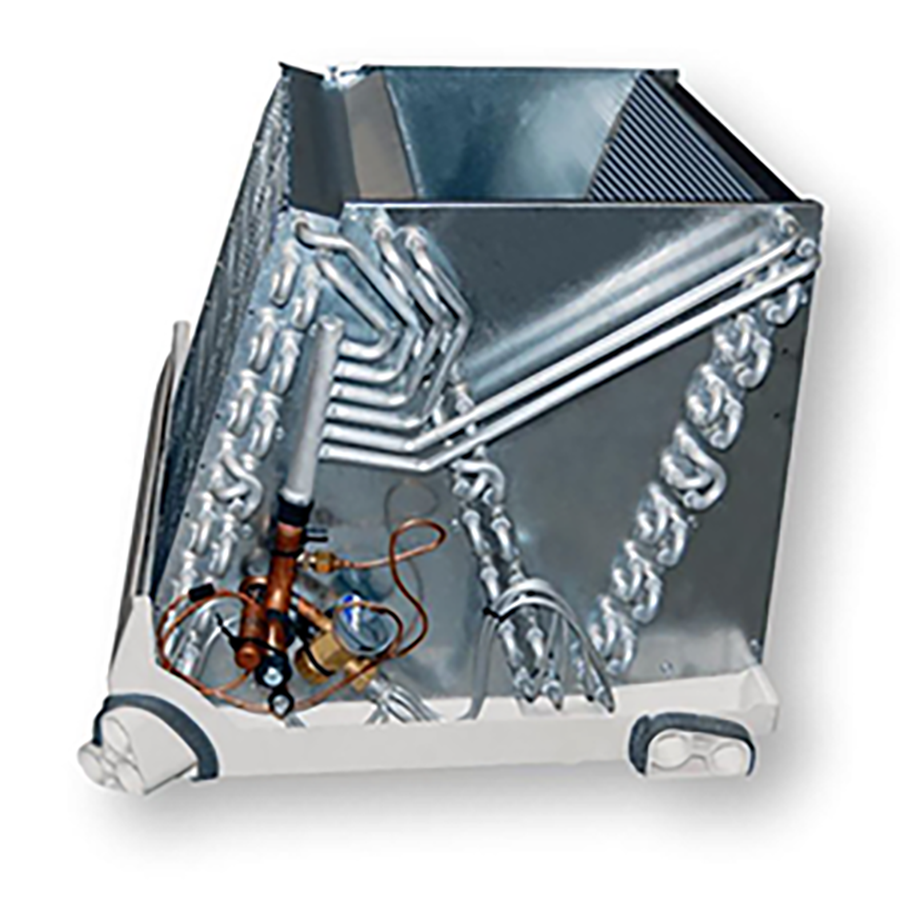

Ruud RCHZ2417STANVU Evaporator Coil Uncased 2 Ton 21 in

Product Description

The RUUD RCHZ2417STANVU is an uncased evaporator coil rated at 2 tons (24,000 BTU/h) and designed for multi-position installation in residential and light commercial split-system air conditioning and heat pump applications. The coil ships without a factory casing, giving installing contractors the flexibility to fit it into a wide variety of air handler cabinets and field-fabricated enclosures. Built with aluminum construction, this coil is a direct replacement-style component installed by licensed HVAC technicians during new system builds or coil changeouts. Its 21-inch width makes it compatible with common air handler cabinet sizes found in residential systems.

This evaporator coil suits residential split-system cooling installations where an uncased coil is preferred or required for retrofitting into an existing air handler cabinet. The multi-position orientation means it can be installed in upflow, downflow, or horizontal configurations depending on the system layout. HVAC contractors working on both new installations and replacement jobs will find this coil appropriate for standard 2-ton system applications. No specific compatible model list was provided by the manufacturer for this SKU.

Key Features

• 2-ton (24,000 BTU/h) capacity suits standard residential cooling loads
• Uncased design allows installation into a wide range of existing or custom air handler cabinets
• Multi-position orientation supports upflow, downflow, and horizontal installations
• 21-inch width fits common residential air handler cabinet dimensions
• Aluminum construction for corrosion resistance and efficient heat transfer
• Replacement coil design for direct swap-out during coil changeouts

Compatibility

Designed as an OEM-style replacement uncased evaporator coil for 2-ton residential and light commercial split-system air conditioning and heat pump systems requiring a 21-inch wide coil in a multi-position configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer instructions. Disconnect and lock out all electrical power and recover system refrigerant per EPA Section 608 regulations before removing the existing coil. Ensure the cabinet or enclosure is sealed properly around the coil to prevent air bypass, which reduces system efficiency. Verify refrigerant line connections are leak-tested before recharging the system.

Technical Specifications

• Capacity: 24,000 BTU/h (2 Tons)
• Casing: Uncased
• Orientation: Multi-Position
• Width: 21 inches
• Material: Aluminum
• Replacement Coil: Yes

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCHZ2417STANVU
