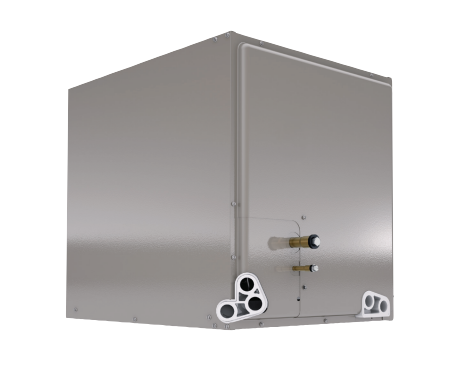

Ruud RCFZ6024STANMC Endeavor Line Series RCFZ Furnace Coil 5 ton 60000 BTU/hr

Product Description

The Ruud RCFZ6024STANMC Endeavor Line Series RCFZ furnace coil is suitable for use with Ruud outdoor units. It supports vertical upflow or downflow installations and horizontal airflow configurations. When paired with compatible Ruud outdoor units, it delivers a capacity of sixty thousand BTU per hour.

• Constructed with aluminum fins bonded to internally grooved aluminum tubing
• Factory tested for refrigerant leaks to ensure quality and reliability
• Equipped with copper sweat refrigerant connections

Product Highlights

This coil offers a versatile design for different airflow setups and is ideal for efficient climate control in residential and commercial applications.

Product Information

Standard Information

• Series: Line Series
• Model: RCFZ

Technical Specifications

• Nominal Capacity: 5 ton
• BTU/hr: 60000 BTU/hr
• Configuration: Multi-Poise
• Refrigerant: R-410A
• Coil Type: Cased
• Rows: 3
• CFM: 600 to 1900 CFM
• Face Area: 9.98 ft²
• Width: 24.5 inches
• Shipping Weight: 110 lbs.
• Dimensions: 24.5 x 21.7 x 32 inches
• Connections Liquid/Suction: 3/8 inch / 7/8 inch
