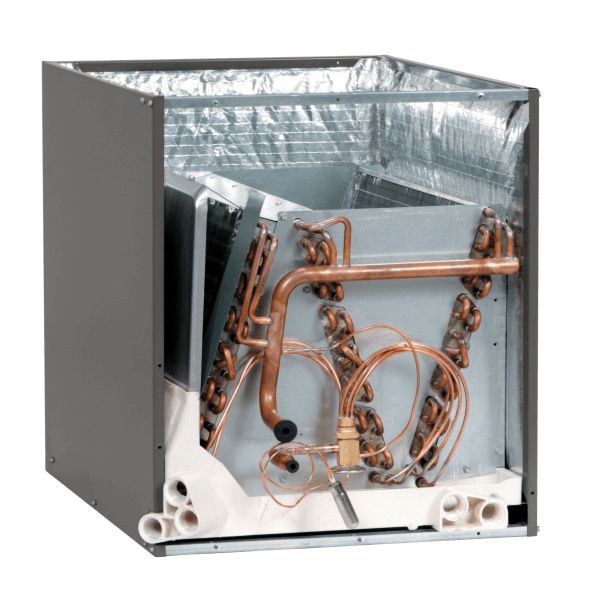

Ruud RCFZ3617STANMC Endeavor Line Series RCFZ Furnace Coil 36000 Btu/hr

Product Description

The Ruud RCFZ3617STANMC furnace coil is part of the Endeavor Line Series. It has a nominal capacity of 2.5 tons and can handle up to 36000 Btu/hr. This coil is designed to work with Ruud outdoor units, supporting multiple airflow configurations including vertical upflow, downflow, horizontal left, and right. It includes a TXV metering device and features two three-quarters inch NPT condensate drain connections.

• Aluminum fins bonded to internally grooved aluminum tubing
• Factory tested for refrigerant leaks
• Compatible with Germicidal Light System and UV resistant

Product Highlights

Efficient construction with durable materials ensures reliable performance for your HVAC system.

Product Information

Standard Information

• Brand: Ruud
• Category: Evaporator Coils

Technical Specifications

• Refrigerant Type: R-410A
• BTU Rating: 36000 Btu/hr
• Model Number: RCFZ3617STANMC
• Application: Cased Furnace Coil
• Configuration: Multi-Poise
• Connections Liquid/Suction: 3/8 inches / 3/4 inches
• Metering Device: TXV
• Shipping Weight: 54 lbs
• Item Weight: 49 lbs
• Dimensions: 21.6875 inches x 17 inches x 25.875 inches
