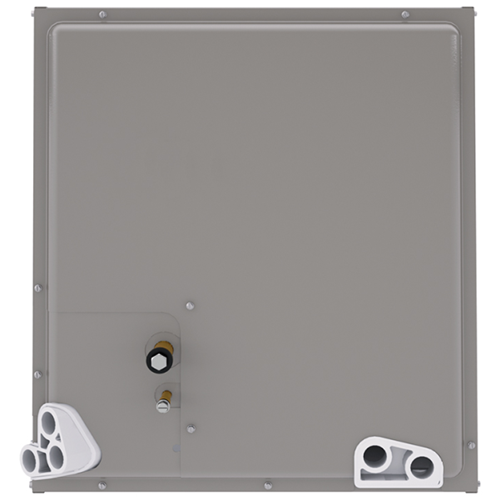

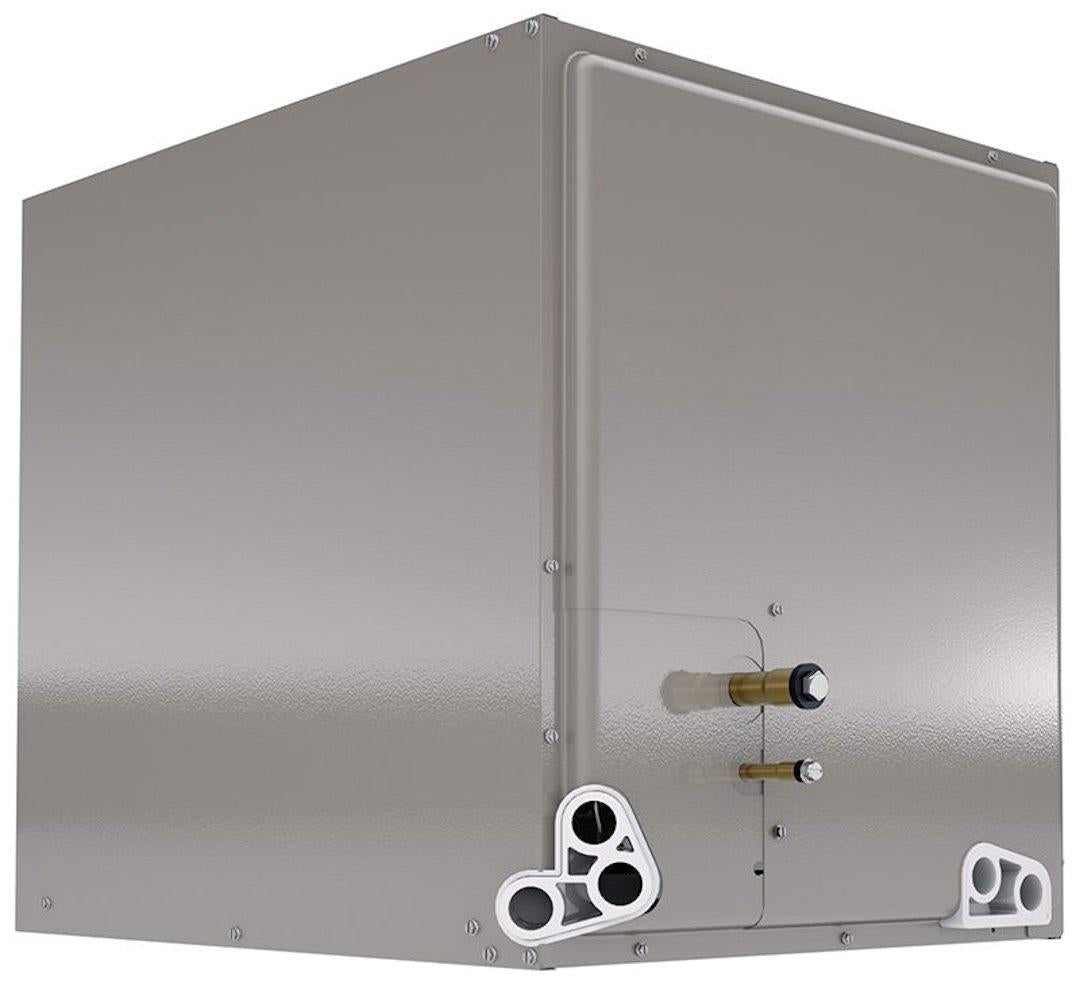

Ruud RCFY6024STANMC Cased Coil R454B

Product Description

The Ruud RCFY6024STANMC is a cased furnace coil designed for HVAC systems. This coil features aluminum fins bonded to internally grooved aluminum tubing for efficient heat transfer. It is factory-tested with an extensive refrigerant leak check and includes copper sweat refrigerant connections. It is suitable for use with various Rheem outdoor units.

• Constructed with aluminum fins and internally grooved aluminum tubing
• Factory tested for refrigerant leaks
• Compatible with gas and oil furnaces

Product Highlights

The Ruud RCFY6024STANMC is engineered for performance in HVAC applications, providing reliable efficiency in heating and cooling.

Product Information

Standard Information

• Application: Cased Furnace Coil
• Tonnage: 5

Technical Specifications

• Refrigerant Type: R454B
• Cabinet Width: 24.5 inches
• Efficiency: Standard
• Connections Liquid/Suction: 3/8 inch / 7/8 inch
• Dimensions: 24.5 x 21.7 x 32 inches
• Shipping Weight: 110 pounds
• CFM Rating: 600 to 1900 cfm
• Fuel Type: Gas, Oil
• BTU Rating: 60000 Btu/hr
• Material: Aluminum
• Air Flow: Multi-Position
• A2L Compatible: Yes
• Coil Type: Evaporator
• Configuration: Multi-Position
• Indoor Outdoor: Indoor
• Liquid Line: 3/8 inch
• Refrigeration Control Type: TXV
• Suction Line: 7/8 inch
• UL Listed: Yes
• Width: 24.5 inches
• Height: 32 inches
• Length: 21.7 inches
