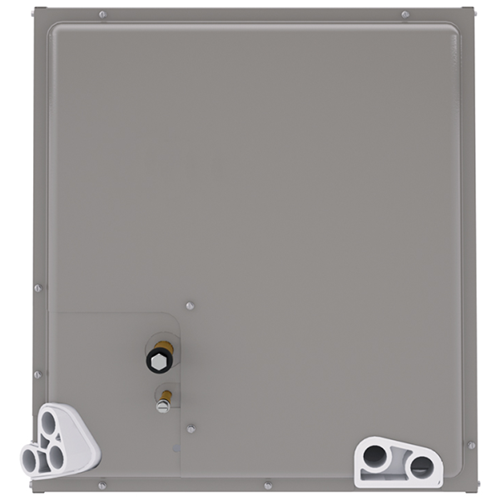

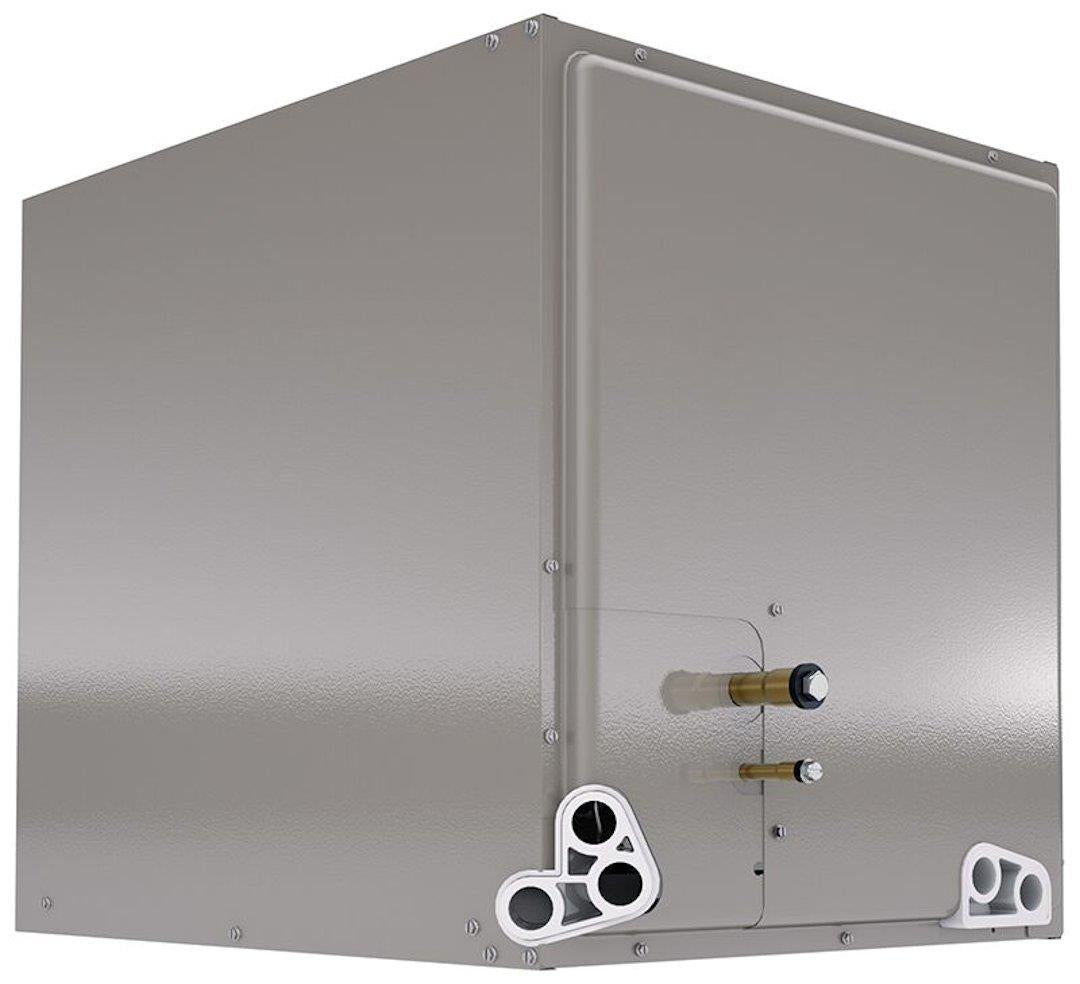

Ruud RCFY6021STAAMC R454B Cased A-Coil 5 Tonnage 21 inches

Product Description

The RUUD RCFY6021STAAMC R454B Cased A-Coil is designed for cased furnace coil applications. This A-coil features a 5 tonnage capacity and a 21-inch cabinet width. It is constructed with aluminum fins bonded to internally grooved aluminum tubing and is factory tested for refrigerant leaks.

• Constructed of Aluminum Fins Bonded to Internally Grooved Aluminum Tubing
• Coils are Tested at the Factory with an Extensive Refrigerant Leak Check
• Coils have Copper Sweat Refrigerant Connection

Product Highlights

This R454B cased A-coil is compatible with germicidal light systems and approved for system application with a variety of Rheem outdoor units. Its bi-directional airflow and unique drain pan design maximize application flexibility.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCFY6021STAAMC

Technical Specifications

• Application: Cased Furnace Coil
• Tonnage: 5
• Refrigerant Type: R454B
• Cabinet Width (Inches): 21
• Efficiency: Standard
• Casing: Cased
• Connections Liquid/Suction (Inch): 3/8 / 7/8
• Dimensions Width x Depth x Height (Inches): 21 x 21.7 x 34.5
• Metering Device: TXV
