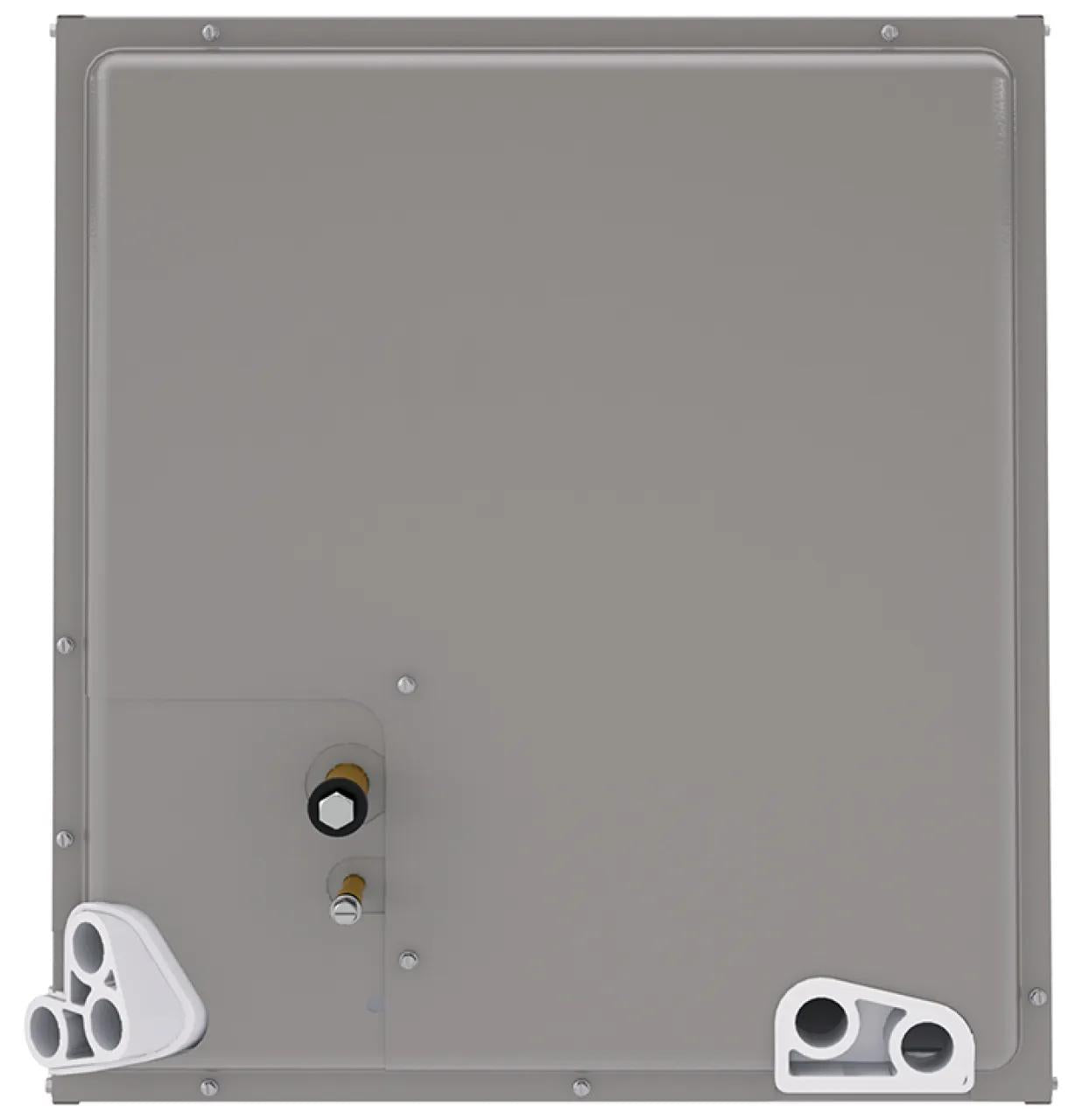

Ruud RCFY4824MTANMC med-eff cased coil R454B 4 ton

Product Description

The RUUD RCFY4824MTANMC MED-EFF CASED COIL is a 4-ton medium efficiency cased furnace coil designed for use with R454B refrigerant. It features aluminum fins bonded to internally grooved aluminum tubing and copper sweat refrigerant connections. The unique drain pan design maximizes application flexibility and condensate removal. The N-Coil design maximizes performance.

• Constructed of Aluminum Fins Bonded to Internally Grooved Aluminum Tubing
• Coils are Tested at the Factory with an Extensive Refrigerant Leak Check
• Coils have Copper Sweat Refrigerant Connection

Product Highlights

This 4-ton cased coil is designed for use with R454B refrigerant and compatible with a variety of Rheem outdoor units and germicidal light systems.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCFY4824MTANMC

Technical Specifications

• Application: Cased Furnace Coil
• Tonnage: 4
• Refrigerant Type: R454B
• Cabinet Width (Inches): 24.5
• Efficiency: Medium
• Casing: Cased
• Connections Liquid/Suction (Inch): 3/8 / 7/8
• Metering Device: TXV
• Air Flow: Multi-Position
• Air Flow Type: Multi-Position
• Nominal Capacity: 4 ton
• Cooling Capacity: 48000 Btu/hr
• Enclosure Type: Cased
• Flow Rate: 600 to 1900 cfm
• Liquid Line Size: 3/8 in
• Series: RCFY
• Suction Line Size: 7/8 in
• Tubing Material: Aluminum
• Brand: RUUD®
• Manufacturer: Rheem Manufacturing
