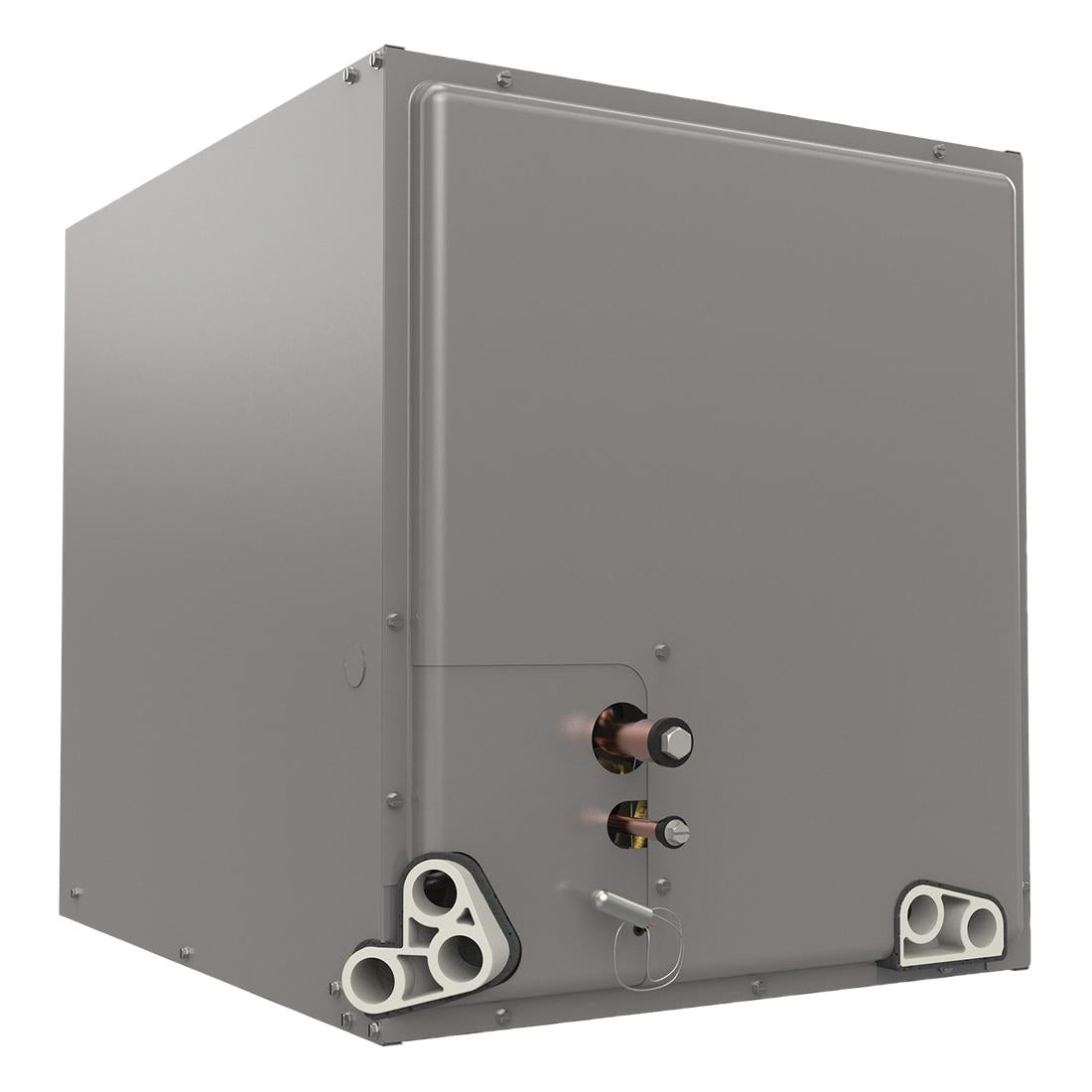

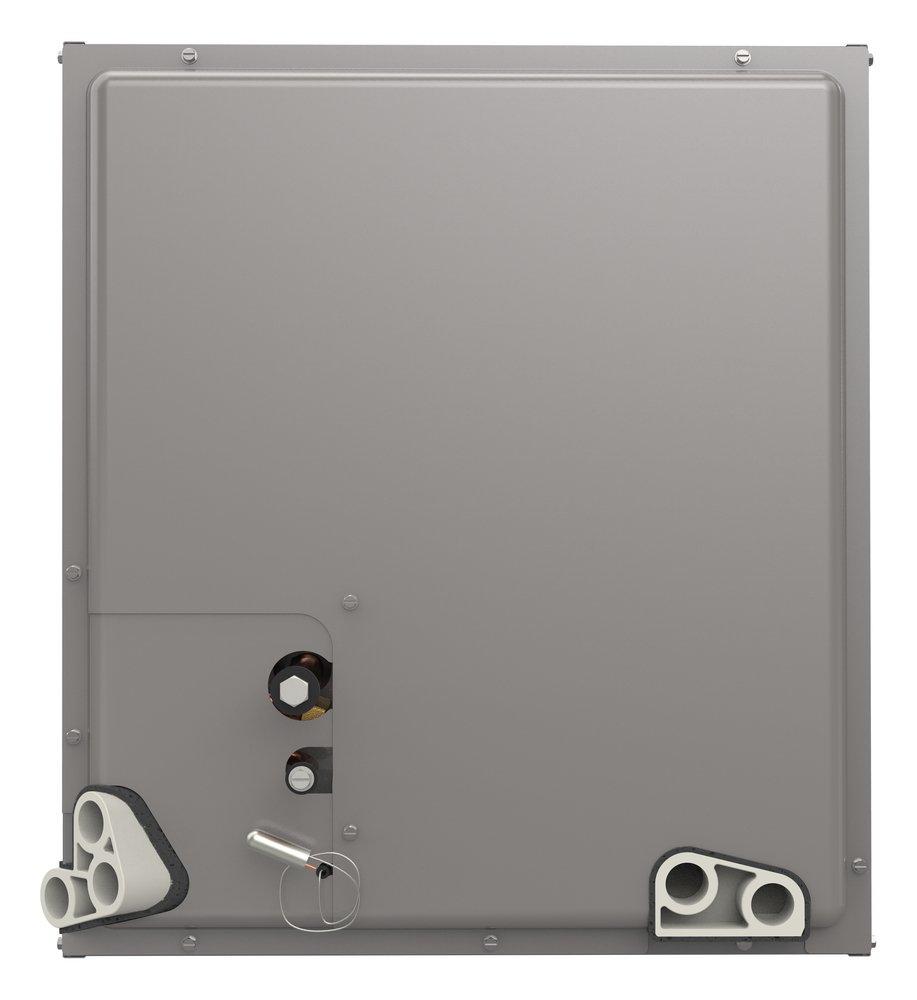

Ruud RCFY3621MTANMC Endeavor RCFY3621STANMC Cased Coil 36000 Btu/hr

Product Description

The RUUD RCFY3621MTANMC Endeavor RCFY3621STANMC is a cased coil designed for use with RUUD outdoor units. This NPT connection coil has a 36000 Btu/hr rating and is suitable for gas and oil furnaces. It features a standard efficiency and a TXV metering device with a multi-poise orientation and utilizes R-454B refrigerant.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Features two sets of 3/4" N.P.T. Condensate drain connections for ease of connection
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right

Product Highlights

The RUUD Endeavor cased coil is AHRI certified and compatible with a Germicidal Light System. Its unique drain pan design maximizes application flexibility and condensate removal.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCFY3621MTANMC

Technical Specifications

• Type: Coil
• BTU: 36000
• BTU Cooling Rating: 36000 Btu/h
• CFM: 1200
• Casing: Cased
• Coil Type: Evaporator
• Collection: Endeavor® Line
• Configuration: Multi-Position
• Height: 20-1/2
• Indoor Outdoor: Indoor
• Length: 21-11/16
• Liquid Line (OD): 3/8
• MBH: 36
• Material: Aluminum
• Phase: Single Phase
• Refrigerant: R-454B
• Refrigeration Control Type: TXV
• Suction Line (OD): 3/4
• Tonnage: 3 Ton
• UL Listed: Yes
• UPC: 662021710049
• Width: 21
• A2L Compatible: Yes
