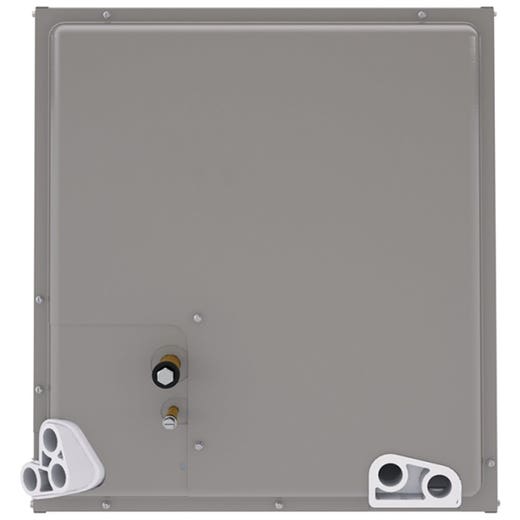

Ruud RCFY2417STANMC Cased Coil R454B 2 Ton

Product Description

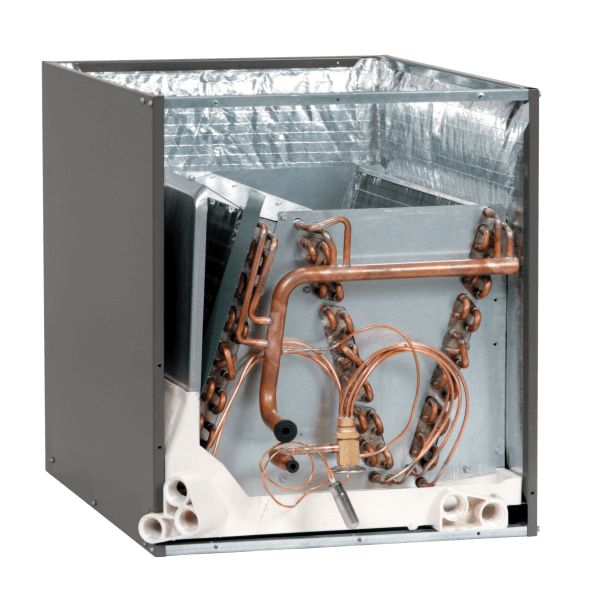

The Ruud RCFY2417STANMC cased coil is ideal for use with Ruud outdoor units. This two-ton coil has aluminum fins attached to internally grooved aluminum tubing for enhanced efficiency. Each coil undergoes a thorough factory test to check for refrigerant leaks. It is compatible with germicidal light systems and features a specially designed drain pan.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Factory tested with extensive refrigerant leak checks
• Includes copper sweat refrigerant connection

Product Highlights

This coil is designed for optimal performance and reliability in heating and cooling applications.

Product Information

Standard Information

• Application: Cased Furnace Coil
• Tonnage: 2 Ton

Technical Specifications

• Refrigerant Type: R-454B
• Cabinet Width: 17.5 inches
• Efficiency: Standard
• Casing: Cased
• Connections Liquid/Suction: 3/8 inch / 3/4 inch
• Dimensions Width x Depth x Height: 17.5 x 21.7 x 20 inches
• Metering Device: TXV
• Shipping Weight: 48 pounds
• Item Weight: 43 pounds
• CFM Rating: 600 to 1900 CFM
• Series: RCFY Series
• Compatible with: Gas and Oil Furnaces
• BTU Rating: 24000 BTU/hr
• Connection Type: NPT
• Material: Aluminum
• A2L Compatible: Yes
• Coil Type: Evaporator
• Configuration: Multi-Position
• Height: 20.5 inches
• Indoor/Outdoor: Indoor
• Length: 21.6875 inches
• Liquid Line (OD): 3/8 inch
• Refrigeration Control Type: TXV
• Suction Line (OD): 3/4 inch
• UL Listed: Yes
• Nominal Capacity: 24000 BTU
• Coil Enclosure: Cased
• Depth: 21.6875 inches
• Parts Warranty: 10 years (if registered as a system only)
