Ruud RCF4824HTAMCA Cased Evaporator Coil 4 Ton Txv

Product Description

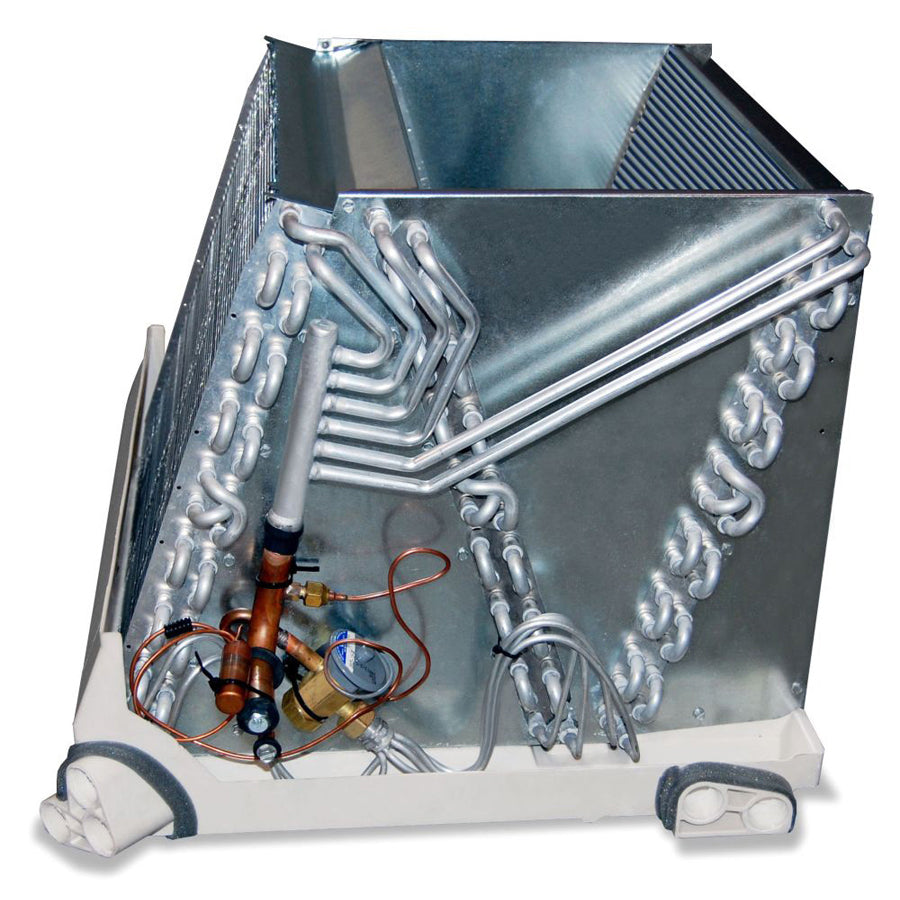

The RUUD RCF4824HTAMCA is a 4-ton cased evaporator coil rated at 48,000 BTU/h, designed for installation in residential and light-commercial gas or oil furnace systems. It ships with a factory-installed TXV metering device and is compatible with both R-22 and R-410A refrigerants, as well as heat pump applications. The cabinet measures 21.75 inches wide, 24.5 inches tall, and 32 inches deep, and is fully lined with 5/8-inch foil-faced insulation to limit heat gain and cabinet air leakage. Licensed HVAC technicians install this coil as part of a split-system or package replacement. The multi-position orientation supports horizontal, upflow, and downflow configurations depending on the install scenario.

The RCF4824HTAMCA is suited for residential forced-air systems paired with gas or oil furnaces and compatible split-system condensing units. Its multi-position design makes it adaptable to a range of equipment room layouts, including horizontal attic installations and vertical closet applications. The 3/4-inch by 3/8-inch refrigerant line connections accommodate standard residential line set sizing. Where piston metering is preferred instead of TXV, the coil includes an externally accessible piston body for straightforward field conversion.

Key Features

• High-efficiency lanced fin design for improved heat transfer across the coil face
• R-22 and R-410A compatible, suitable for AC and heat pump split systems
• TXV metering device factory-installed; externally accessible piston body allows field piston swap
• Microban antimicrobial additive in the UV-resistant, high-temperature polymer drain pan inhibits mold and mildew growth
• Dual 3/4-inch FPT condensate drains on both front-left and front-right positions for flexible drainage routing
• Copper refrigerant connections with long stubs support brazing on both copper and aluminum slab models
• Intertek lab-tested cabinet air leakage at 1 percent or less for improved system efficiency
• Made in USA with a 5-year warranty

Compatibility

Designed as an OEM-style cased evaporator coil replacement for residential and light-commercial gas and oil furnace split systems using R-22 or R-410A refrigerant. Compatible with AC and heat pump condensing units sized to match the 4-ton, 48,000 BTU/h capacity rating.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's instructions. Shut off all electrical power and close the refrigerant service valves before opening the system. Braze refrigerant connections using nitrogen purge to prevent oxidation scale inside the tubing. Verify proper condensate drain slope and trap configuration before returning the system to service.

Technical Specifications

• Capacity: 48,000 BTU/h (4 Ton)
• Metering Device: TXV
• Refrigerant Compatibility: R-22, R-410A
• Orientation: Multi-position
• Width: 21.75 inches
• Height: 24.5 inches
• Depth: 32 inches
• Refrigerant Line Size: 3/4 inches x 3/8 inches
• Condensate Drain: Dual 3/4-inch FPT, front-left and front-right
• Cabinet Insulation: 5/8-inch foil-faced
• Cabinet Air Leakage: 1 percent or less (Intertek lab tested)
• Drain Pan Material: High-temperature engineered polymer, UV resistant, 450 degrees F rated
• Country of Origin: USA
• Warranty: 5 years

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCF4824HTAMCA
