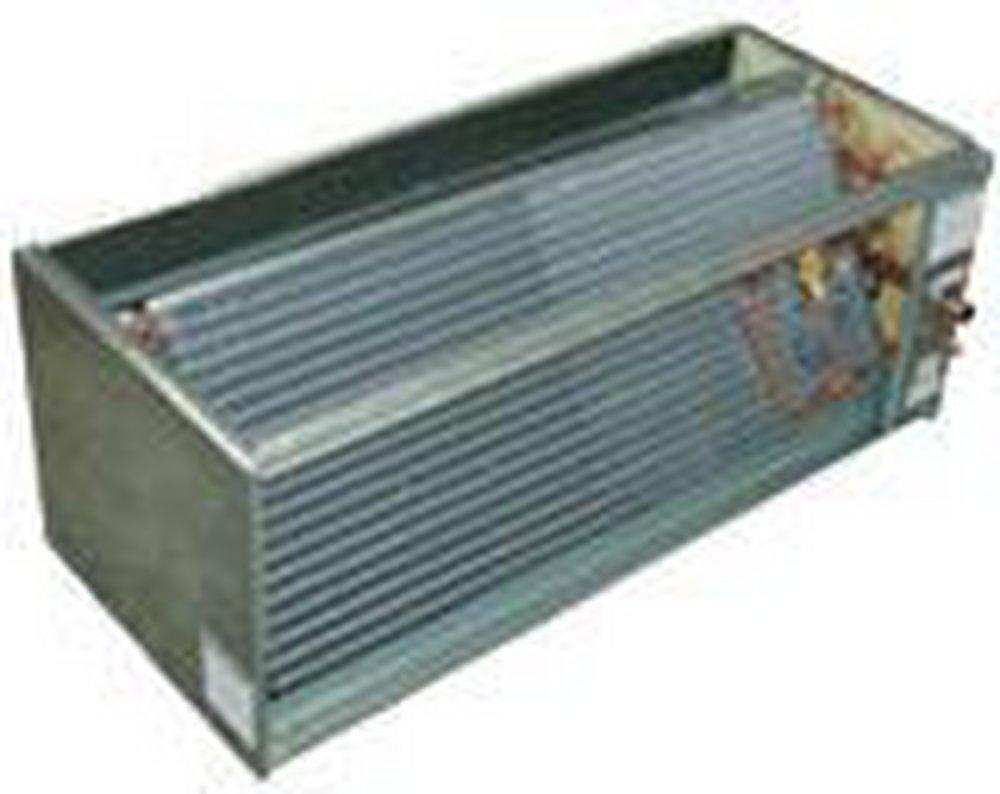

Ruud RCCL-D5013S 6.5/7.5 Ton Cased Coil Upflow Only

Product Description

The Ruud RCCL-D5013S is a 6.5/7.5 ton cooling coil designed for use with gas furnaces, oil furnaces, and commercial condensing units using R-410A refrigerant. It features a single circuit coil with a mounted expansion valve in an assembled and insulated plenum. The coil is constructed with a 20-gauge galvanized sheet metal cabinet.

• Single circuit coil with mounted expansion valve
• Designed for dual furnace applications
• Constructed with 20-gauge galvanized sheet metal

Product Highlights

This Ruud cooling coil is ideal for upflow gas or oil furnace applications requiring 6.5 to 7.5 tons of cooling capacity.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RCCL-D5013S

Technical Specifications

• Type: Cooling Coil, Single Circuit
• Used On: Gas Furnaces/Oil Furnace, Commercial Condensing Unit, R-410A Refrigerant
• Material: Sheet Metal
• Color Finish: Galvanized
• Series/Model: RCCL
• Used On Item: Upflow Gas/Oil Furnace
• Applicable Standard: UL (Canada and US), AHRI
• CATALOG NUMBER: RCCL-D5013S
• Manufacturer Name: Ruud
• Manufacturer Part Number: RCCL-D5013S
• Air Flow Rate: 4800 CFM
• Temperature Rating: 80 Deg F (Indoor), 95 Deg F (Outdoor)
• Cabinet Material: 20 Gauge Galvanized Sheet Metal
• Nominal Ton: 6.5/7.5 Ton
• Coil Face Area: 12.57 Square Foot
• Coil Tube Diameter: 3/8 Inch
• Configuration: Upflow
• Refrigerant: R-410A
• BTU: 116000
• Refrigeration Control Type: TXV
• Tonnage: 7.5 Ton
