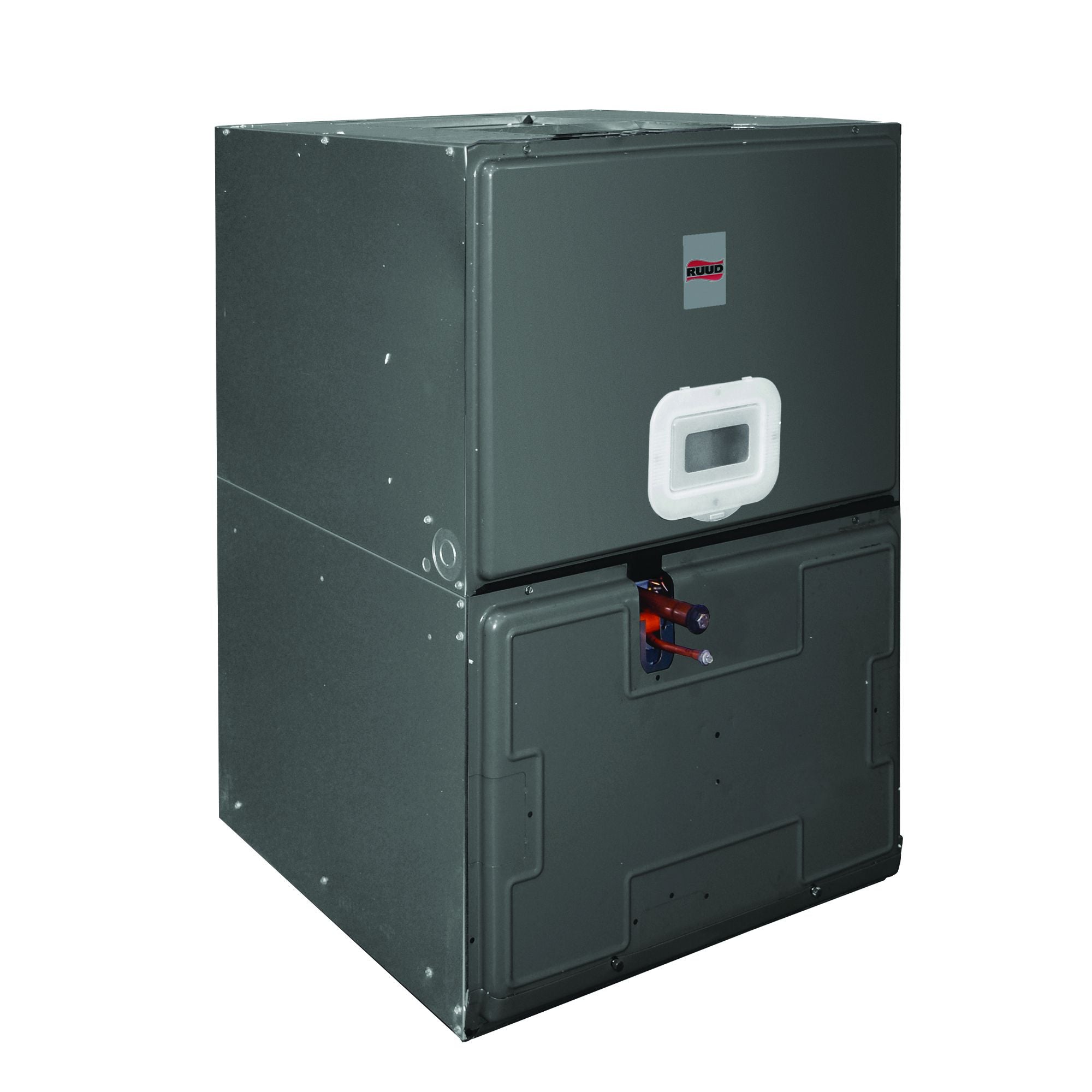

Ruud RB2TY3621STANMJB10 Endeavor Line Air Handler 36000 BTU/H

Product Description

The Ruud RB2TY3621STANMJB10 Endeavor Line Air Handler is built for effective heating and cooling with a capacity of thirty-six thousand BTUs per hour. This air handler operates quietly due to its two-stage design and solid cabinet construction, which includes one inch of foil-faced insulation. Its compact structure stands thirty-five inches tall, with four-way field convertible options.

• Two-Stage, Quiet Operation
• Compact Design with 4-Way Conversion
• Constructed with Rugged Steel

Product Highlights

This unit is designed for sustainability, using R-454B refrigerant and featuring the PlusOne Refrigerant Detection System.

Product Information

Standard Information

• Brand: Ruud
• Product Type: Air Handler

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Refrigerant: R-454B
• Cooling Capacity: 30000 BTU/H
• Dimensions: 22.5 in Depth x 21 in Width x 35 in Height
• Weight: 109 lb
• Air Conditioning Maximum Cool: 1350 ft³/min
• Electric Heating Maximum: 11 kW
• Parts Warranty: 10 Years (If Registered)
• Compressor Warranty: 10 Years (If Registered)
• Model Number: RB2TY3621STANMJB10
