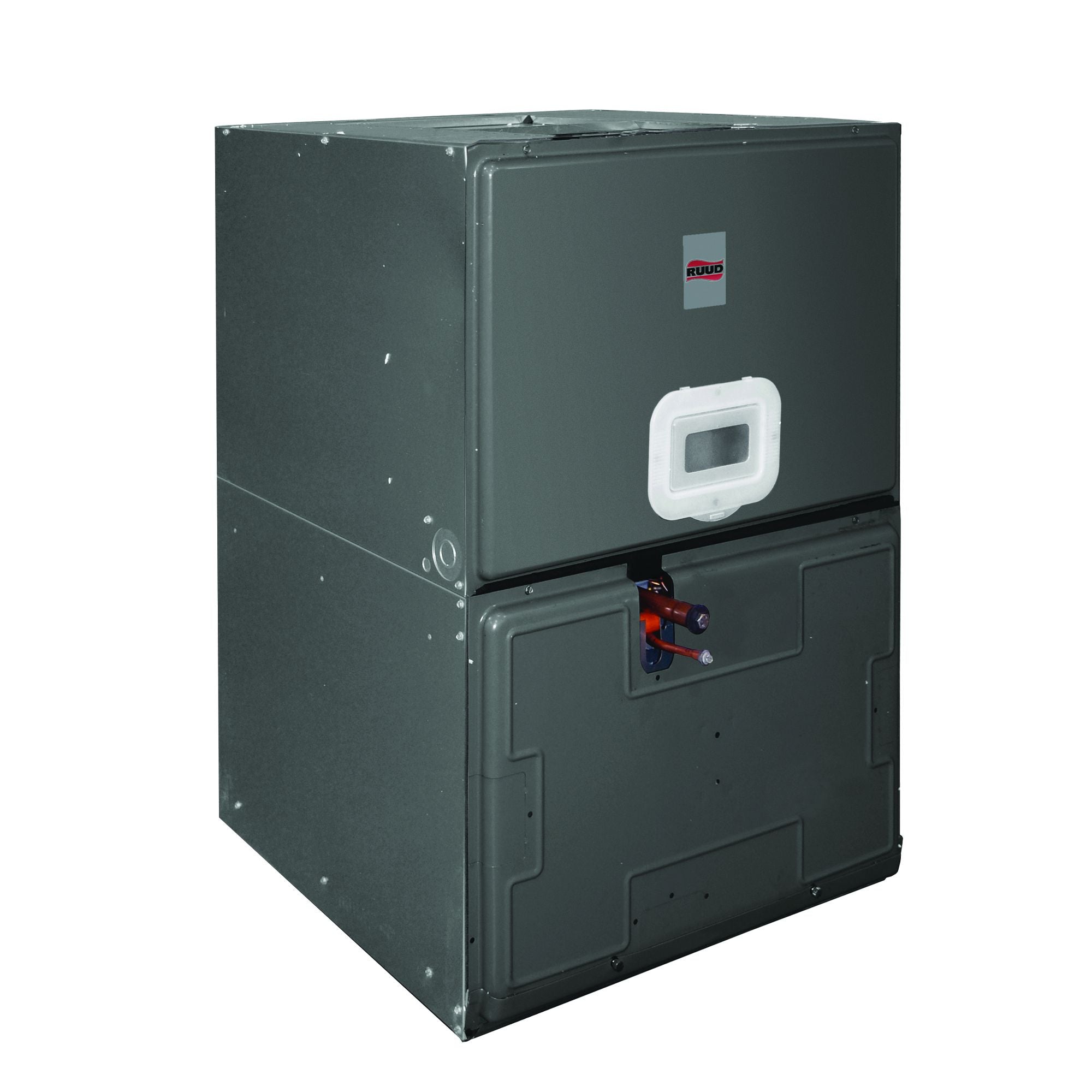

Ruud RB2TY2417STANMJB07 Endeavor Line Air Handler 24000 Btu/hr

Product Description

The Ruud RB2TY2417STANMJB07 Endeavor Line Air Handler offers efficient heating and cooling with a capacity of twenty-four thousand BTU per hour. It features a sturdy cabinet with one inch of foil faced insulation, resulting in quieter operation. With its versatility, this unit can be configured for vertical upflow, vertical downflow, or horizontal airflow, making it suitable for a wide range of installations.

• Quiet operation due to insulated cabinet construction.
• Rugged steel cabinet for durability and strength.
• Compact design with four-way field convertible options.

Product Highlights

This air handler is designed for multipurpose use, featuring two-stage airflow for enhanced comfort and energy efficiency.

Product Information

Standard Information

• Type: Multipurpose Air Handler
• Brand: Ruud

Technical Specifications

• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Motor Type: Constant Torque Motor (ECM)
• Refrigerant: R-454B
• Nominal Capacity: 24000 Btu/hr
• Motor Amps: 1.8 A
• Height: 35 inches
• Width: 17.5 inches
• Depth: 22.5 inches
• Air Flow Configuration: Multiposition
• Blower Motor: 1/3 hp
• Cooling Capacity: 18000 Btu/hr
