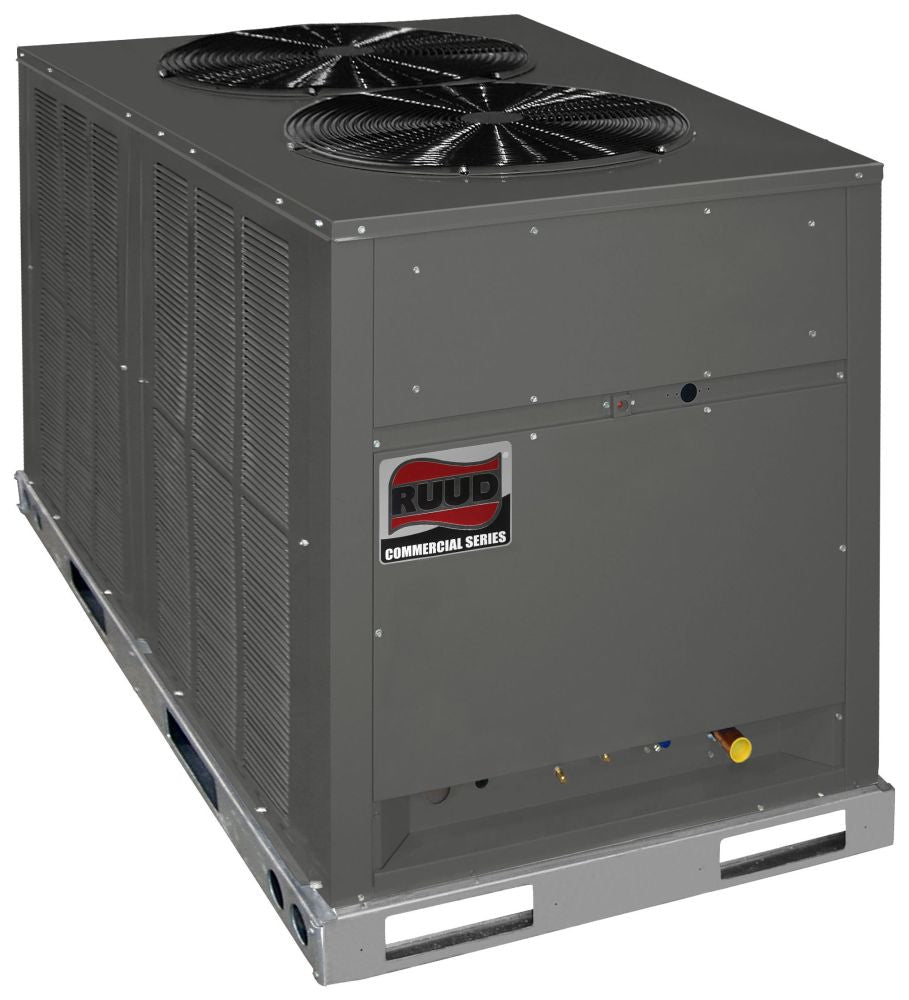

Ruud RAWL-150CAZ Air Conditioner Outdoor Unit 12.5 Ton

Product Description

The RUUD RAWL-150CAZ is a 12.5 Ton air conditioner outdoor unit designed for commercial applications. This 2-stage, high-efficiency unit features a scroll compressor and operates at 208/230 Volt AC and 60 Hertz with 3 phases. Constructed with ASTM B117 steel and a galvanized finish, it is suitable for ground or rooftop installation. The unit includes a thermostat for temperature control and utilizes R410A refrigerant.

• Equipped with low-pressure control to stop compressor operation if refrigerant is lost.
• Features a service valve standard on liquid and suction lines.
• Includes a transformer step-down type from line to 24 Volt, providing control circuit voltage.

Product Highlights

Durable and tested at the factory, the RAWL-150CAZ ensures efficient cooling with a focus on reliability and performance.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RAWL-150CAZ

Technical Specifications

• Cooling Capacity: 12.5 Ton
• Voltage Rating: 208/230 Volt AC
• Frequency Rating: 60 Hertz
• Number Of Phases: 3
• Operating Temperature: 75 to 115 Deg F
• Installation: Ground/Rooftop
• Enclosure Material: ASTM B117 Steel
• Enclosure Finish: Galvanized
• Approval: UL (Canada and US), CSA
• Connection Type: Lug
• Temperature Control Type: Thermostat
• Type: 2-Stage, High Efficiency, Scroll Compressor, Standard
• Current Rating: 22.4 Amp Rated Load/149 Amp Locked Rotor (Compressor), 4.8 Amp Full Load (Fan Motor)
• Minimum Circuit Ampacity Rating: 56 Amp
• Energy Efficiency Ratio: 11.1 EER, 14.6 IEER
• Refrigerant Type: R410A
• Airflow Rate: 8000 CFM (Outdoor Coil), 5000 CFM (Indoor Coil)
• Sound Level Rating: 88 Decibel
