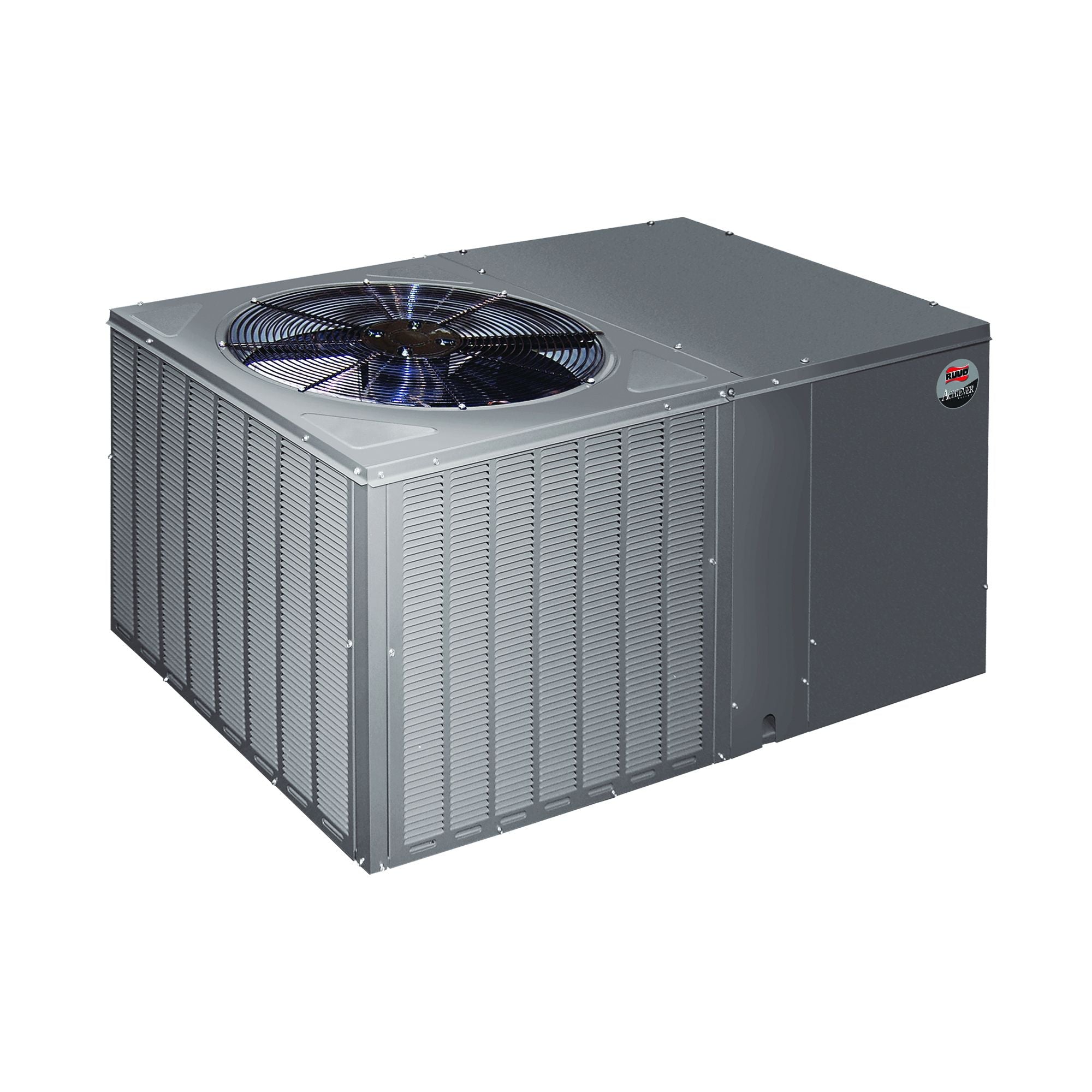

Ruud RACBYB060AJT000NA Endeavor Line Achiever Series Residential Packaged 60000 Btu/h

Product Description

The Ruud RACBYB060AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner is designed for effective cooling in residential applications. This model features scroll compressors, which enhance efficiency and ensure quiet operation. Its MicroChannel technology in evaporator and condenser coils improves performance while reducing the refrigerant needed for operation.

• Scroll compressors for efficient and quiet cooling.
• MicroChannel technology reduces refrigerant usage.
• Thermal expansion valves provide precise control and reliability.

Product Highlights

This air conditioner is a robust solution for residential cooling needs.

Product Information

Standard Information

• Brand: Ruud
• Model Number: RACBYB060AJT000NA

Technical Specifications

• Nominal Cooling Capacity: 60000 Btu/h
• EER: 10.6
• SEER: 13.4
• Nominal CFM: 2003 ft³/min
• AHRI Rated CFM: 2000 ft³/min
• AHRI Net Cooling Capacity: 57000 Btu/h
• Net Sensible Capacity: 40210 Btu/h
• Net Latent Capacity: 16790 Btu/h
• Net System Power: 5.38 kW
• Refrigerant Type: R-454B
• Electrical Phase: 1
• Weight: 384 lb
• Dimensions: 37.125 in H x 59 in W x 33 in D
