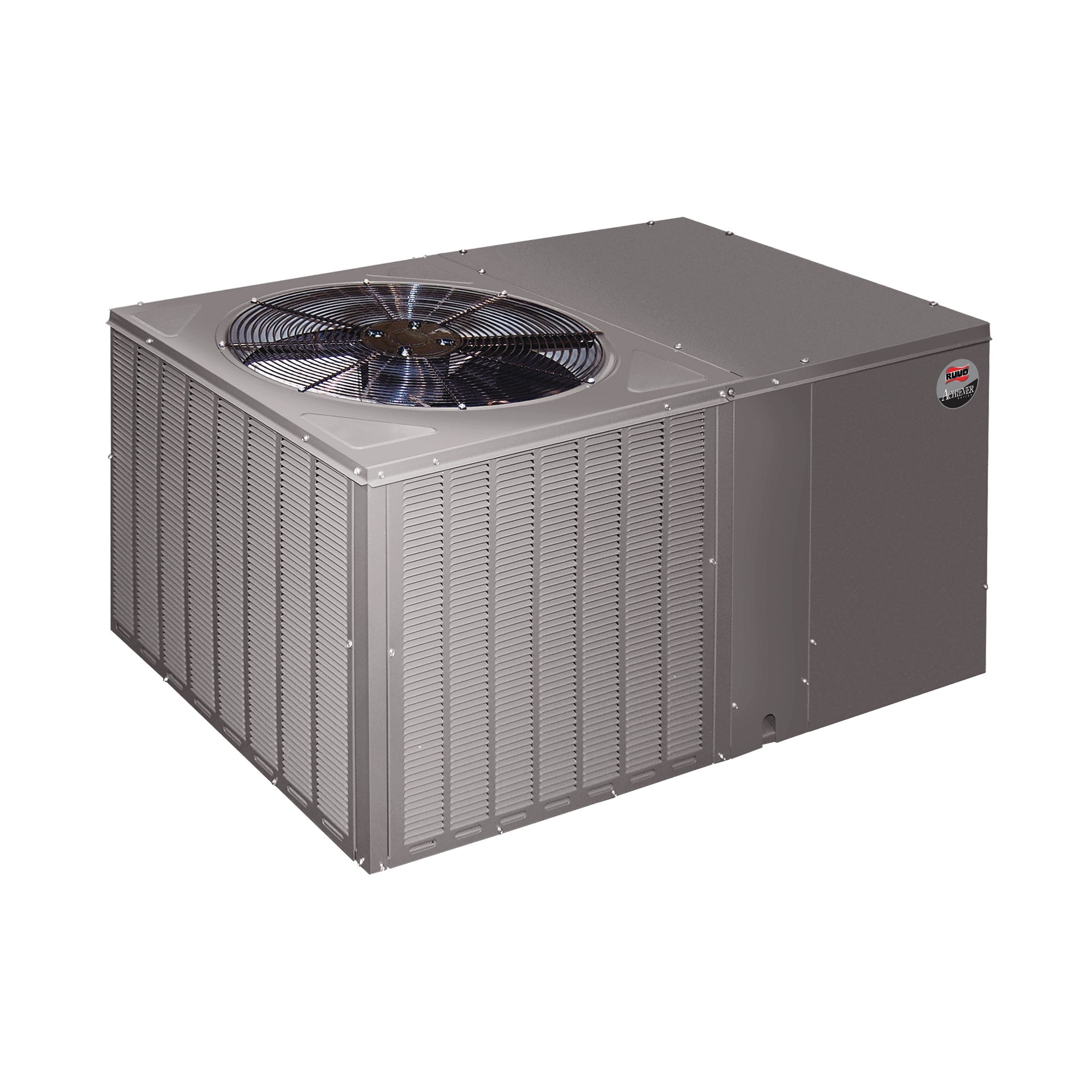

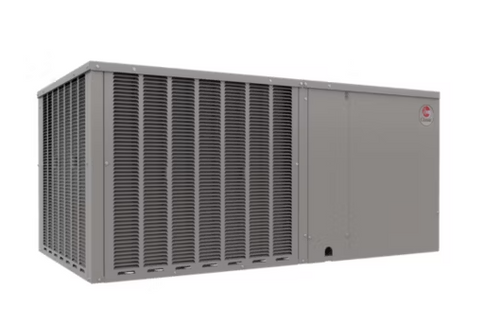

Ruud RACBYB024AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner

Product Description

The RUUD RACBYB024AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner delivers efficient cooling. Features include scroll compressors for efficiency and quiet operation, and a MicroChannel coil for superior performance. Designed with a focus on sustainability, this air conditioner uses a low GWP refrigerant. It also has an easily accessible control box and slide-out blower section.

• Scroll compressors provide maximum efficiency and quiet operation.
• MicroChannel coil delivers superior performance and requires less refrigerant.
• Metal base rails protect from ground moisture and allow for easy maneuverability.

Product Highlights

This packaged air conditioner offers reliable cooling with a space-saving design and is ideal for residential applications.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RACBYB024AJT000NA

Technical Specifications

• Voltage: 208/230 V
• Frequency: 60 Hz
• Number of Phases: 1
• Sound Level: 81 dB
• Refrigerant Charge: 1474 oz
• Minimum Circuit Ampacity: 20
• Minimum Overcurrent Protection: 25
• Maximum Overcurrent Protection: 30
• Shipping Weight: 304 lb
• Weight: 277 lb
• Nominal Cooling Capacity: 24000 Btu/h
• EER2: 10.6
• SEER2: 13.4
• Nominal CFM: 753 ft ³/min
• AHRI Rated CFM: 750 ft ³/min
• AHRI Net Cooling Capacity: 22800 Btu/h
• Net Sensible Capacity: 16084 Btu/h
• Net Latent Capacity: 6716 Btu/h
• Net System Power: 2.15 kW
• Compressor Type: Single-Stage Scroll
• Fin Type: Louvered
• Tube Type: MicroChannel
• MicroChannel Depth: 0.47 in
• Face Area: 10.1 ft²
• Rows: 1
• FPI: 23
• Refrigerant Control: TX Valves
• Drain Connection No.: 1
• Drain Connection Size: 1 in
• Type: FC Centrifugal
• No. Used: 1
• Diameter: 10x9 in
• Drive Type: Direct
• No. Speeds: Multiple
• CFM: 3400 ft ³/min
• No. Motors: 1
• Horsepower: 1/2 hp
• Motor RPM: 1050
• Motor Frame Size: 48
• Furnished: No
• No. Filters: 1
• Recommended Size: 1x20x16 in
• Depth: 33 in
• Width: 59 in
• Height: 29 1/8 in
• Refrigerant Type: R-454B
• Nominal Capacity: 2.0 Ton
• Voltage Rating: 208-230/60/1
• Amp(s): 30
• Cooling Btu: 22,800
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Parts Warranty (Years): 10
• Compressor Warranty (Years): 10
• UPC #: 633190290489
• Total Shipping Weight (lbs.): 304
• Length (Inches): 59
• Ton Size: 2 Ton
• SEER Rating: 13.4 SEER2
• EER Rating: 13.4 SEER 2 / 10.6 EER 2
• Sound Rating: As low as 81 dB
• Heater Kit: Included
• Conditional Parts (Residential Applications): 10 Years
• Compressor (Residential Applications): 10 Years
• Parts (Commercial Applications): 1 Year
• Compressor (Commercial Applications): 5 years
• Heating Type: Electric
• Heating Size: 5 KW
• Equipment Condition: New
• Equipment Location (City): Ft. Pierce
• Equipment Location (State): Florida
• Brand: RHEEM
• Efficiency Rating: 13.4 SEER2
• Model - PKG Unit: RACBYB024AJT000NA
• Duct Configuration: Horizontal
• Application Type: Residential
• Electrical: 208/230 Volt-1 Phase
