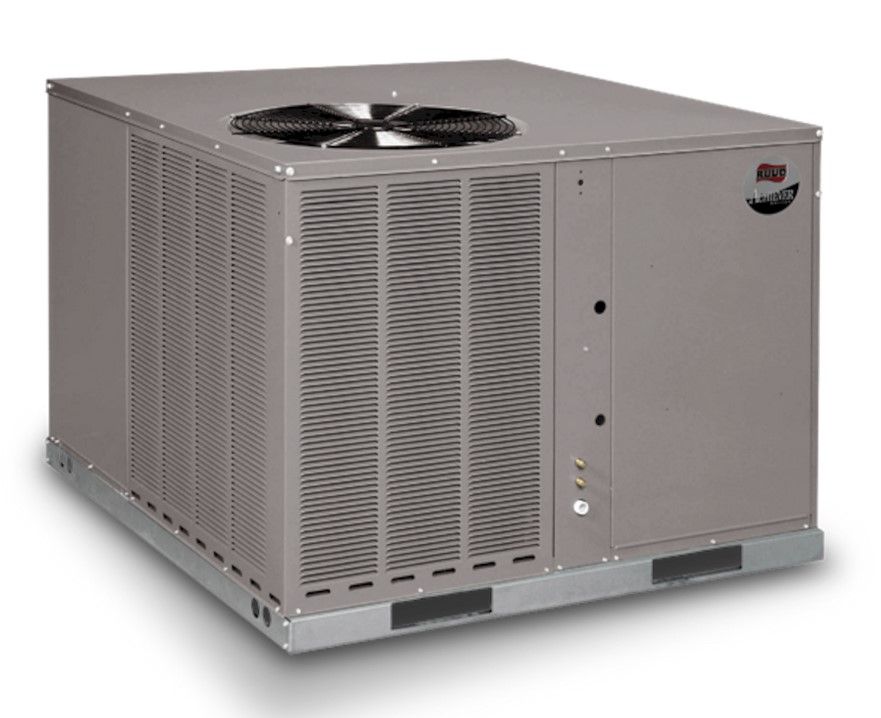

Ruud RACAYB036AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner

Product Description

The Ruud RACAYB036AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner is designed for effective cooling in residential settings. This unit features a scroll compressor that enhances efficiency while operating quietly. Equipped with a MicroChannel evaporator and condenser coil, it promotes superior heat exchange performance and reduced weight compared to traditional designs. The system includes thermal expansion valves for precise superheat control, ensuring optimal energy efficiency.

• Scroll compressors ensure high efficiency and quiet operation.
• MicroChannel coils provide superior heat transfer and reduced overall weight.
• Thermal expansion valves enable precise control of superheat for enhanced energy savings.

Product Highlights

This air conditioner is ideal for residential use, combining innovative technology with convenient accessibility features such as a control box and slide-out blower section for maintenance.

Product Information

Standard Information

• Brand: Ruud
• MPN: RACAYB036AJT000NA

Technical Specifications

• Gross Cooling Capacity: 35600 Btu/h
• EER2: 10.6
• SEER2: 13.4
• Nominal CFM: 1200 ft³/min
• AHRI Rated CFM: 1180 ft³/min
• AHRI Net Cooling Capacity: 34200 Btu/h
• Net Sensible Cooling Capacity: 24900 Btu/h
• Net Latent Cooling Capacity: 9300 Btu/h
• Net System Power: 2.80 kW
• Compressor Type: Scroll
• Outdoor Coil Fin Type: Louvered
• Outdoor Coil Tube Type: MicroChannel
• Indoor Coil Refrigerant Control: TX Valves
• Dimensions Depth: 50 13/16 inches
• Dimensions Width: 47 1/2 inches
• Dimensions Height: 35 15/16 inches
• Voltage: 208/230 V
• Refrigerant Type: R-454B
