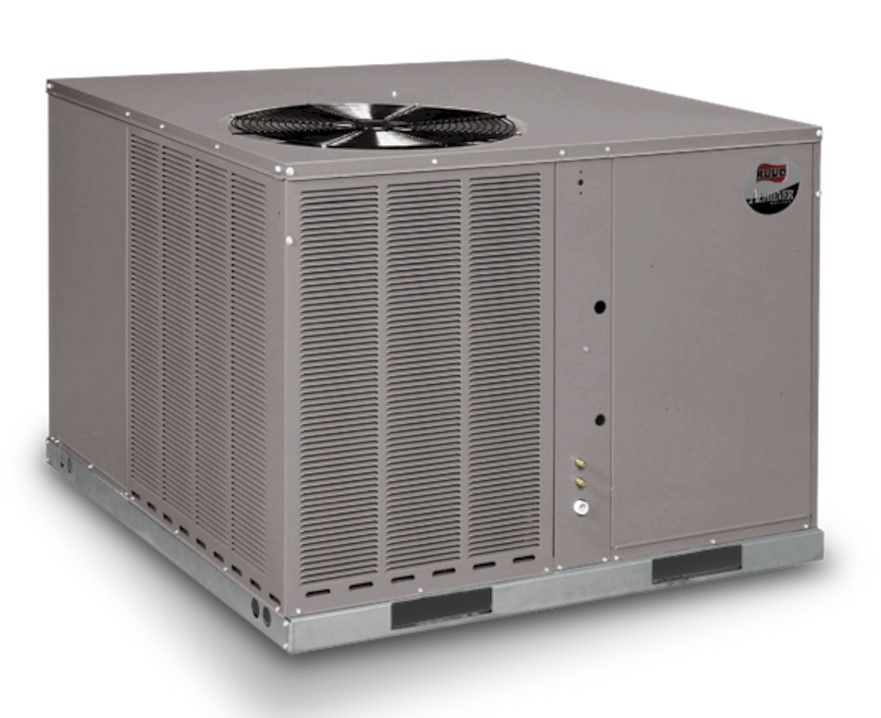

Ruud RACAYB024AJT000NA Endeavor Line Achiever Series Residential Packaged Air Conditioner 2 Ton

Product Description

The Ruud RACAYB024AJT000NA Endeavor Line Achiever Series is a residential packaged air conditioner with a cooling capacity of twenty-two thousand eight hundred BTU per hour. It features an efficient scroll compressor which ensures quiet performance. The MicroChannel evaporator and condenser coil offer excellent heat exchange capabilities for optimal cooling. This unit is factory run tested for reliable operation.

• Scroll compressors provide efficient cooling and quiet operation.
• MicroChannel evaporator and condenser coil enhance performance.
• Accessible control box and slide-out blower simplify installation and maintenance.

Product Highlights

This air conditioner is designed for residential use, delivering effective cooling and easy service access.

Product Information

Standard Information

• Brand: Ruud
• MPN: RACAYB024AJT000NA

Technical Specifications

• Voltage: 208/230 V
• Frequency: 60 Hz
• Outdoor Sound Rating: 77 dB
• Refrigerant Charge: 38 oz
• Minimum Circuit Ampacity: 19
• Minimum Overcurrent Protection Device Size: 25
• Gross Cooling Capacity: 23700 BTU/h
• EER: 10.6
• SEER: 13.4
• Nominal CFM: 800 ft³/min
• AHRI Rated CFM: 810 ft³/min
• Cooling BTU: 22800
• Horsepower: 1/3 hp
• Dimensions: 35.94 in H x 47.59 in W x 50.81 in D
