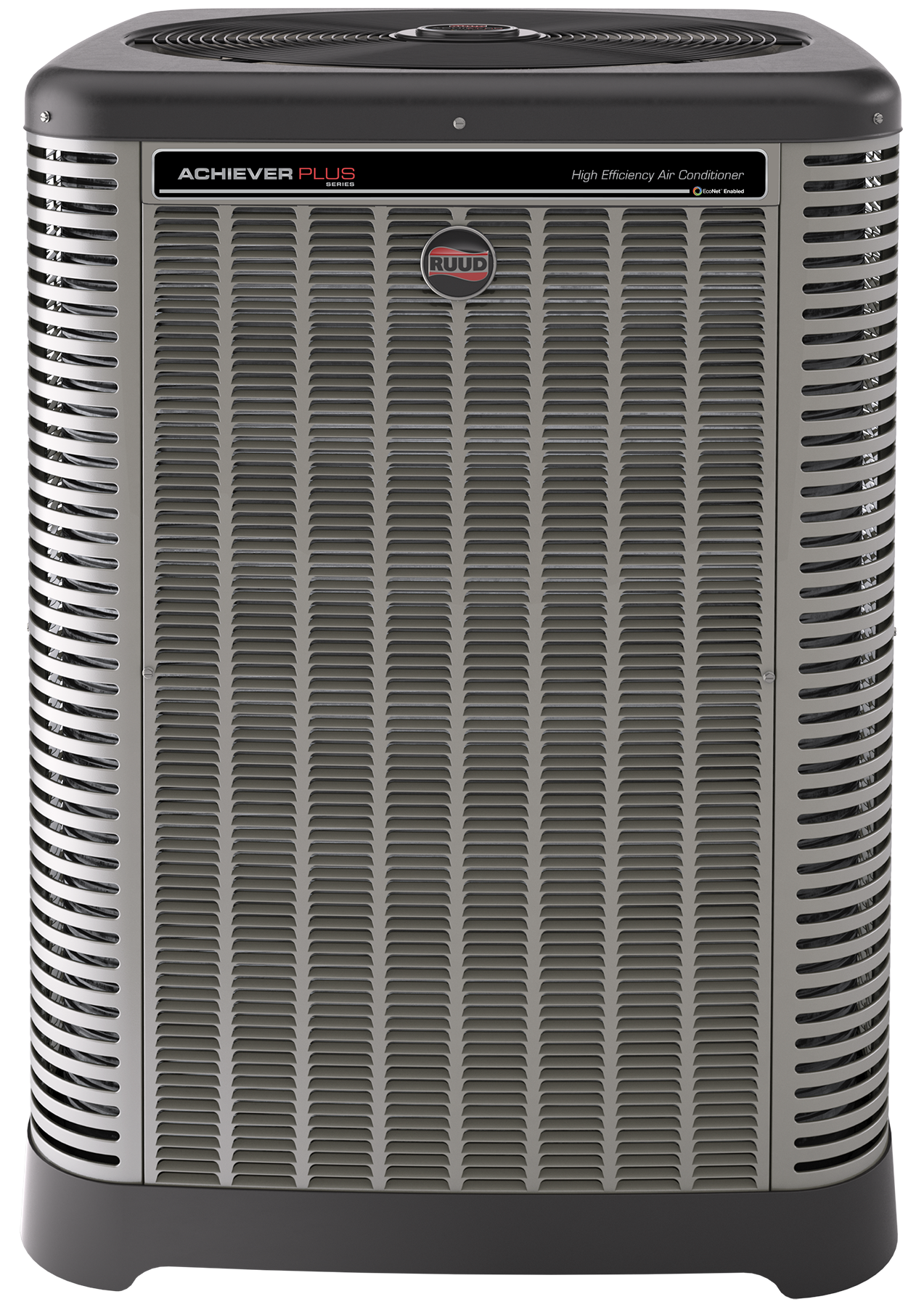

Ruud RA1760AJ2NB Two Stage Air Conditioner 5 Ton REPLACEMENT MPN

Product Description

The RUUD RA1760AJ2NB is a two-stage air conditioner with a 17 SEER rating and a 5-ton capacity, delivering 60,000 BtuH of cooling power, and operates on 208-230 V AC. Features include a composite base pan, a powder coat paint system, and a Two Stage Copeland Scroll™ UltraTech™ Compressor. The unit's modern cabinet aesthetics and curved louver panels provide coil protection.

• New composite base pan dampens sound and eliminates corrosion.
• Two Stage Copeland Scroll™ UltraTech™ Compressor modulates between two capacity settings.
• PlusOne™ Triple Service Access makes repairs easier and faster.

Product Highlights

This RUUD air conditioner offers efficient cooling with enhanced durability and easy service access.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA1760AJ2NB

Technical Specifications

• Type: Two Stage
• Cooling Capacity: 60 Kbtu/hr
• Nominal Capacity: 5 ton
• Series: Classic® Plus
• SEER Rating: 17
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Air Flow Rate: 5133 cfm
• Amperage Rating: 28.8 A
• Circuit Amperage Rating: 42 A
• Compressor Type: Scroll
• Decibel Rating: 76.7
• EER Rating: 13
• Fins per Inch: 22
• Full Load Current: 5.3 A
• Liquid Line Size: 3/8 in
• Locked Rotor Amperage: 152.9 A
• Maximum Breaker Current Rating: 60 A
• Maximum Piping Length: 15 ft
• Motor HP: 1/2 hp
• Motor Speed: Variable
• Number of Blades: 1
• Refrigerant Type: R-410A
• Stages Cool: 2
• Suction Line Size: 7/8 in
• Package Width: 38.38 in
• Package Height: 51 in
• Package Length: 38.38 in
• Item Width: 39.64 in
• Item Length: 39.37 in
• Item Height: 53.56 in
• Manufacturer: Rheem Manufacturing
• Electrical Designation: 1-60-208/230
• Minimum Circuit Breaker: 42
• Rated Load Amperes (RLA): 28.8
• Building Type: Residential
• Refrigerant per Circuit: 223
