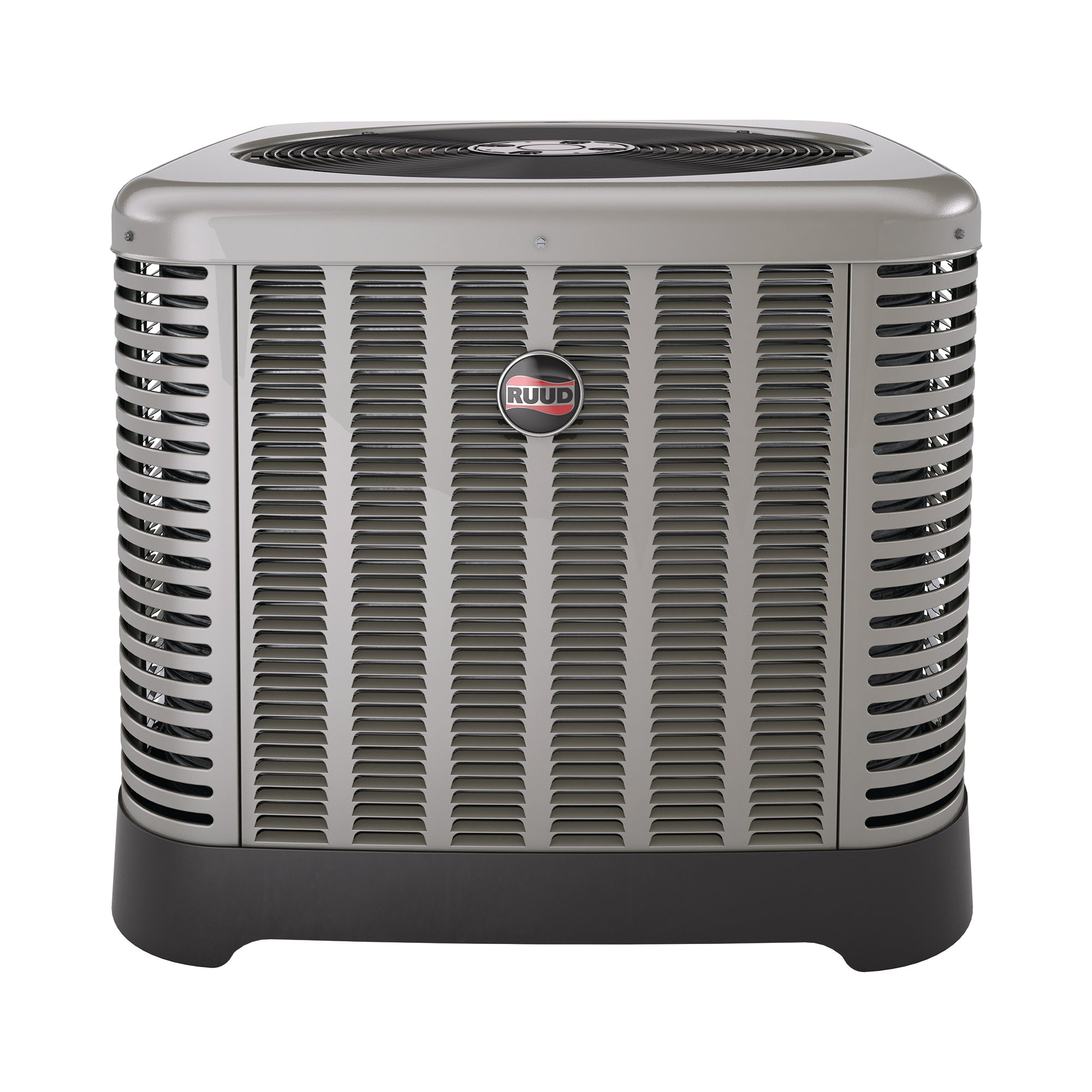

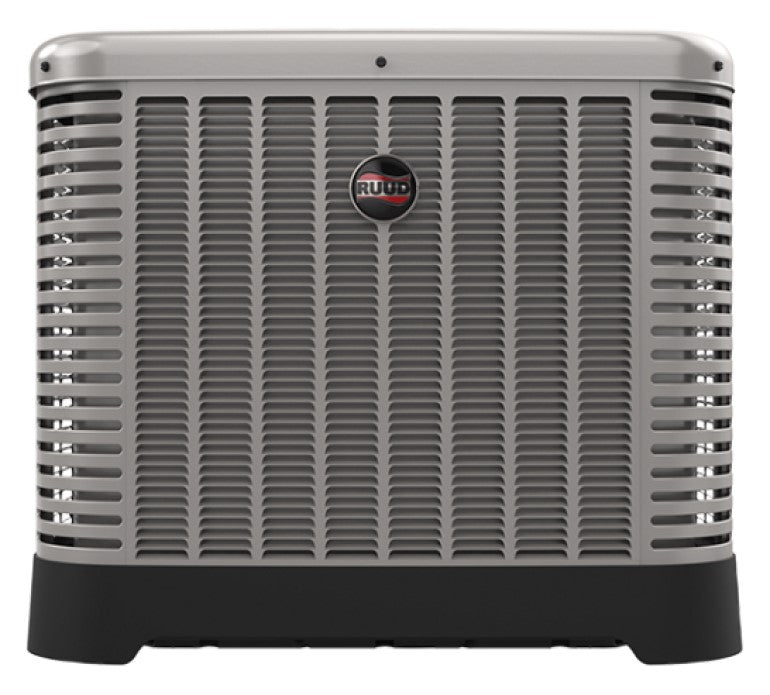

Ruud RA15AY60AJ1NALHP Endeavor Line Achiever Series Air Conditioner 5 Ton

Product Description

The RUUD RA15AY60AJ1NALHP is an Endeavor Line Achiever Series air conditioner with a 5 ton nominal capacity. This single-stage air conditioner features a scroll compressor and utilizes R-454B refrigerant. It operates at 208 to 230 V, 60 Hz, and has a sound level of 76 dB.

• Cooling Capacity: 56000 Btu/hr
• Refrigerant Type: R-454B
• Features PlusOne Triple Service Access for easy repairs

Product Highlights

This RUUD air conditioner provides efficient cooling and reliable performance with its robust design and advanced features.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA15AY60AJ1NALHP
• Country of Origin: USA

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 60000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 192
• Compressor Type: Scroll
• Sound Level: 76 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 50 A
• Minimum Circuit Ampacity: 31 A
• Compressor - Rated Load Amps: 24 A
• Compressor - Locked Rotor Amps: 157 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 27.9 ft²
• Net Face Area - Inner Coil: 27.1 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 4169 ft³/min
• RPM: 850
• Watts: 245 W
• Total Capacity: 56000 Btu/h
• Net Sensible Capacity: 42900 Btu/h
• Net Latent Capacity: 13100 Btu/h
• SEER2: 13.8
• EER2: 11.7
• Indoor CFM: 1575 ft³/min
• Depth: 35.75 in
• Width: 35.75 in
• Height: 45.00 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Application: Condenser SEER2 15+
• Tonnage: 5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Cooling Capacity: 56000 Btu/hr
• EER Rating: 11.7
• Face Area: 27.9 sq-ft
• Fuse Rating: 50 A
• Number of Stages: 1
• Rotational Speed: 850 rpm
• SEER Rating: 13.8
• Series: Classic® Series
• Wattage: 245 W
• Amperage Rating: 31 A
• BTU Rating: 60000 Btu/hr
• HP Rating: 1/5 hp
• Phase: 1 ph
• Model Number (s): RA15AY60AJ1NA
• Brand: Ruud / Rheem
• Cooling Btu: 60,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 76
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Amp(s): 50
• SEER: 15.2
