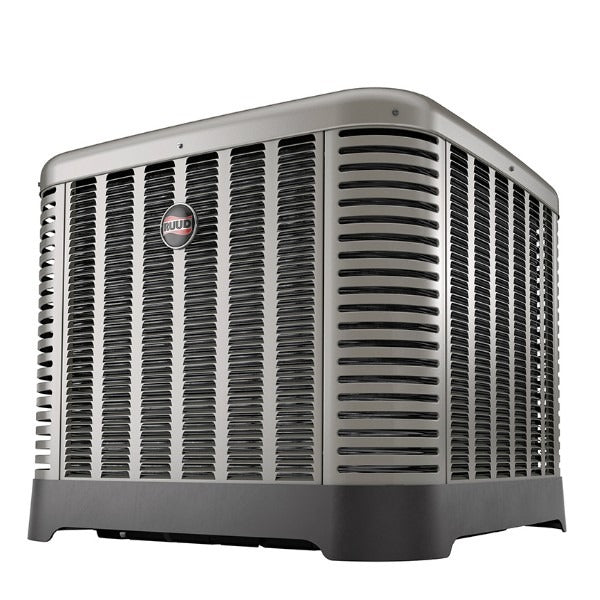

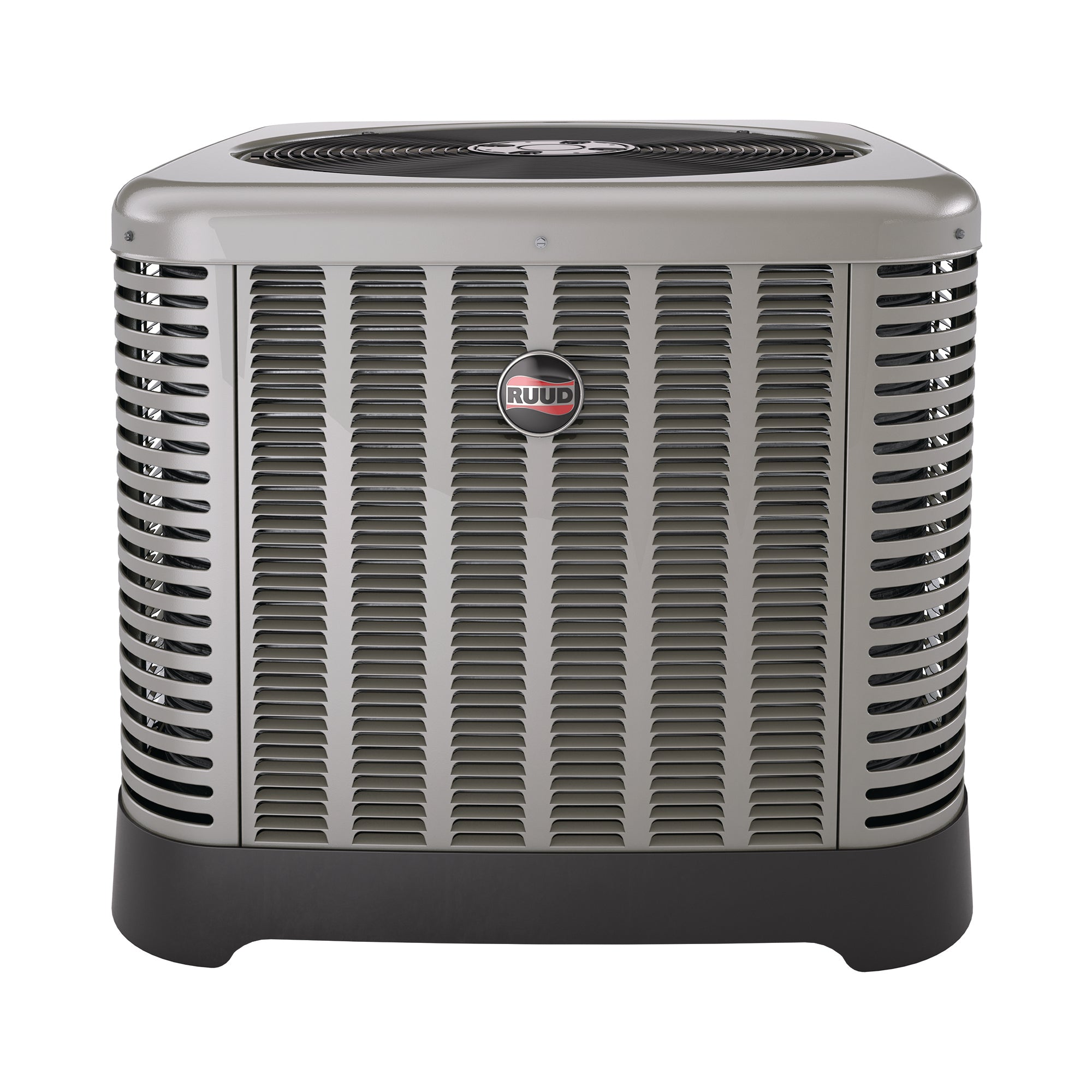

Ruud RA15AY42AJ1NALHP Endeavor Line Achiever Series Air Conditioner 3.5 TR

Product Description

The RUUD RA15AY42AJ1NALHP Endeavor Line Achiever Series Air Conditioner is a 3.5 TR, 15.2 SEER2 single-stage air conditioner designed for efficient cooling. It operates on 208 to 230 V, 60 Hz, and utilizes R-454B refrigerant. The unit features a scroll compressor and operates at a sound level of 73 dB. Designed for sustainability with low GWP.

• 7mm Condenser Copper Coil requires less refrigerant and enhances reliability.
• PlusOne Expanded Valve Space provides easier access for servicing.
• PlusOne Triple Service Access makes repairs easier and faster.

Product Highlights

This RUUD air conditioner offers solid technology and energy-saving performance with quiet operation. Endeavor Series features help fight corrosion, reduce leaks, and enhance overall strength.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA15AY42AJ1NALHP

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 42000 Btu/h
• Nominal Capacity kW: 12.31 kW
• Nominal Capacity TR: 3.5 TR
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 142
• Compressor Type: Scroll
• Sound Level: 73 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 30 A
• Minimum Circuit Ampacity: 20 A
• Compressor - Rated Load Amps: 15 A
• Compressor - Locked Rotor Amps: 109 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 19.5 ft²
• Net Face Area - Inner Coil: 18.8 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 3431 ft³/min
• RPM: 850
• Watts: 225 W
• Total Capacity: 40000 Btu/h
• Total Capacity kW: 11.7 kW
• Net Sensible Capacity: 30700 Btu/h
• Net Sensible Capacity kW: 9 kW
• Net Latent Capacity: 9300 Btu/h
• Net Latent Capacity kW: 2.7 kW
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 1300 ft³/min
• Indoor CFM L/s: 613.5 L/s
• Depth: 33.75 in
• Width: 33.75 in
• Height: 35.00 in
• Shipping Depth: 36.38 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Model Number (s): RA15AY42AJ1NA
• Brand: Ruud / Rheem
• Ton: 3.5 Ton
• SEER: 15.2
• Cooling Btu: 42,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 73
• Amp(s): 30
