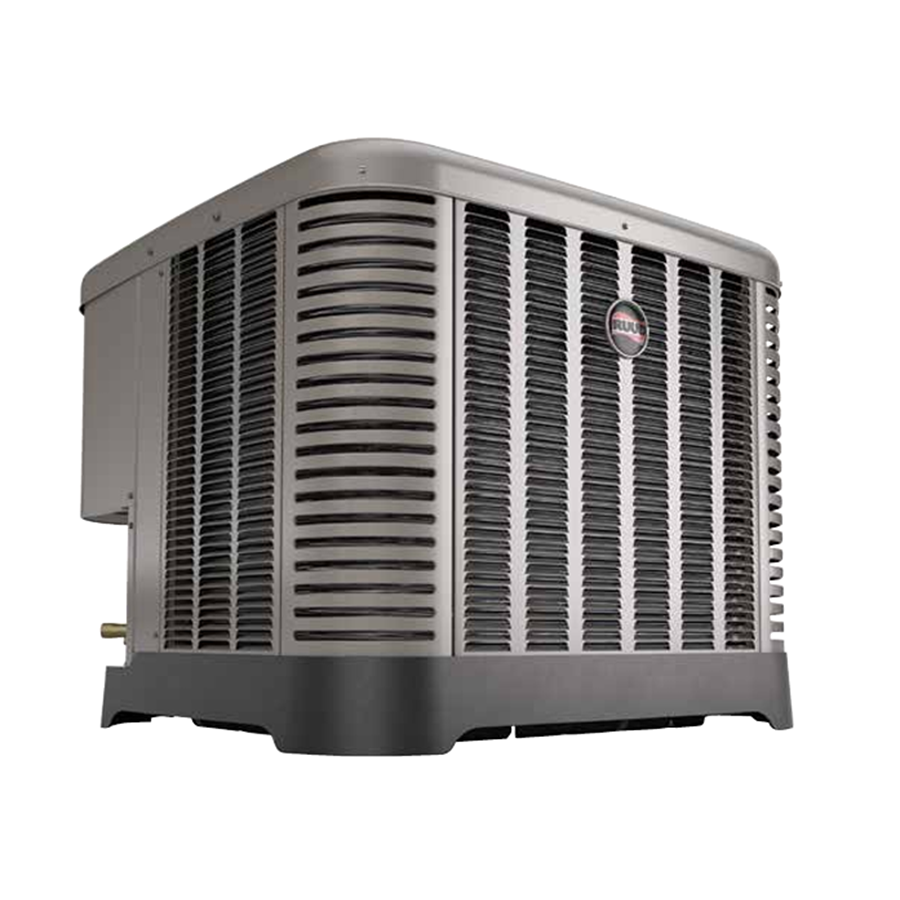

Ruud RA15AY36AJ1NALHP Condensing Unit 3 Ton R454B 15 SEER2

Product Description

The RUUD RA15AY36AJ1NALHP is a 3-ton residential air-cooled condensing unit rated at 36,000 BTU/h of cooling capacity. Operating on R454B refrigerant, this unit is designed to meet the current SEER2 efficiency standards at a 15 SEER2 rating. It functions as the outdoor section of a split-system cooling or heat pump configuration, rejecting heat absorbed indoors to the outside air. Licensed HVAC technicians install and service this equipment. The M1 series designation identifies the product family line within the RUUD condensing unit lineup.

This condensing unit is suited for residential split-system air conditioning applications requiring a 3-ton capacity. It is intended for use with a compatible indoor air handler or coil section to form a complete split system. The R454B refrigerant charge requires certified EPA Section 608 technicians for any service involving the refrigerant circuit. This unit is appropriate for new construction and replacement installations in single-family and light commercial residential settings.

Key Features

• 36,000 BTU/h nominal cooling capacity for 3-ton system applications
• R454B refrigerant — a lower global-warming-potential alternative to legacy refrigerants
• 15 SEER2 efficiency rating compliant with current regional efficiency standards
• M1 series platform for consistent RUUD system pairing and matchup requirements

Compatibility

Designed as an OEM-style outdoor condensing unit for use in residential split-system cooling configurations. Pairing with a compatible indoor coil or air handler is required to complete the system. Consult RUUD system matchup documentation to confirm approved indoor unit combinations for SEER2 compliance.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Disconnect and lock out all electrical power before servicing the unit. The refrigerant circuit uses R454B, which requires dedicated recovery equipment rated for A2L refrigerants — do not use equipment designated for legacy refrigerants only. Follow all local mechanical codes and manufacturer installation instructions for clearances, mounting, and line set sizing.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h
• Nominal Tonnage: 3 tons
• Refrigerant: R454B
• Efficiency Rating: 15 SEER2
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA15AY36AJ1NALHP
