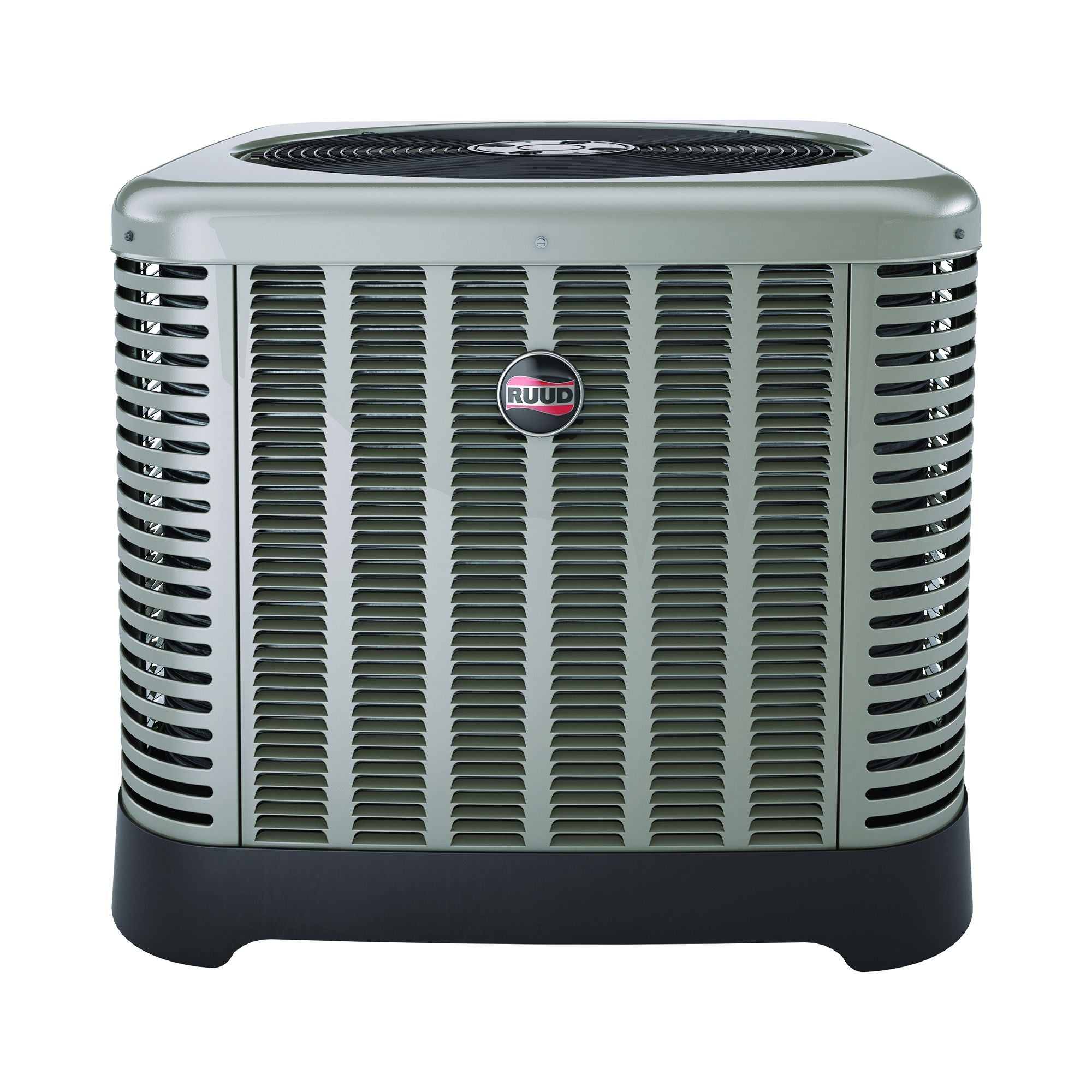

Ruud RA15AY30AJ1NA Endeavor Line Achiever Series Air Conditioner 30000 Btu/h

Product Description

The Ruud RA15AY30AJ1NA Endeavor Line Achiever Series Air Conditioner is a reliable cooling solution with a capacity of 30000 Btu/h. This unit features a scroll compressor and operates efficiently at a voltage range of 208 to 230 V. Designed for residential or commercial spaces, this air conditioner ensures effective cooling performance.

• Type: Air Conditioner
• Nominal Capacity: 30000 Btu/h
• Refrigerant Type: R-454B

Product Highlights

This air conditioner offers a cooling efficiency of 16 SEER2 and a sound level of 71 dB, making it suitable for various environments.

Product Information

Standard Information

• Voltage: 208 to 230 V
• Refrigerant Furnished: 92 oz.

Technical Specifications

• Compressor Type: Scroll
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 25 A
• Minimum Circuit Ampacity: 17 A
• Rated Load Amps: 13 A
• Locked Rotor Amps: 76 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Net Face Area - Outer Coil: 14.3 ft²
