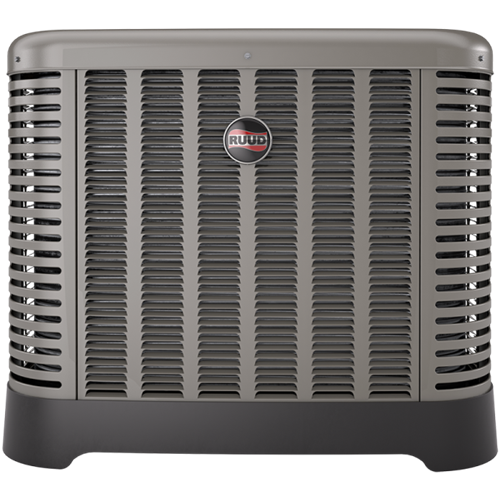

Ruud RA14AY60AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner 5 Ton

Product Description

The RUUD RA14AY60AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner is a 5 ton single-stage air conditioner with high/low pressure and operates at 208/230V. Designed for sustainability with low GWP, this air conditioner uses R-454B refrigerant and features a scroll compressor. The unit operates at a sound level of 76 dB.

• Features a 7mm Condenser Copper Coil that requires less refrigerant.
• Equipped with Swept Wing Fan Technology for quieter operation and improved unit acoustics.
• Includes PlusOne® Triple Service Access for easier and faster repairs.

Product Highlights

This RUUD air conditioner offers efficient cooling and easier maintenance with its innovative design and sustainable refrigerant use.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA14AY60AJ1NALHP

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 60000 Btu/h
• Nominal Capacity kW: 17.58 kW
• Nominal Capacity TR: 5 TR
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 192
• Compressor Type: Scroll
• Sound Level: 76 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 50 A
• Minimum Circuit Ampacity: 31 A
• Compressor - Rated Load Amps: 24 A
• Compressor - Locked Rotor Amps: 157 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 27.9 ft²
• Net Face Area - Inner Coil: 27.1 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 4169 ft³/min
• RPM: 850
• Watts: 245 W
• Total Capacity: 56000 Btu/h
• Total Capacity kW: 16.4 kW
• Net Sensible Capacity: 42900 Btu/h
• Net Sensible Capacity kW: 12.6 kW
• Net Latent Capacity: 13100 Btu/h
• Net Latent Capacity kW: 3.8 kW
• SEER2: 13.8
• EER2: 11.7
• Indoor CFM: 1575 ft³/min
• Indoor CFM L/s: 743.3 L/s
• Depth: 35.75 in
• Width: 35.75 in
• Height: 45.00 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Application: Condenser SEER2 14+
• Tonnage: 5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• STANDARD RATING (DBA): 76
• Communication: Non-Communicating
• Capacity BTU/HR: 60,000
