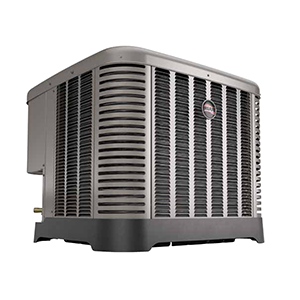

Ruud RA14AY42AJ1NALHP Ra14ay42aj1na Air Conditioner 42000 Btu/hr

Product Description

The Ruud RA14AY42AJ1NALHP is an A2L air conditioner operating at 208-230 V with a cooling capacity of 42000 Btu/hr and 3.5 ton nominal capacity. It features a scroll compressor, 3431 cfm, and operates at 60 Hz. Designed with sustainability in mind, it uses R-454B refrigerant and includes a refrigerant detection system.

• 7mm Condenser Copper Coil requires less refrigerant and allows for a smaller footprint.
• Swept Wing Fan Technology provides quieter operation and improved unit acoustics.
• PlusOne Triple Service Access offers industry-leading corner service access for faster repairs.

Product Highlights

This Ruud air conditioner combines efficient cooling with sustainable design, ensuring reliable performance and easy maintenance.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA14AY42AJ1NALHP

Technical Specifications

• CFM Rating: 3431 cfm
• Compressor Type: Scroll
• Cooling Capacity: 40000 Btu/hr
• EER Rating: 11.7
• Fins per Inch: 24 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• Nominal Capacity: 3.5 ton
• Number of Stages: 1
• SEER Rating: 14.3
• Series: Classic� Series
• Sound Level: 73 dB
• Voltage Rating: 208-230 V
• Amperage Rating: 20 A
• BTU Rating: 42000 Btu/hr
• HP Rating: 1/5 hp
• Phase: 1 ph
• Refrigerant Type: R-454B
• Application: Condenser SEER2 14+
• Tonnage: 3.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Maximum overcurrent protection (amps): 30
• Communication: Non-Communicating
• Capacity BTU/HR: 42,000
• Standard Rating (DBA): 73
• Liquid Line O.D. ��� in.: 3/8
• Suction Line O.D. ��� in.: 7/8
• SEER2: 14.3
• Product Type: Condenser
• Operating Mode: Cool Only
