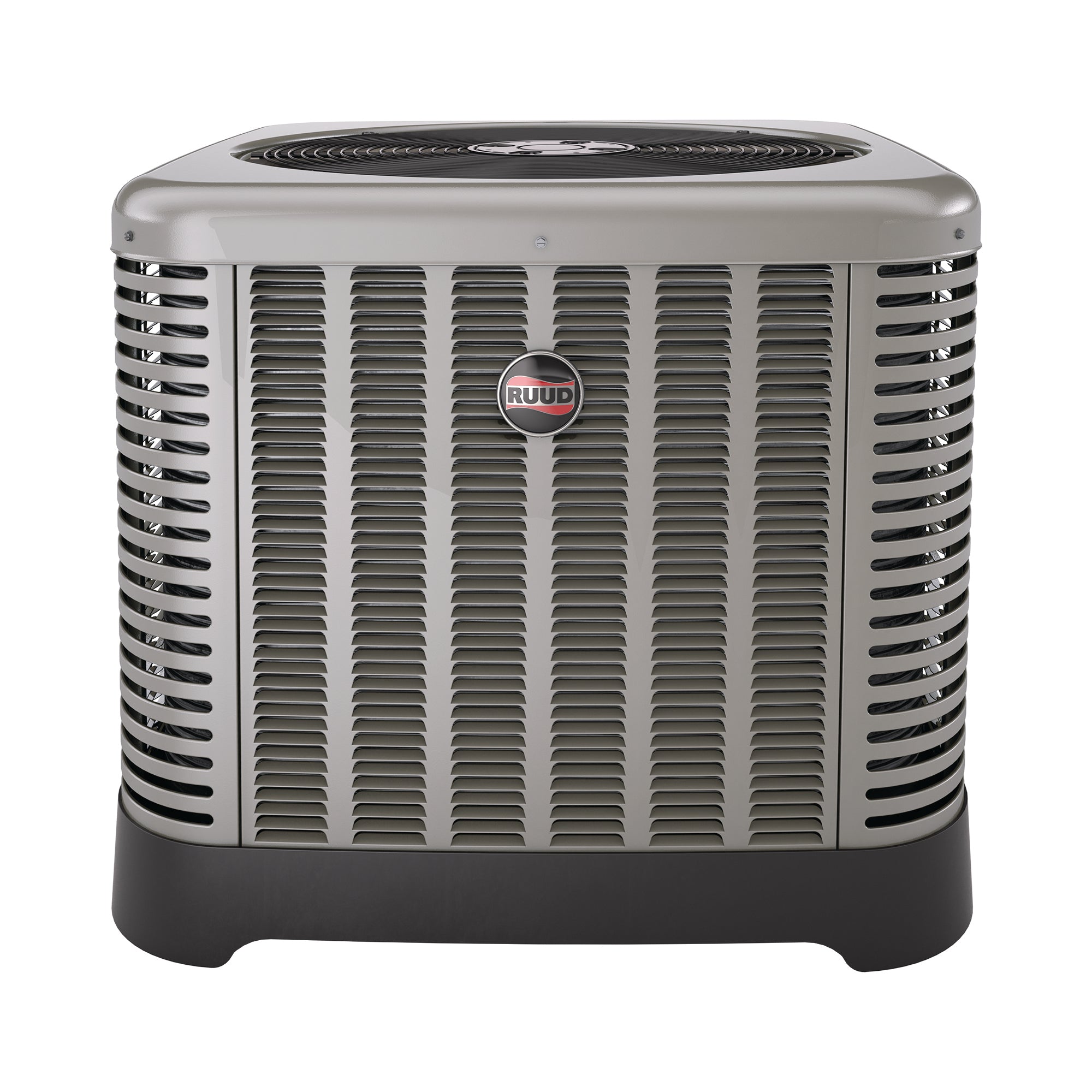

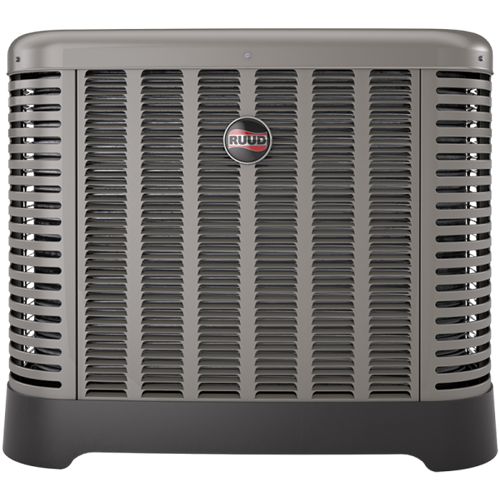

Ruud RA14AY36AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner 3 ton

Product Description

The RUUD RA14AY36AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner is a 3-ton single-stage air conditioner with high/low pressure and a SEER2 rating of 14.3. It operates on 208/230V, 1 phase, and 60 Hz power. The unit features a scroll compressor and uses R-454B refrigerant. It also includes a 7mm condenser copper coil and swept wing fan technology.

• 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels — makes repairs easier and faster

Product Highlights

This RUUD air conditioner provides efficient cooling with advanced features for easy maintenance and reliable performance.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA14AY36AJ1NALHP

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 3 ton
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 116
• Compressor Type: Scroll
• Sound Level: 71 dBA
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 30 A
• Minimum Circuit Ampacity: 18 A
• Compressor - Rated Load Amps: 14 A
• Compressor - Locked Rotor Amps: 75 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.7 A
• Net Face Area - Outer Coil: 13.3 ft²
• Net Face Area - Inner Coil: 12.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 2
• Motor HP: 1/6 hp
• CFM: 2760 ft³/min
• RPM: 825
• Watts: 188 W
• Total Capacity: 33600 Btu/h
• Net Sensible Capacity: 25200 Btu/h
• Net Latent Capacity: 8400 Btu/h
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 1030 ft³/min
• Depth: 33.75 in
• Width: 33.75 in
• Height: 25.00 in
• Shipping Depth: 36.38 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Application: Condenser SEER2 14+
• Tonnage: 3
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Communication: Non-Communicating
• Capacity BTU/HR: 36,000
• STANDARD RATING (DBA): 71
• Length (inches): 33.75
• Model Number (s): RA14AY36AJ1NA
• Brand: RUUD
• Cooling Btu: 36,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Category: Condensers
• Series: RA14AY Line Achiever® Series
• Cooling Capacity: 33600 Btu/hr
• BTU Rating: 36000 Btu/hr
• Voltage Rating: 208/230 V
• Amperage Rating: 18 A
• Wattage: 10.55 kW
• Rotational Speed: 825 rpm
• Phase: 1 ph
• CFM Rating: 1030 cfm
• EER Rating: 11.7
• SEER Rating: 14.3
• Number of Stages: 1
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Coil Rating: 13.3 sq-ft
• Fuse Rating: 30 A
• Base Size: 33-3/4 in W x 33-3/4 in D
• Material: Steel
• Finish: Powder-Coated
• Additional Information: Non-Communicating Controls
