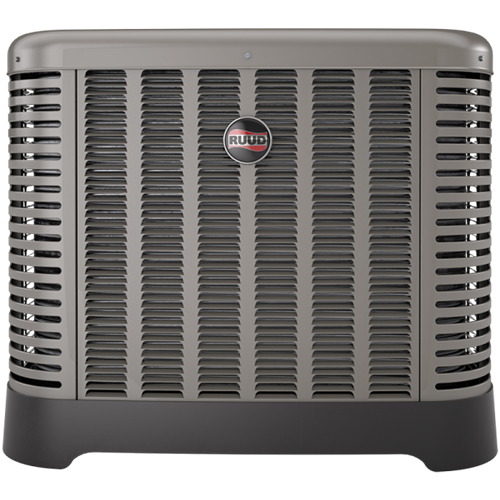

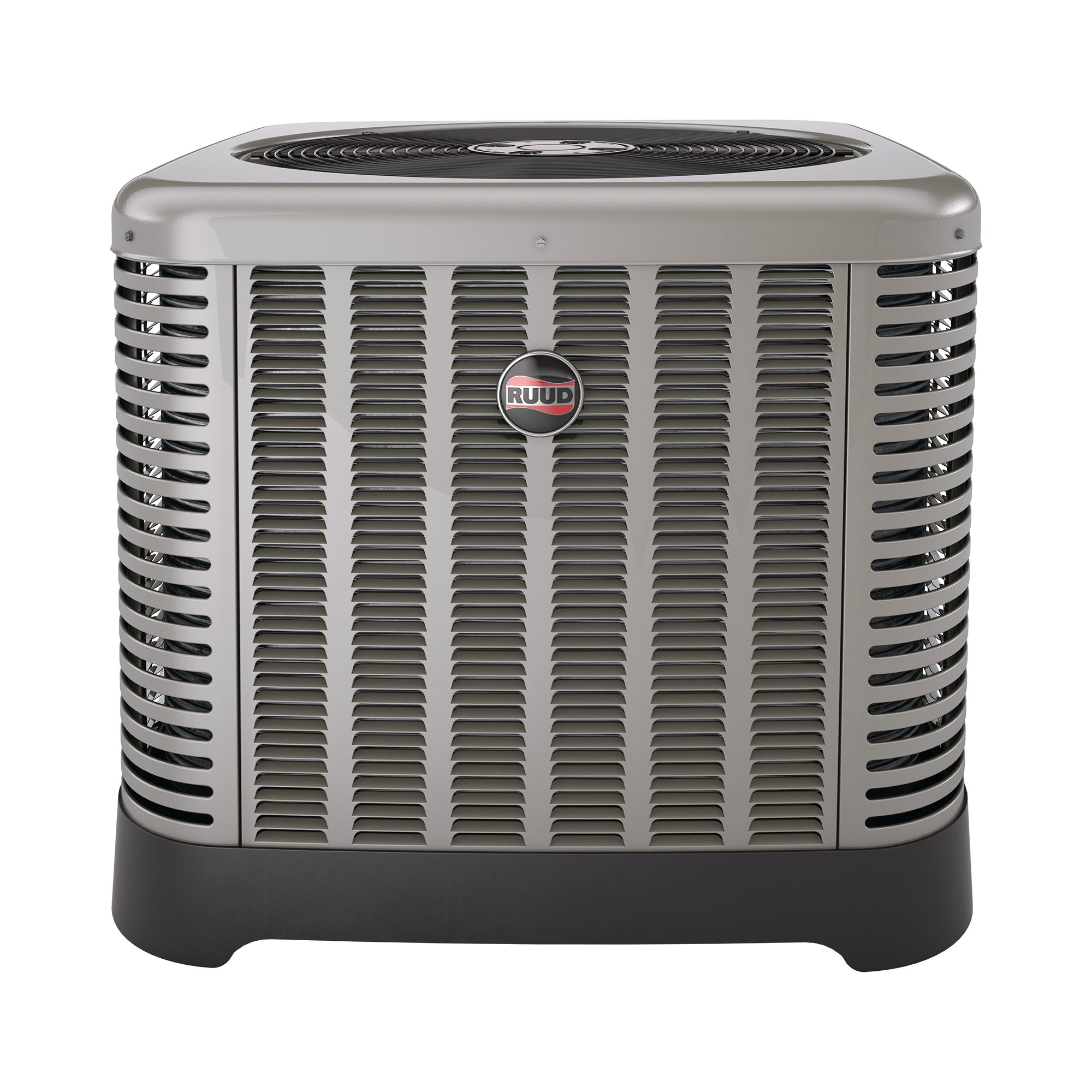

Ruud RA14AY30AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner 30000 Btu/h

Product Description

The RUUD RA14AY30AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner is a 2 1/2 ton single-stage air conditioner with high/low pressure and operates at 208/230V. It features a 7mm condenser copper coil, swept wing fan technology for quieter operation, and PlusOne® triple service access for easier repairs. Designed for sustainability with low GWP, it also includes the PlusOne® refrigerant detection system.

• 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels — makes repairs easier and faster

Product Highlights

This RUUD air conditioner provides efficient cooling with innovative features for easy maintenance and environmental sustainability.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA14AY30AJ1NALHP

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 30000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 112
• Compressor Type: Scroll
• Sound Level: 71 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 25 A
• Minimum Circuit Ampacity: 17 A
• Compressor - Rated Load Amps: 13 A
• Compressor - Locked Rotor Amps: 78 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 13.3 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/6 hp
• CFM: 3146 ft³/min
• RPM: 825
• Watts: 197 W
• Total Capacity: 28600 Btu/h
• Net Sensible Capacity: 21800 Btu/h
• Net Latent Capacity: 6800 Btu/h
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 910 ft³/min
• Depth: 33.75 in
• Width: 33.75 in
• Height: 25.00 in
• Shipping Depth: 36.38 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Application: Condenser SEER2 14+
• Tonnage: 2.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Communication: Non-Communicating
• Capacity BTU/HR: 30,000
• STANDARD RATING (DBA): 71
• Length (inches): 33.75
• Model Number (s): RA14AY30AJ1NA
• Brand: Ruud / Rheem
• Cooling Btu: 30,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Category: Condensers
