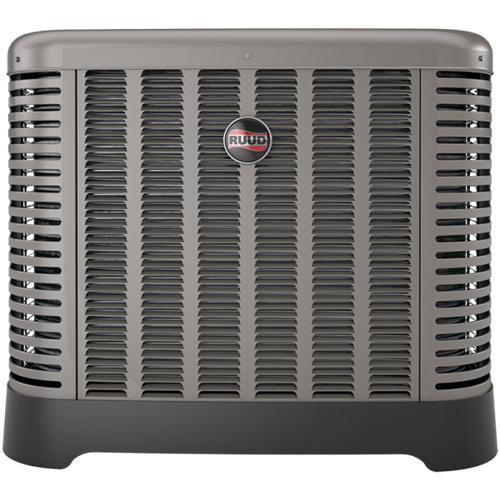

Ruud RA14AY18AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner 1.5 TR

Product Description

The RUUD RA14AY18AJ1NALHP Endeavor® Line Achiever® Series Air Conditioner is a 1.5 TR single-stage air conditioner. It features a 7mm condenser copper coil that requires less refrigerant. The unit operates at 208 to 230 V, 60 Hz, and uses R-454B refrigerant. The compressor is a scroll type, and the unit has a sound level of 70 dB.

• 7mm Condenser Copper Coil requires less refrigerant
• Swept Wing Fan Technology allows for quieter operation
• PlusOne® Triple Service Access makes repairs easier and faster

Product Highlights

This RUUD air conditioner provides efficient cooling with a focus on sustainability and ease of service.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA14AY18AJ1NALHP

Technical Specifications

• Type: Air Conditioner
• Nominal Capacity: 18000 Btu/h
• Nominal Capacity kW: 5.28 kW
• Nominal Capacity TR: 1.5 TR
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 97
• Compressor Type: Scroll
• Sound Level: 70 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 15 A
• Minimum Circuit Ampacity: 12 A
• Compressor - Rated Load Amps: 8 A
• Compressor - Locked Rotor Amps: 47 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 10.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 24 FPI
• Outdoor Fan Diameter: 20 in
• Number of Blades: 2
• Motor HP: 1/7 hp
• CFM: 1765 ft³/min
• RPM: 1075
• Watts: 154 W
• Total Capacity: 17100 Btu/h
• Total Capacity kW: 5.0 kW
• Net Sensible Capacity: 13100 Btu/h
• Net Sensible Capacity kW: 3.8 kW
• Net Latent Capacity: 4000 Btu/h
• Net Latent Capacity kW: 1.2 kW
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 600 ft³/min
• Indoor CFM L/s: 283.2 L/s
• Depth: 29.75 in
• Width: 29.75 in
• Height: 25.00 in
• Shipping Depth: 32.38 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Application: Condenser SEER2 14+
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Communication: Non-Communicating
• Capacity BTU/HR: 18,000
• Standard Rating (DBA): 70
• Series: RA14AY Line Achiever® Series
• Nominal Capacity (ton): 1.5 ton
• Cooling Capacity: 17100 Btu/hr
• BTU Rating: 18000 Btu/hr
• Voltage Rating: 208/230 V
• Amperage Rating: 12 A
• Wattage: 5.28 kW
• HP Rating: 1/7 hp
• Rotational Speed: 1075 rpm
• Phase: 1 ph
• CFM Rating: 600 cfm
• EER Rating: 11.7
• SEER Rating: 14.3
• Number of Stages: 1
• Sound Level (dBA): 70 dBA
• Coil Rating: 10.9 sq-ft
• Fuse Rating: 15 A
• Base Size: 29-3/4 in W x 29-3/4 in D
• Material: Steel
• Finish: Powder-Coated
• Dimensions: 25 in H x 29-3/4 in W x 29-3/4 in D
• Additional Information: Non-Communicating Controls
